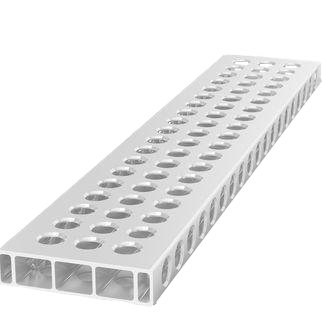

4-AR16014050.V: 500x100mmx24mm Aluminum Profile Bracket

4-AR16014050.V: 500x100mmx24mm Aluminum Profile Bracket

  • Product SKU: 4-AR16014050.V
Availability: In Stock
$36 $44
Successful pre-order.Thanks for contacting us!

For System 16 Metric Welding Tables, Whether as table extension or as vertical clamping surface, The Siegmund 4-AR16014050.V: 500x100mmx24mm Aluminum Profile Bracket For System 16 Metric Series Welding Tables are versatile in their application.

Thanks to the lightweight, you can also easily position and clamp large aluminum profiles by hand.

Due to the manufacturing process, residual chippings can remain in the profiles.

‐ Stable stop due to large dimensions.
‐ Version with a full grid with many clamping options.
‐ Version with elongated hole: Variable clamping is also possible at an angle.
‐ Requires Clamping Bolt without slot Triple
‐ from 1000 mm support through table leg required

Specs and Features:
- Length: 500mm (19.69")
- Width: 100mm (3.94")
- Height: 24mm (.95")
- Weight: 1.65 Ibs


QUESTIONS & ANSWERS

Ask a Question
  • Are the holes 5/8 " ???

    Yes, the holes are 16mm or 5/8".
