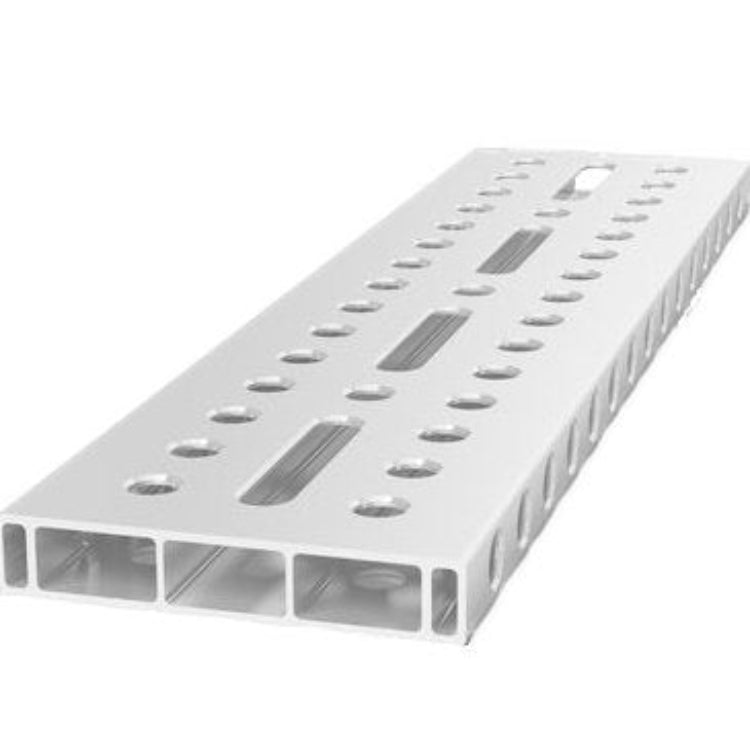

The Siegmund 800x200x36mm Aluminum Profile Bracket with Elongated Hole provides an ideal combination of lightweight design, stability, and adjustability for modular welding and assembly setups. Designed for the Siegmund System 22, it features both a full hole grid and elongated slot to allow precise, variable clamping at any angle.
- Made from corrosion-resistant aluminum for long-lasting performance.
- Lightweight yet strong for quick manual setup and repositioning.
- Full bore grid offers flexible clamping and connection options.
- Elongated hole enables angled or adjustable fixturing applications.
- Suitable for use as a table extension or vertical clamping bracket.
- Compatible with Siegmund System 22 accessories and hardware.
Key Features:
- Lightweight construction allows effortless handling and fast adjustments.
- Elongated slot supports variable and angular clamping configurations.
- Corrosion-resistant aluminum ensures smooth, long-term operation.
- Full hole grid enhances flexibility for modular setups.
- Provides stable, repeatable alignment for vertical or horizontal use.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 800mm (31.50" Inches)
- Width: 200mm (7.87" Inches)
- Height: 36mm (1.42" Inches)
- Material: Aluminum
- Weight: 8.82 lbs. (4 kg.)
Common Uses:
The Siegmund 4-AR22014080.VL 800x200x36mm Aluminum Profile Bracket with Elongated Hole is used for adjustable and angular clamping applications. Its combination of a precision-machined grid and elongated slot makes it ideal for quick reconfiguration of modular fixtures, vertical setups, or table extensions in light fabrication, inspection, and assembly environments.
