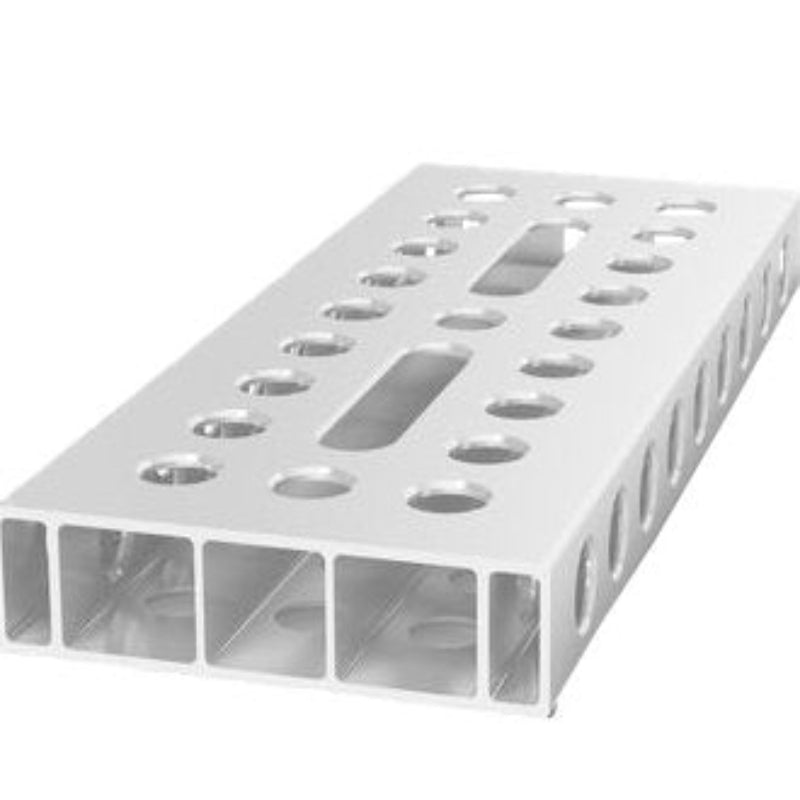

The Aluminum Profile Bracket with elongated hole combines lightweight handling with versatile clamping options for Siegmund System 28 setups. Its design allows variable clamping angles while maintaining stability across both table extensions and vertical surfaces.
- Measures 500x200x50mm (19.69"x7.87"x1.97" Inches) for flexible applications.
- Elongated hole design enables adjustable clamping positions and angles.
- Lightweight aluminum construction allows easy manual handling.
- Full grid layout expands clamping capacity with Siegmund accessories.
- Durable structure ensures stable and precise fixture setups.
- Provides long-lasting performance when protected with anti-spatter spray.
Key Features:
- Elongated hole supports variable clamping at different angles.
- Aluminum construction for lightweight, efficient handling.
- Full hole grid maximizes clamping versatility.
- Compatible with Siegmund System 28 Metric Series.
- Strong and reliable support for fabrication and welding tasks.
Specifications:
- Series: Siegmund System 28 Metric Series
- Item No.: 4-AR28014050.VL
- Length: 500mm (19.69" Inches)
- Width: 200mm (7.87" Inches)
- Height: 50mm (1.97" Inches)
- Weight: 5.93 lbs. (2.69 kg.)
- Material: Aluminum
Common Uses:
This aluminum profile bracket with elongated hole provides flexible clamping setups in Siegmund System 28 applications. It is used to create angled or variable clamping configurations while also serving as a reliable extension or vertical support. Fabricators rely on it to improve fixture adaptability and precision in welding and fabrication environments.
