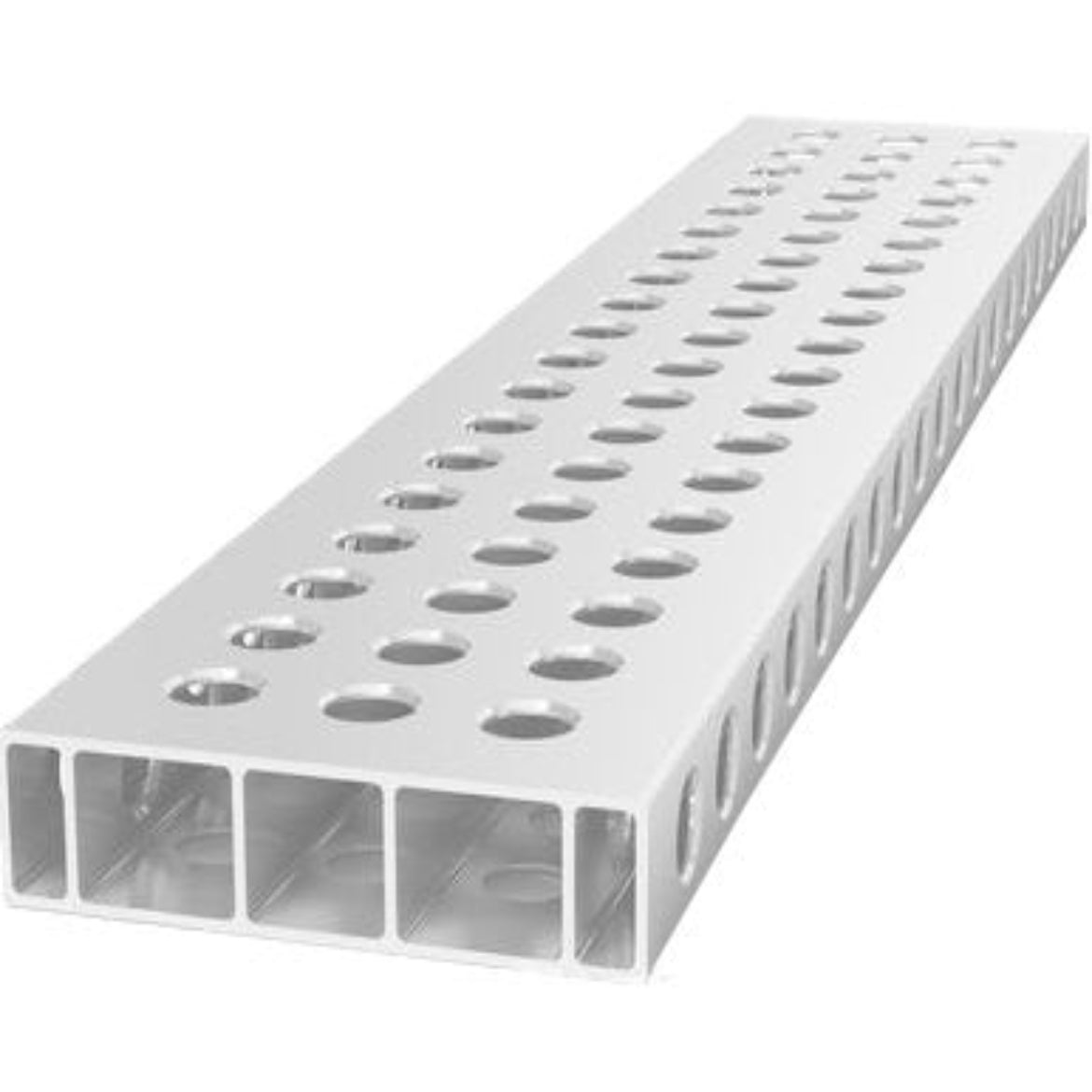

4-AR28014120.V: 1200x200x50 Aluminum Profile Bracket
- Product SKU: 4-AR28014120.V
- Category: System 28mm Metric Series Welding Tables and Fixturing Accessories
For System 28 Metric Series Welding Tables

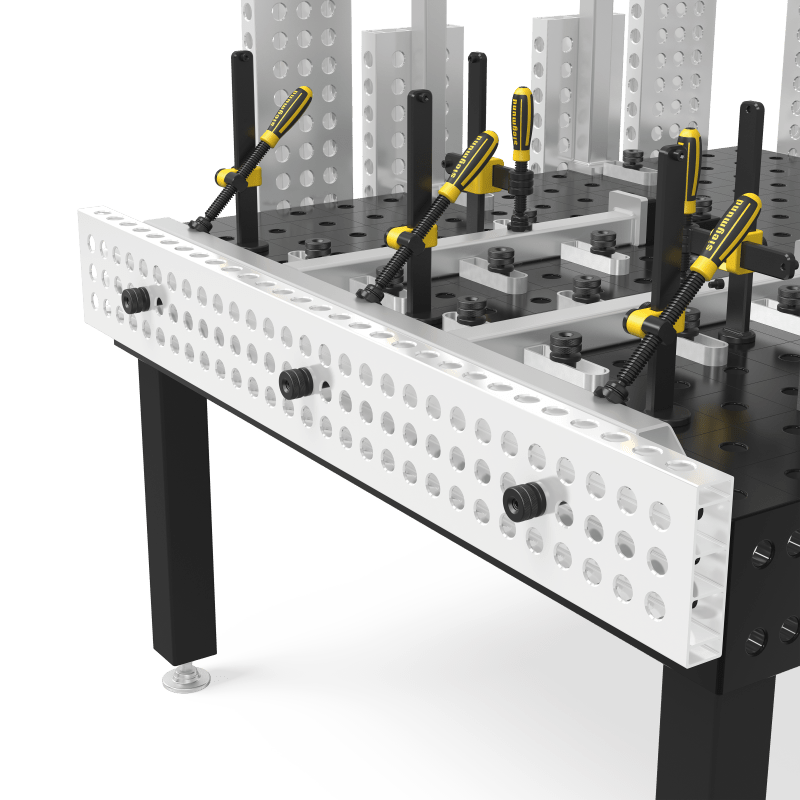

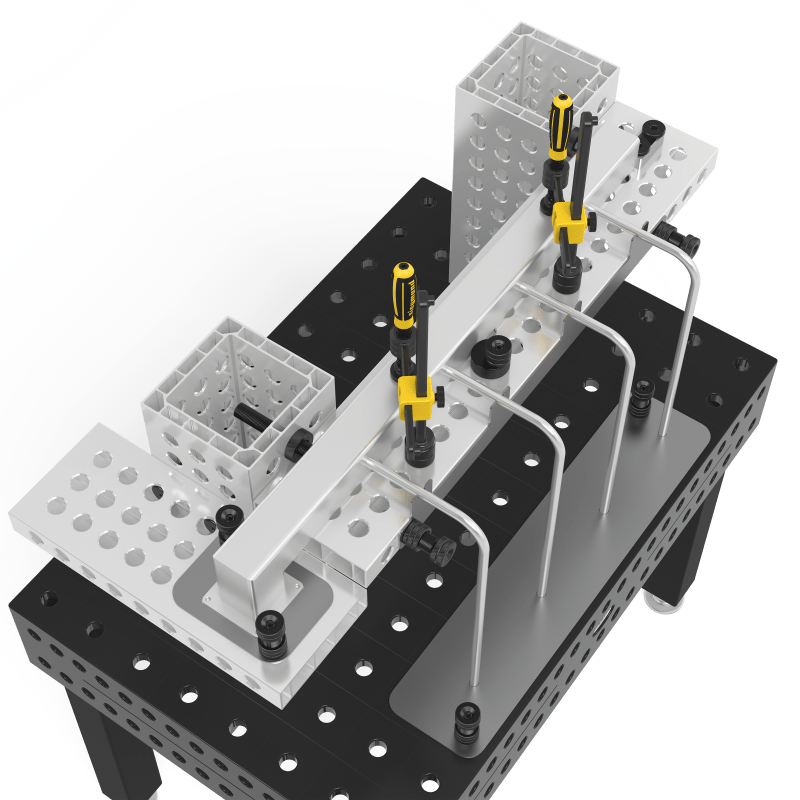

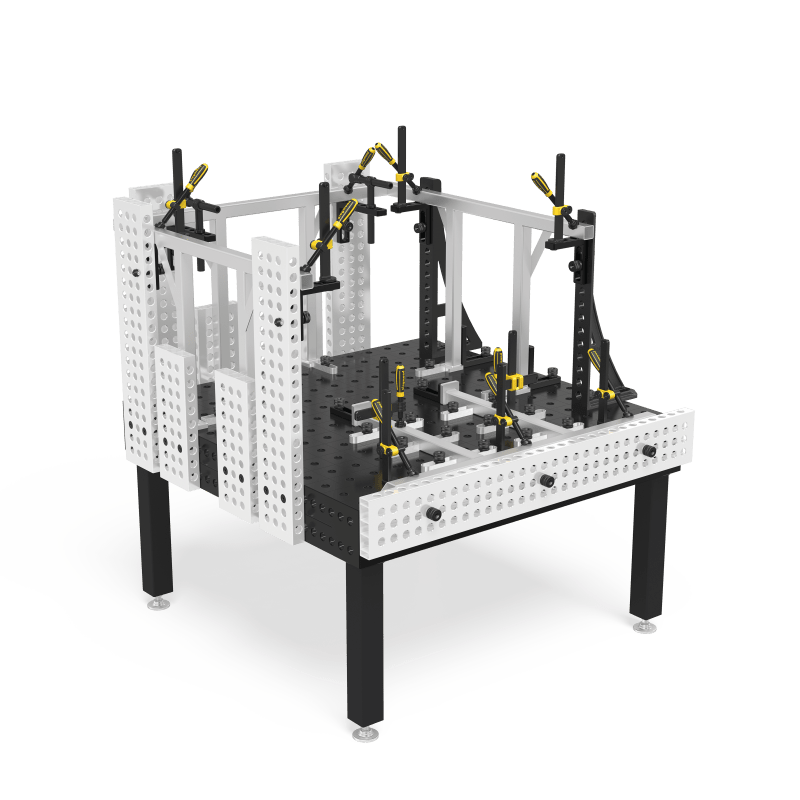

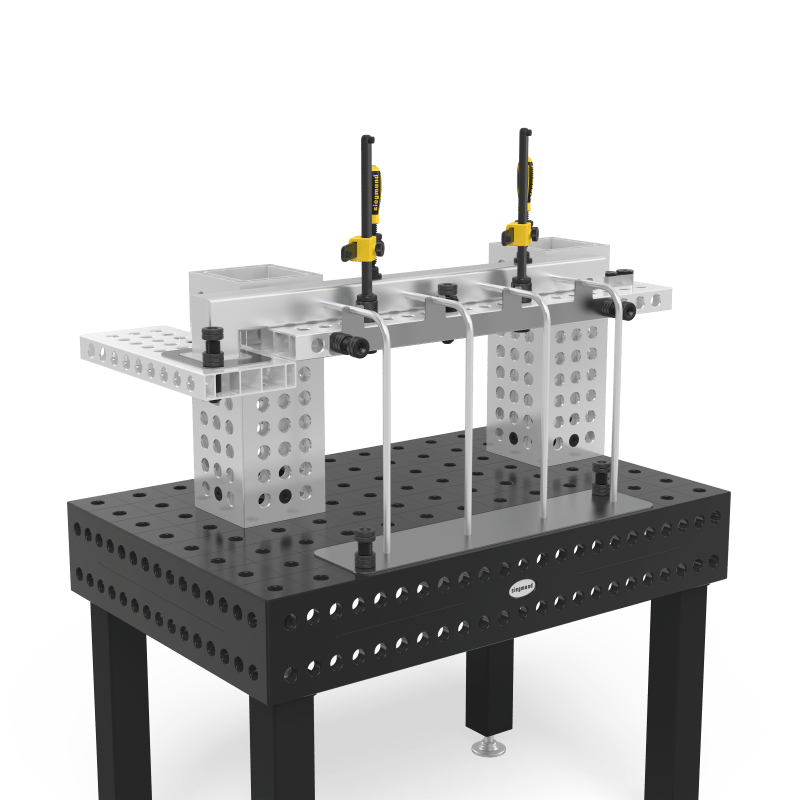

Whether as table extension or as vertical clamping surface, The Siegmund 1200x200x50 Aluminum Profile Bracket For System 28 Metric Series Welding Tables are versatile in their application.
Thanks to the light weight, you can also easily position and clamp large aluminum profiles by hand.
Due to the manufacturing process, residual chippings can remain in the profiles.
Thanks to their properties, aluminum profiles are well suited as clamping tools, though depending on their usage they are subjects to wear.
Products made of aluminum are well suited for tacking your welding assemblies.
While welding we recommend to cover or, if possible, remove the aluminum profiles.
To assure a prolonged service life of your aluminum profiles, we recommend the use of an anti-spatter spray (e.g. Siegmund anti-spatter spray).
Occasionally adhered weld spatters can be removed by grinding.
Despite all precautions, it is possible that iron residues remain in the aluminum.
We recommend separating the production into work areas for rusting and non-rusting materials.
Specs and Features:
- Item No. 4-AR28014120.V
- Stable Stop Due To Large Dimensions.
- Version With Full Grid With Many Clamping Options.
- Version With Elongated Hole: Variable Clamping Also Possible At An Angle.

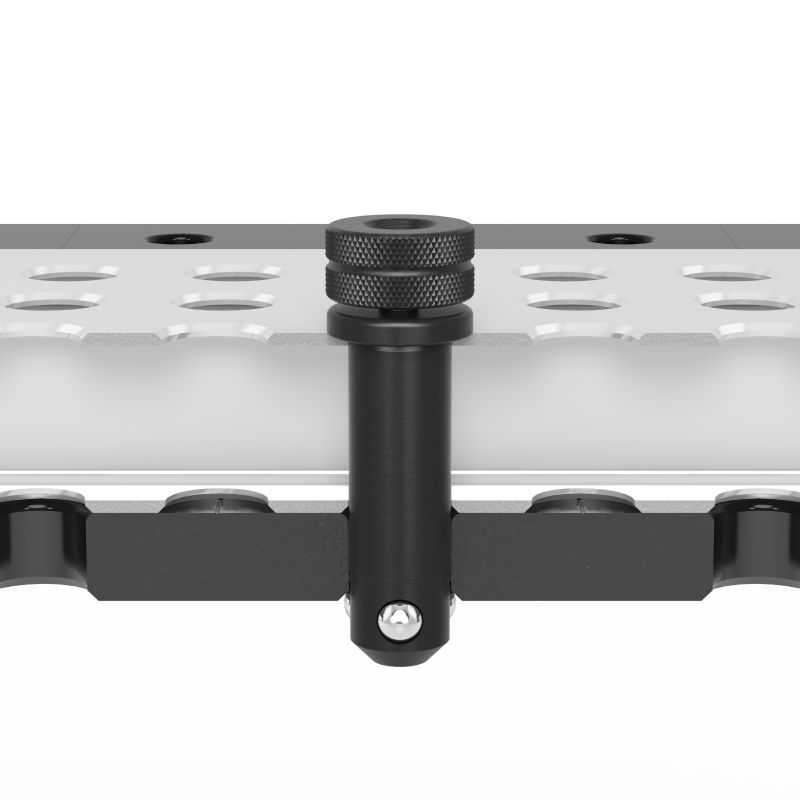

- Requires Clamping Bolt Without Slot Triple From 1000 mm Support Through Table Leg Required (Reduction Bushing 000546 required)
- Length: 1200mm (47.24")
- Width: 200mm (7.87")
- Height: 50mm (1.97")
- Weight: 14.37 Ibs (6.52kg)
