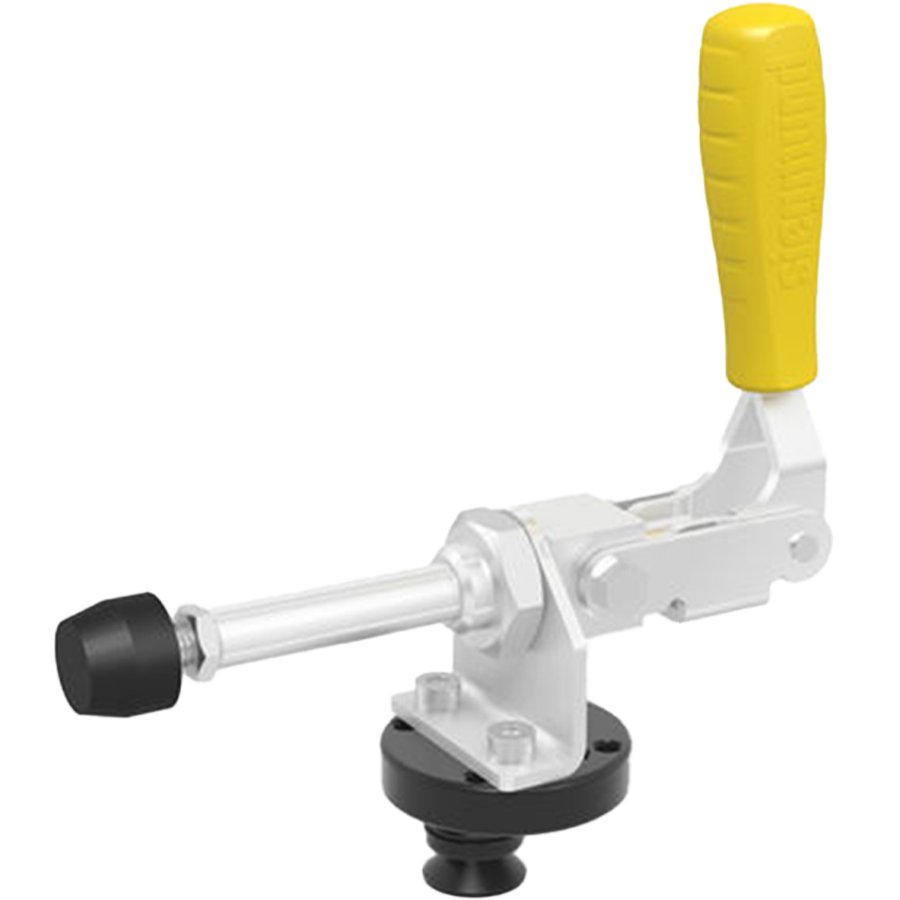

The Siegmund Horizontal Toggle Clamp 4000 with Adapter combines high clamping power with the speed of toggle-action engagement. Delivering up to 4 kN (899.2 lbf.) of holding force, it provides stronger performance than the 2500 model while maintaining compact, easy-to-handle construction. With the CS280715.4 adapter included, it mounts directly into 28mm boreholes for fast integration with System 28 tables.
- Provides a maximum clamping force of 4 kN (899.2 lbf.) for heavy-duty holding.
- Toggle-action mechanism ensures quick, repeatable clamping and release.

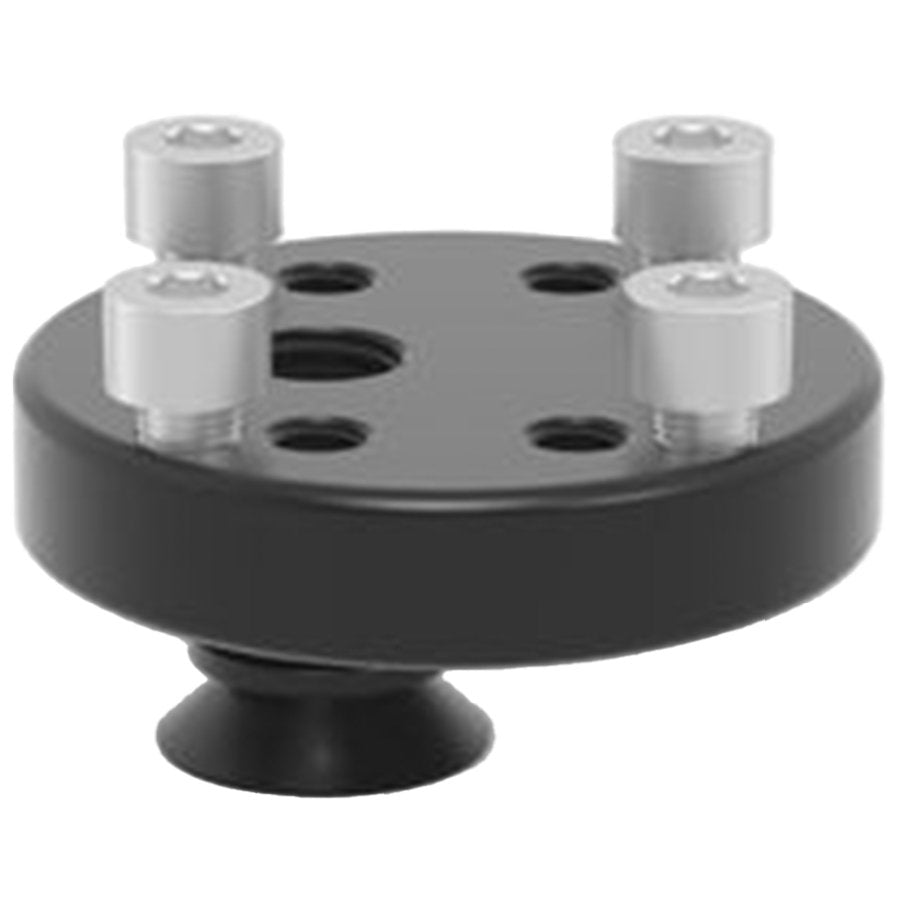

- Includes adapter CS280715.4 for direct use in 28mm (1.10" Inches) system boreholes.
- Weighs 3.26 lbs. (1.48 kg.), balancing strength and maneuverability.
- Compact design prevents obstruction of other clamping or fixturing elements.
Key Features:
- High 4 kN clamping force supports larger and heavier welds.
- Toggle mechanism increases efficiency in repetitive clamping tasks.
- Adapter ensures full compatibility with Siegmund System 28 tables.
- Durable build ensures reliable performance in demanding shop environments.
Specifications:
- Item No.: 4-CS280793
- System: Siegmund System 28 Metric Series
- Weight: 3.26 lbs. (1.48 kg.)
- Max. Clamping Force: 4 kN (899.2 lbf.)
- Adapter: CS280715.4 for 28mm (1.10" Inches) boreholes
Common Uses:
The Horizontal Toggle Clamp 4000 with Adapter is ideal for fabricators who need stronger holding than the 2500 toggle model. It excels in System 28 applications requiring quick clamping of larger assemblies or heavy-duty workpieces. Its combination of toggle speed and increased force makes it a preferred choice for high-volume and precision fabrication environments.
