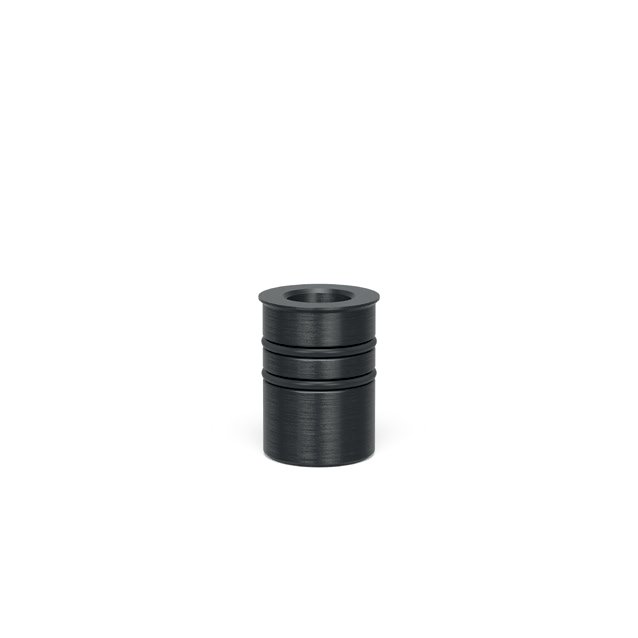

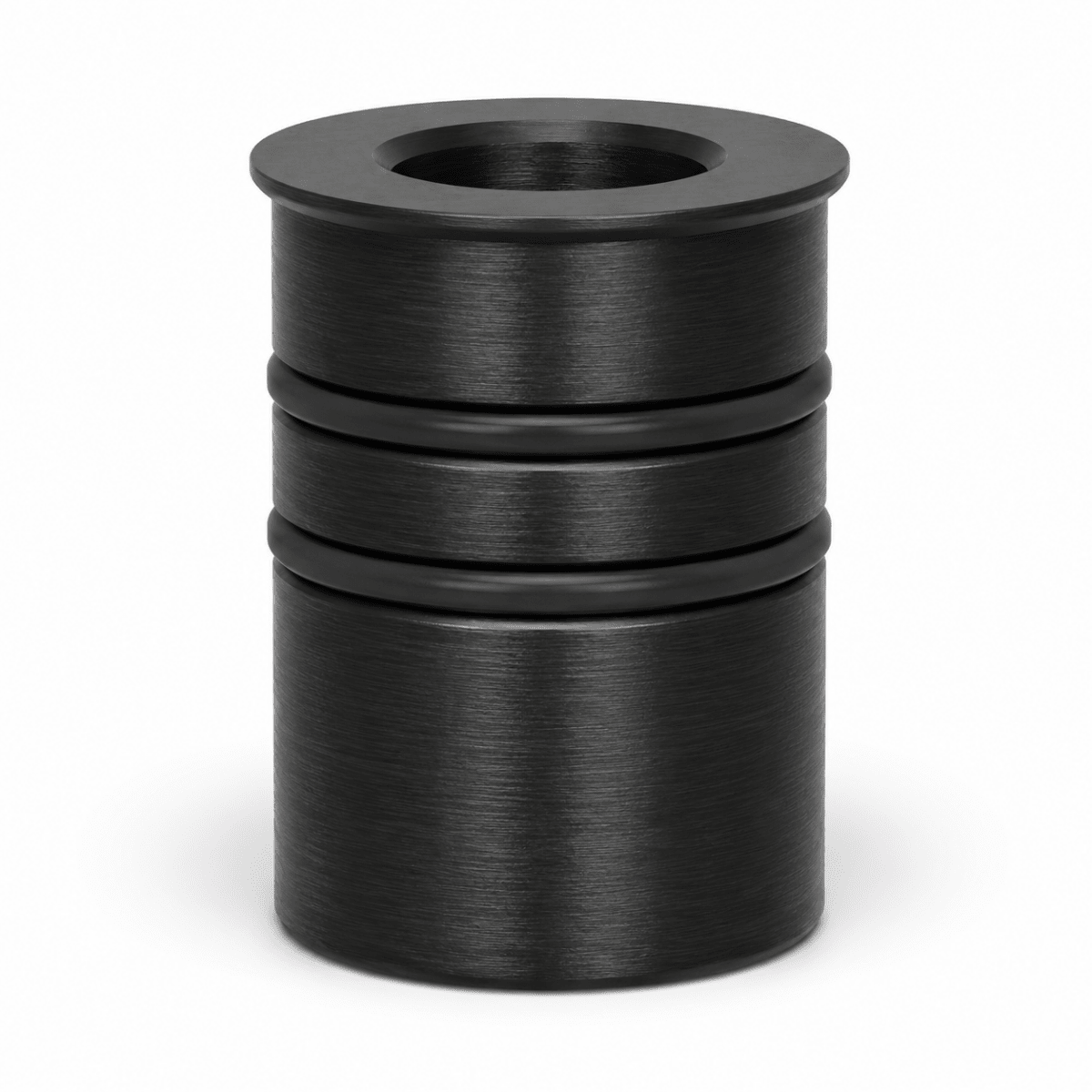

Unlock even more versatility from your Siegmund System 28 welding table by allowing it to accept compatible System 16 clamps and accessories. This precision-machined Adapter Sleeve installs into a System 28 borehole, reducing the opening so you can securely use System 16 clamping hardware exactly where it's needed.
Whether you're adding smaller clamps for tighter work, utilizing existing System 16 accessories, or expanding the capabilities of your System 28 fixture setup, this Adapter Sleeve helps you get more from the Siegmund equipment you already own. Instead of purchasing duplicate tooling, you can continue using compatible System 16 hardware while taking advantage of the larger work area and increased capacity of a System 28 table.
For even greater flexibility, pair this Adapter Sleeve with a compatible Siegmund Screw Support. Installing the sleeve into a Screw Support allows you to create a removable System 16 mounting location virtually anywhere on your System 28 table, giving you additional clamping options for complex fixture setups.
- Allows compatible System 16 clamps and accessories to be used in System 28 boreholes.
- Creates a System 16 mounting point in compatible System 28 tables and accessories.
- Works directly in compatible System 28 boreholes or inside a Siegmund Screw Support for additional positioning flexibility.
- Provides a cost-effective way to maximize existing System 16 tooling while expanding System 28 fixturing capabilities.
- Precision-machined steel construction with a durable burnished finish delivers long service life in demanding fabrication environments.
- Creates a System 16 mounting point in compatible System 28 tables and accessories.
- Works directly in compatible System 28 boreholes or inside a Siegmund Screw Support for additional positioning flexibility.
- Provides a cost-effective way to maximize existing System 16 tooling while expanding System 28 fixturing capabilities.
- Precision-machined steel construction with a durable burnished finish delivers long service life in demanding fabrication environments.
IMPORTANT COMPATIBILITY:
- This Adapter Sleeve reduces a System 28 borehole to accept compatible System 16 clamping hardware.
- System 16 Metric accessories work only with System 28 Metric tables and hardware.
- System 16 Imperial accessories work only with System 28 Imperial tables and hardware.
- This Adapter Sleeve does not convert between Metric and Imperial systems.
- Metric and Imperial Siegmund systems are different. Always verify that your table, accessories, and clamping hardware belong to the same series before ordering.
- For a permanent mounting location, install the Adapter Sleeve directly into any compatible System 28 borehole.
- For a removable mounting point that can be positioned anywhere on your System 28 table, install the Adapter Sleeve into a compatible Siegmund Screw Support.
- System 16 Metric accessories work only with System 28 Metric tables and hardware.
- System 16 Imperial accessories work only with System 28 Imperial tables and hardware.
- This Adapter Sleeve does not convert between Metric and Imperial systems.
- Metric and Imperial Siegmund systems are different. Always verify that your table, accessories, and clamping hardware belong to the same series before ordering.
- For a permanent mounting location, install the Adapter Sleeve directly into any compatible System 28 borehole.
- For a removable mounting point that can be positioned anywhere on your System 28 table, install the Adapter Sleeve into a compatible Siegmund Screw Support.
Key Features:
- Allows System 16 clamps and compatible accessories to be used on System 28 tables.
- Reduces System 28 boreholes to accept System 16 clamping hardware.
- Works directly in compatible System 28 boreholes.
- Compatible with Siegmund Screw Supports for portable System 16 mounting locations.
- Helps maximize existing tooling while reducing the need to purchase duplicate accessories.
- Reduces System 28 boreholes to accept System 16 clamping hardware.
- Works directly in compatible System 28 boreholes.
- Compatible with Siegmund Screw Supports for portable System 16 mounting locations.
- Helps maximize existing tooling while reducing the need to purchase duplicate accessories.
- Maintains the precision, rigidity, and repeatability expected from the Siegmund fixturing system.
- Available for both Metric and Imperial Siegmund systems. Always match the Adapter Sleeve to your table and accessories.
- Available for both Metric and Imperial Siegmund systems. Always match the Adapter Sleeve to your table and accessories.
Why Buy This Adapter Sleeve?
1. Many fabrication shops already own a large collection of System 16 clamps, stops, locating pins, and positioning accessories but want the larger work surface and increased capacity of a System 28 welding table.
2. This Adapter Sleeve lets your System 28 table accept compatible System 16 clamping hardware, making it easy to continue using the tooling you already own while expanding the capabilities of your fixturing system.
3. Need even more flexibility? Pair this Adapter Sleeve with a Siegmund Screw Support to create a removable System 16 mounting point that can be positioned wherever your fixture requires it.
4. It's one of the simplest and most economical ways to increase the versatility of your System 28 table while protecting your investment in System 16 tooling.
2. This Adapter Sleeve lets your System 28 table accept compatible System 16 clamping hardware, making it easy to continue using the tooling you already own while expanding the capabilities of your fixturing system.
3. Need even more flexibility? Pair this Adapter Sleeve with a Siegmund Screw Support to create a removable System 16 mounting point that can be positioned wherever your fixture requires it.
4. It's one of the simplest and most economical ways to increase the versatility of your System 28 table while protecting your investment in System 16 tooling.
What's Included:
- Your purchase includes one (1) Siegmund Adapter Sleeve (Item No. US000547) only.
- System 16 clamps, stops, squares, locating pins, Screw Supports, welding tables, and all other accessories shown in the product images are for demonstration purposes only and are NOT included with this purchase.

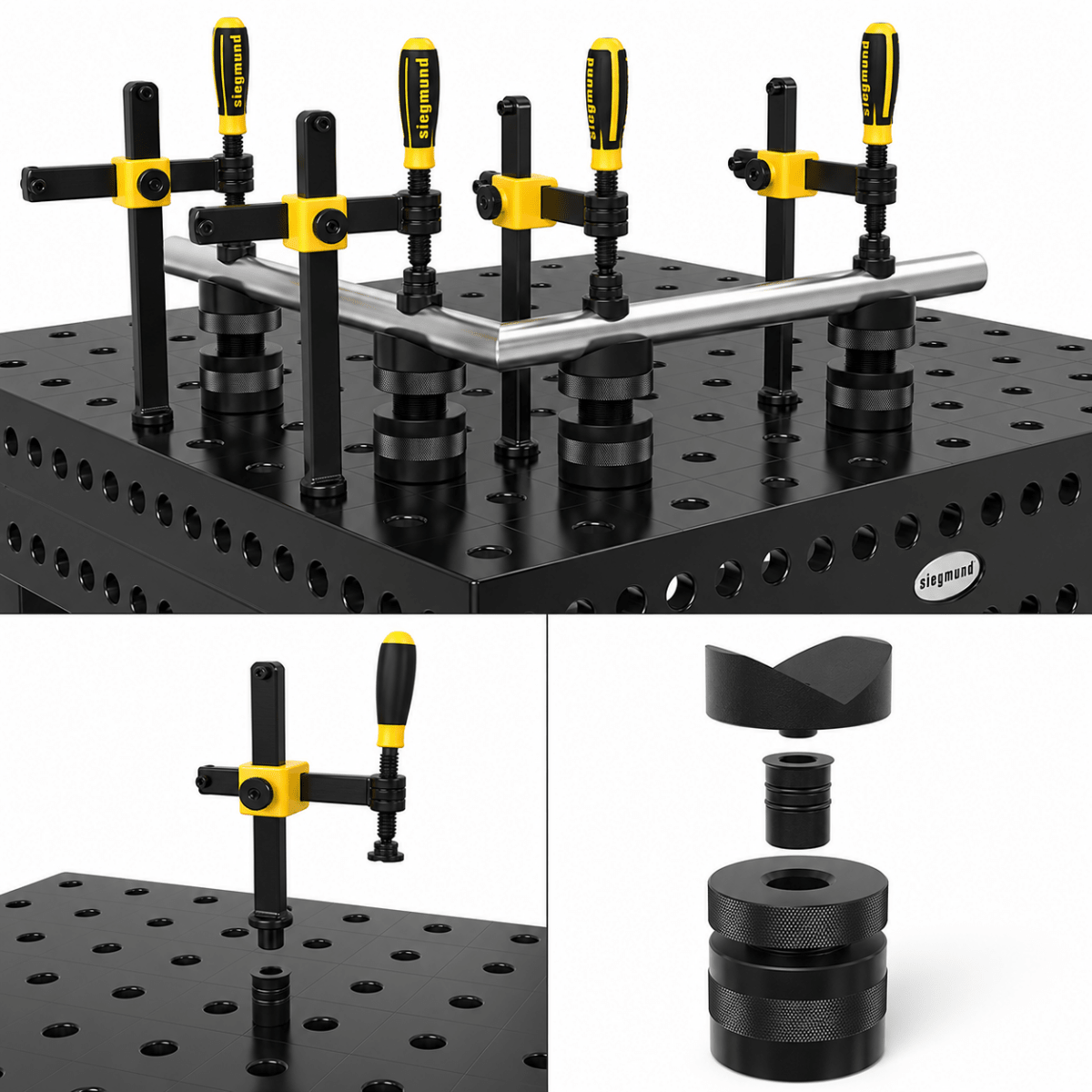

- The product images illustrate example applications showing how the Adapter Sleeve allows compatible System 16 hardware to be used with System 28 boreholes and Screw Supports.
- System 16 clamps, stops, squares, locating pins, Screw Supports, welding tables, and all other accessories shown in the product images are for demonstration purposes only and are NOT included with this purchase.
- The product images illustrate example applications showing how the Adapter Sleeve allows compatible System 16 hardware to be used with System 28 boreholes and Screw Supports.
Specifications:
- Item No.: 2-000547
- Product Type: Adapter Sleeve
- Series Compatibility: Siegmund System 28 Metric Series Tables with Siegmund System 16 Metric Series Accessories OR Siegmund System 28 Imperial Series Tables with Siegmund System 16 Imperial Series Accessories
- Application: Adapts System 28 Boreholes to Accept Compatible System 16 Clamping Hardware
- Length: 40mm (1.57" Inches)
- Outside Diameter: 30mm (1.18" Inches)
- Weight: 0.26 lbs. (0.12 kg.)
- Material: Steel
- Finish: Burnished
- Application: Adapts System 28 Boreholes to Accept Compatible System 16 Clamping Hardware
- Length: 40mm (1.57" Inches)
- Outside Diameter: 30mm (1.18" Inches)
- Weight: 0.26 lbs. (0.12 kg.)
- Material: Steel
- Finish: Burnished
Common Uses:
Expand the versatility of your Siegmund System 28 welding table by creating mounting locations for compatible System 16 clamps and accessories. The Adapter Sleeve installs directly into System 28 boreholes or into a compatible Screw Support, allowing fabricators to integrate smaller System 16 tooling into larger fixturing setups while maintaining the precision, rigidity, and repeatability expected from the Siegmund fixturing system.
