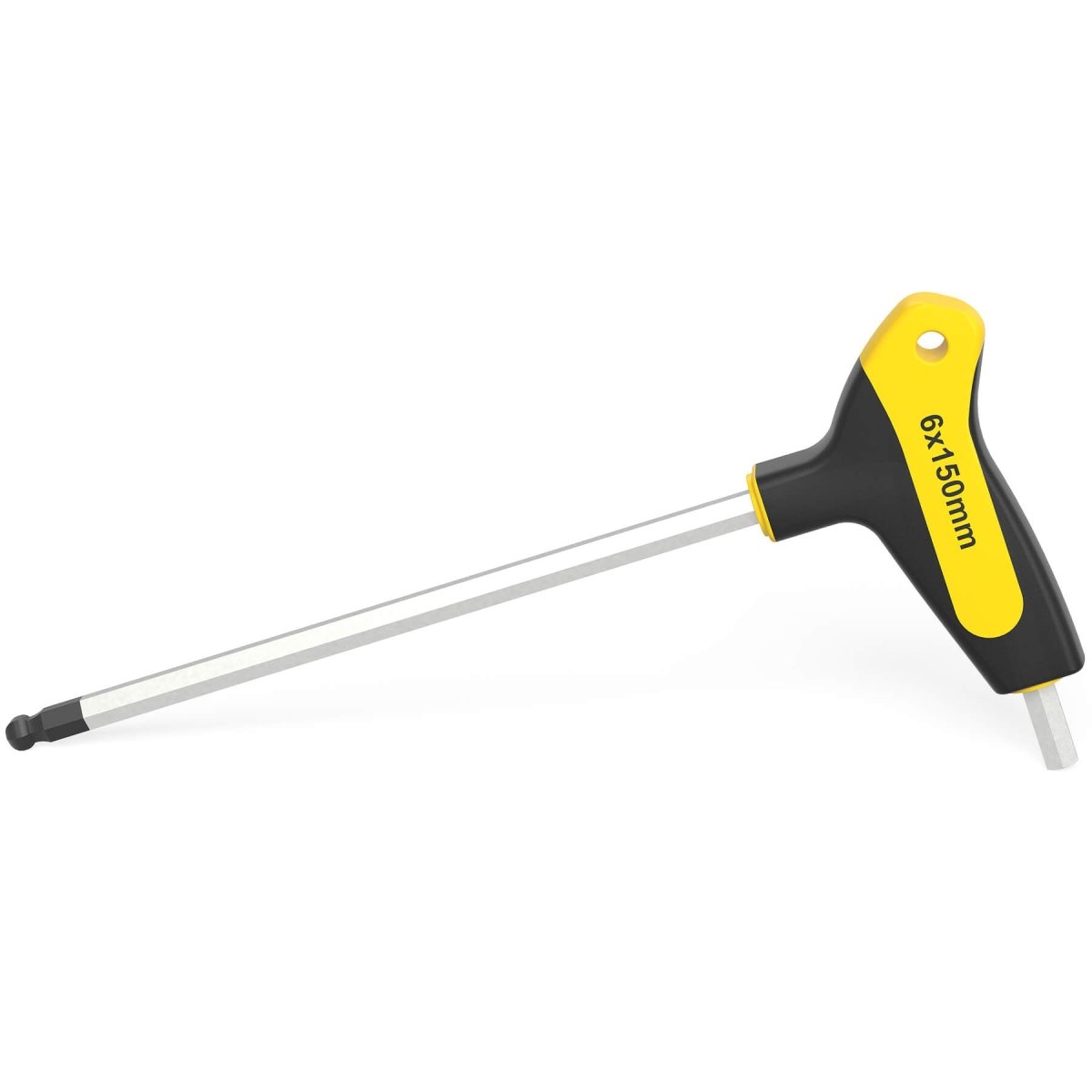

Allen Key 6 (Item No. 2-280852.1, also known as S2-280852.1), the practical tool to tighten screws quickly and safely. It is an effective support for working with clamping bolts, screw clamps and small universal squares.
The First Video below displays the Toughness and Hardness of our System 28 Professional Extreme 8.8 Series Welding Tables.
Showing why our Welding Tables are unsurpassable in Strength and Reliability. The Second Video explains why we Plasma-Nitride most of our products.
