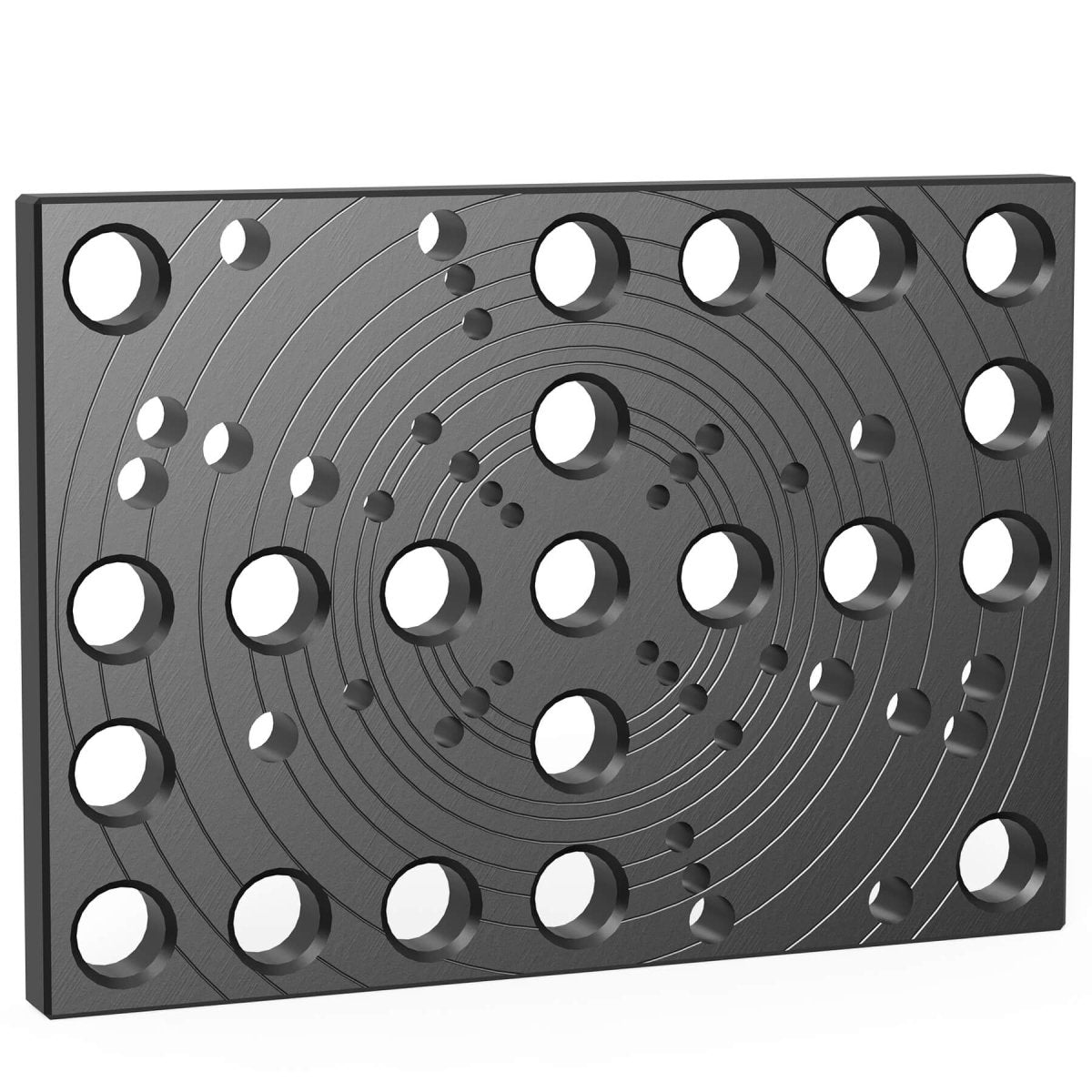

Clamping Plate 350 for DIN Flanges with Fixing Bolt - Nitrided (Item No. 2-280221.P)

Clamping Plate 350 for DIN Flanges with Fixing Bolt - Nitrided (Item No. 2-280221.P)

  • Product SKU: 2-280221.P
Available: In Stock
$844
Successful pre-order.Thanks for contacting us!
Wishlist Compare

Clamping Plate 350 for DIN flanges (Item No. 2-280221.P, also known as S2-280221.P), attached with clamping bolts to Siegmund elements, like squares. Pipe flanges can be positioned quickly at the clamping plate by using fixing bolts. The 28 mm bore holes provide fastening of additional clamping elements, enabling a wide range of application options. Additional nominal widths are available upon request. Scope of delivery for Clamping Plate 350: 2x fixing bolts Ø 13.8, 2x fixing bolts Ø 17.8, 2x fixing bolts Ø 21.8. In order to utilize the Clamping Plate in system 16 connection elements like Connecting Bolts (Item No. 000562), Combination Clamping Bolts (Item No. 000520), or Reduction Bushings (Item No. 000546) are required.

Specs and Features:

  • Length: (a) 350mm (13.7'')
  • Width: (b) 250mm (9.84''
  • Ø: (o) -
  • MS: (d) 25mm (0.98'')
  • Weight: 30.86 Ibs
