2-002216: Combination Fast Clamping Bolt short 22 -> 16 - Burnished

Manufacturer: Siegmund
Part No. (SKU): 2-002216
Current Availability in the USA: 20 In Stock
Series: 28mm Welding Table Accessories
$67
$95
$67
Subtotal: $67

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

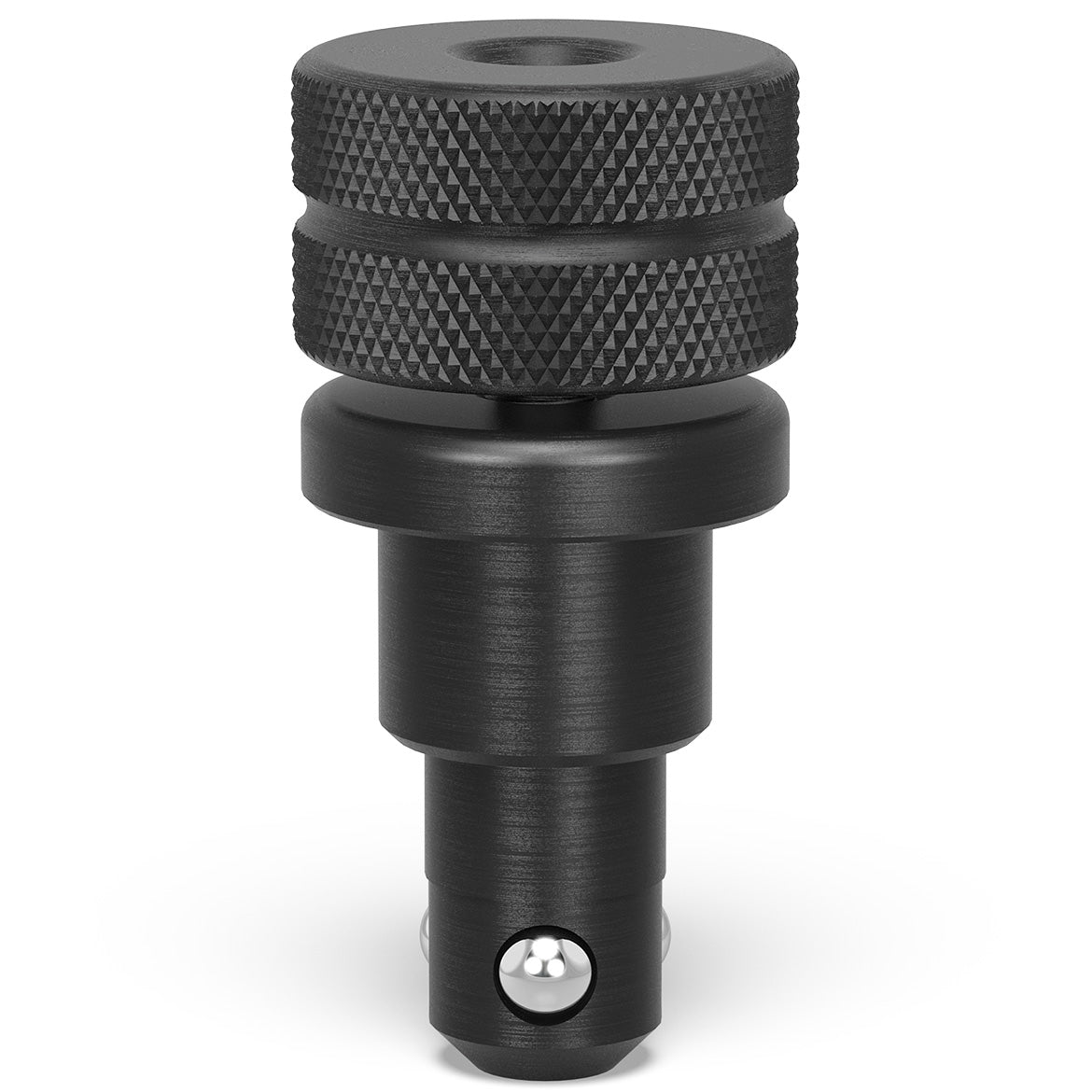

Combination Clamping Bolt (Item No. 2-002216, also known as S2-002216), developed specifically to bolt system 22 components to system 16 welding tables. The ball size and clamping force correspond with 16 mm clamping bolts. The fourth ball located in the center reduces internal friction and increases the force of the handwheel. The new design of the Clamping Bolt dispenses with the O-rings, however it is still easy to clean. This Bolt is NOT approved for combining tables and U-shaped squares!

Specs and Features:

  • Length: 71mm (2.79'')
  • Diameter Ø: 35mm (1.37'')
  • SK: (k1) 55kN
  • AM: (k3) 10Nm
  • ZK: (k2) 10kN
  • Weight: 0.61 Ibs
