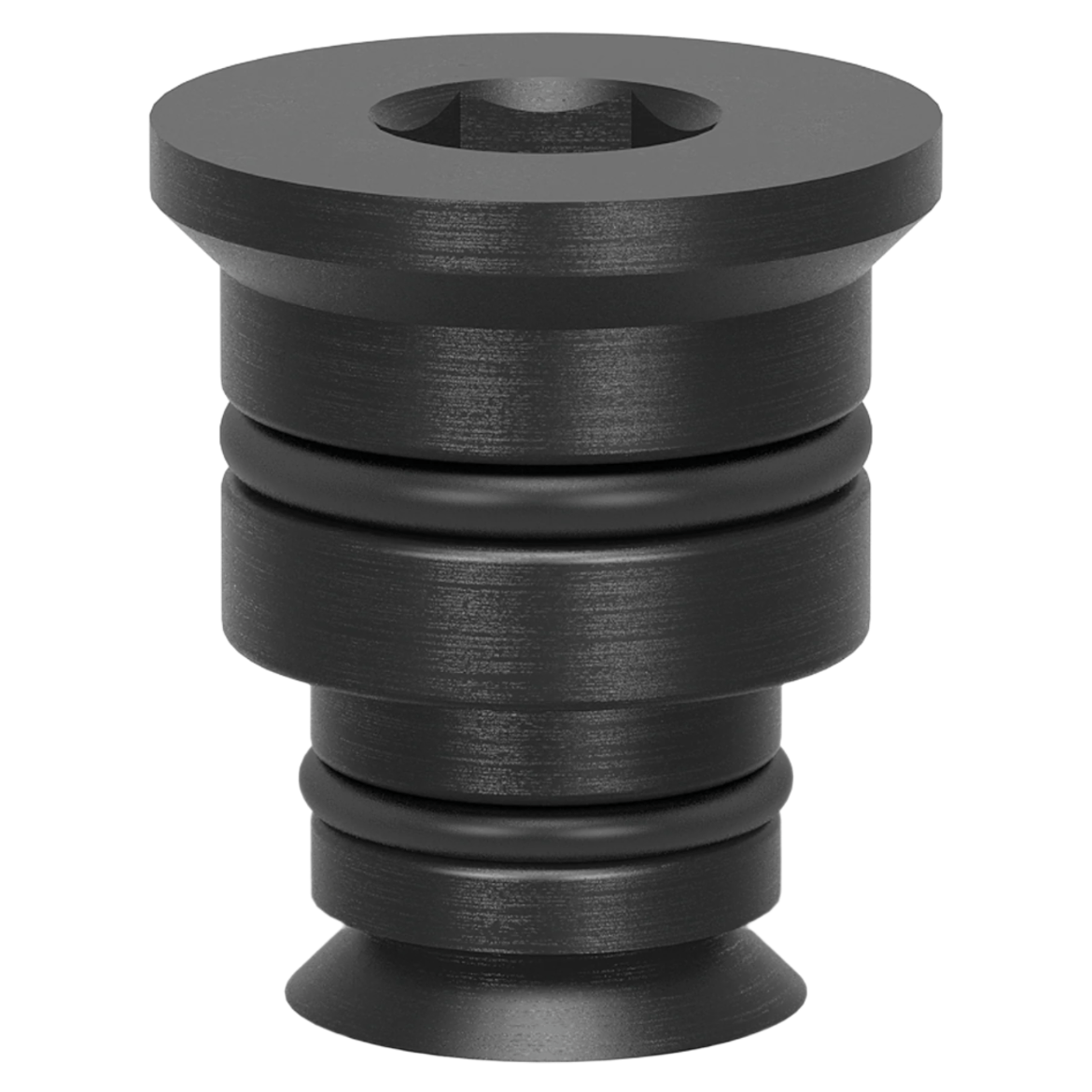

Connecting Bolt 22 <-> 16- Burnished (Item No. 2-022016)

Add Your Review

Product SKU: 2-022016

Available: In Stock

$36

Quantity

Wishlist Compare

Description
Reviews

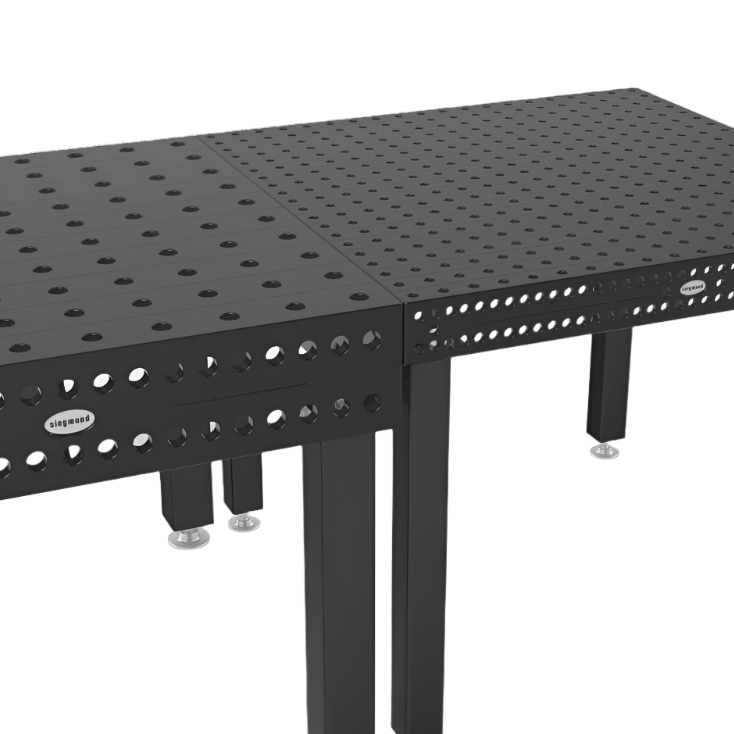

Connecting Bolt (Item No. 2-022016, also known as S2-022016), especially designed to connect 16 mm and 22 mm tables. All 16 mm and 22 mm components can be interconnected using the system bore holes.

Specs and Features:

Length: (a) 27mm(1.06'')
Ø: (o) 27mm (1.06'')
Weight: 0.33 Ibs

Connecting Bolt (Item No. 2-022016, also known as S2-022016), especially designed to connect 16 mm and 22 mm tables. All 16 mm and 22 mm components can be interconnected using the system bore holes.

Specs and Features:

Length: (a) 27mm(1.06'')
Ø: (o) 27mm (1.06'')
Weight: 0.33 Ibs
