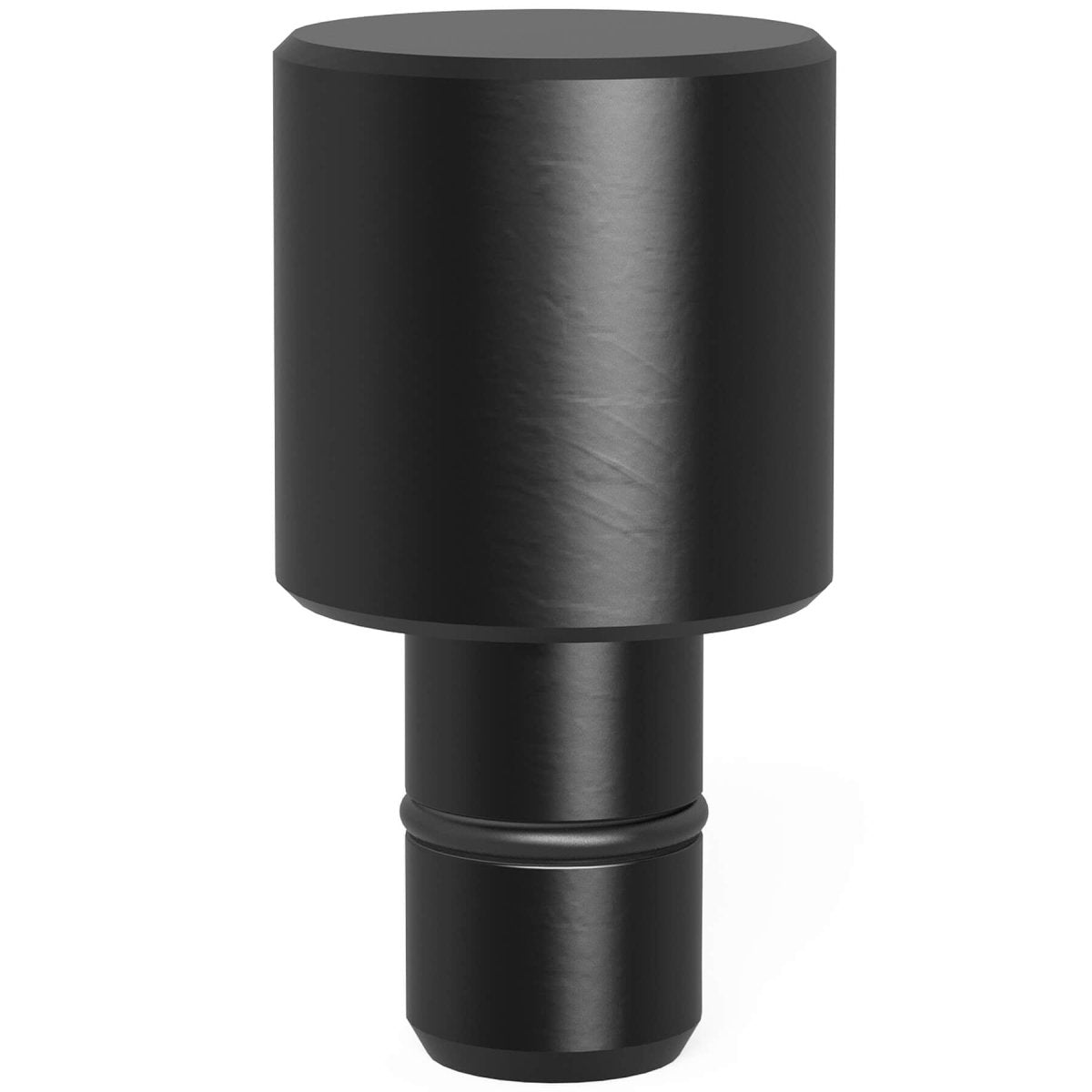

Fixing Bolt Ø 29,8 for bore 16.1 - Burnished (Item No. 2-280226)

Fixing Bolt Ø 29,8 for bore 16.1 - Burnished (Item No. 2-280226)

  • Product SKU: 2-280226
Available: In Stock
$32
Successful pre-order.Thanks for contacting us!
Wishlist Compare

Clamping Plate 550 for DIN flanges (Item No. 2-280226, also known as S2-280226)  - for Clamping Plate 280220 / 280221, attached with clamping bolts to Siegmund elements, like squares. Pipe flanges can be positioned quickly at the clamping plate by using fixing bolts. The 28 mm bore holes provide fastening of additional clamping elements, enabling a wide range of application options. Additional nominal widths are available upon request. Scope of delivery for Clamping Plate 550: 2x fixing bolts Ø 13.8, 2x fixing bolts Ø 17.8, 2x fixing bolts Ø 21.8, 2x fixing bolts Ø 25.8, 2x fixing bolts Ø 29.8, 2x fixing bolts Ø 32.8. In order to utilize the Clamping Plate in system 16 connection elements like Connecting Bolts (Item No. 000562), Combination Clamping Bolts (Item No. 000520), or Reduction Bushings (Item No. 000546) are required. For flanges DIN 2632 / 2633 nominal widths DN 15 - DN 400, flanges DIN 2634 / 2635 nominal widths DN 50 - DN 300.

Specs and Features:

  • Length: (a) 55mm (2.16'')
  • Width: (b) -
  • Ø: (o) 30mm (1.18'')
  • MS: (d) -
  • Weight:0.44 Ibs

Clamping Plate 550 for DIN flanges (Item No. 2-280226, also known as S2-280226)  - for Clamping Plate 280220 / 280221, attached with clamping bolts to Siegmund elements, like squares. Pipe flanges can be positioned quickly at the clamping plate by using fixing bolts. The 28 mm bore holes provide fastening of additional clamping elements, enabling a wide range of application options. Additional nominal widths are available upon request. Scope of delivery for Clamping Plate 550: 2x fixing bolts Ø 13.8, 2x fixing bolts Ø 17.8, 2x fixing bolts Ø 21.8, 2x fixing bolts Ø 25.8, 2x fixing bolts Ø 29.8, 2x fixing bolts Ø 32.8. In order to utilize the Clamping Plate in system 16 connection elements like Connecting Bolts (Item No. 000562), Combination Clamping Bolts (Item No. 000520), or Reduction Bushings (Item No. 000546) are required. For flanges DIN 2632 / 2633 nominal widths DN 15 - DN 400, flanges DIN 2634 / 2635 nominal widths DN 50 - DN 300.

Specs and Features:

  • Length: (a) 55mm (2.16'')
  • Width: (b) -
  • Ø: (o) 30mm (1.18'')
  • MS: (d) -
  • Weight:0.44 Ibs
