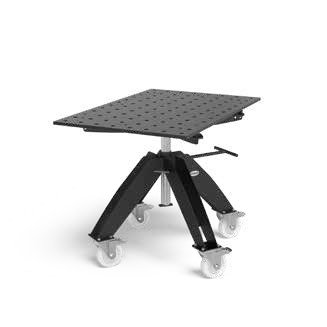

System 22 Mobile Rotating Welding Table 1200x800mm (47"x31") (Item No. 2-DM224004.P)

System 22 Mobile Rotating Welding Table 1200x800mm (47"x31") (Item No. 2-DM224004.P)

Availability: In Stock
$2,732
Successful pre-order.Thanks for contacting us!
Wishlist Compare

QUICK AND EASY TO THE IDEAL WORKING HEIGHT

The height adjustable rotating table by Siegmund provides a flexible working height with high load capacity and easy handling.

(Item No. 2-DM224004.P)

ERGONOMIC WORKING IN A SMALL SPACE
The height adjustable rotating table by Siegmund provides a space-saving and ergonomic working basis. By turning the plate you can continuously adjust the working height. Use the locking lever on the side to fix the position of the worktop.

360° HANDLING
With the height adjustable rotating table you can easily reach and handle your workpiece from all sides. 360° handling and always the right working height with the height adjustable rotating table by Siegmund.

MOBILE BASIC FRAME
The Mobile Basic Frame is Powder Coated with a Steel Construction, with all 4 Castors having Locking Brakes.

WELDING TABLE SPECS AND FEATURES:

  • Overall Tabletop Size: 47.2" x 31.5" x 0.47" (1200x800x12mm)
  • Welding Table Series: System 22
  • Welding Table Material Thickness: Approx. 0.70" (18mm)
  • Welding Table Material Type and Finish: Premium Steel S355J2+N,
    Plasma Nitrided and BAR-Coated
  • Official Welding Table Part No.: 2-DM224004.P
  • Borehole Size: Ø 22mm (0.86")
  • Maximum Load Capacity (incl. Perforated Plate): 2,200 lbs. (1,000 kg.)
  • Approx. Working Height: 30.7" to 43.3" (780 to 1,100mm)
  • Grid: Grid lines in a distance of 100x100mm (3.93" x 3.93") help you to arrange your accessories.
  • Approximate Weight without Table: 144 lbs. / 65 kg.
  1. Boreholes on the surface are in a 100x100mm (3.93"x3.93") Grid Configuration.
  2. Boreholes have a radius of 2mm (0.080").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
Click on the link below to download the PDF version of the latest Siegmund Catalog with updated pricing!! CLICK HERE
(Pricing is valid until February 2nd, 2020)
