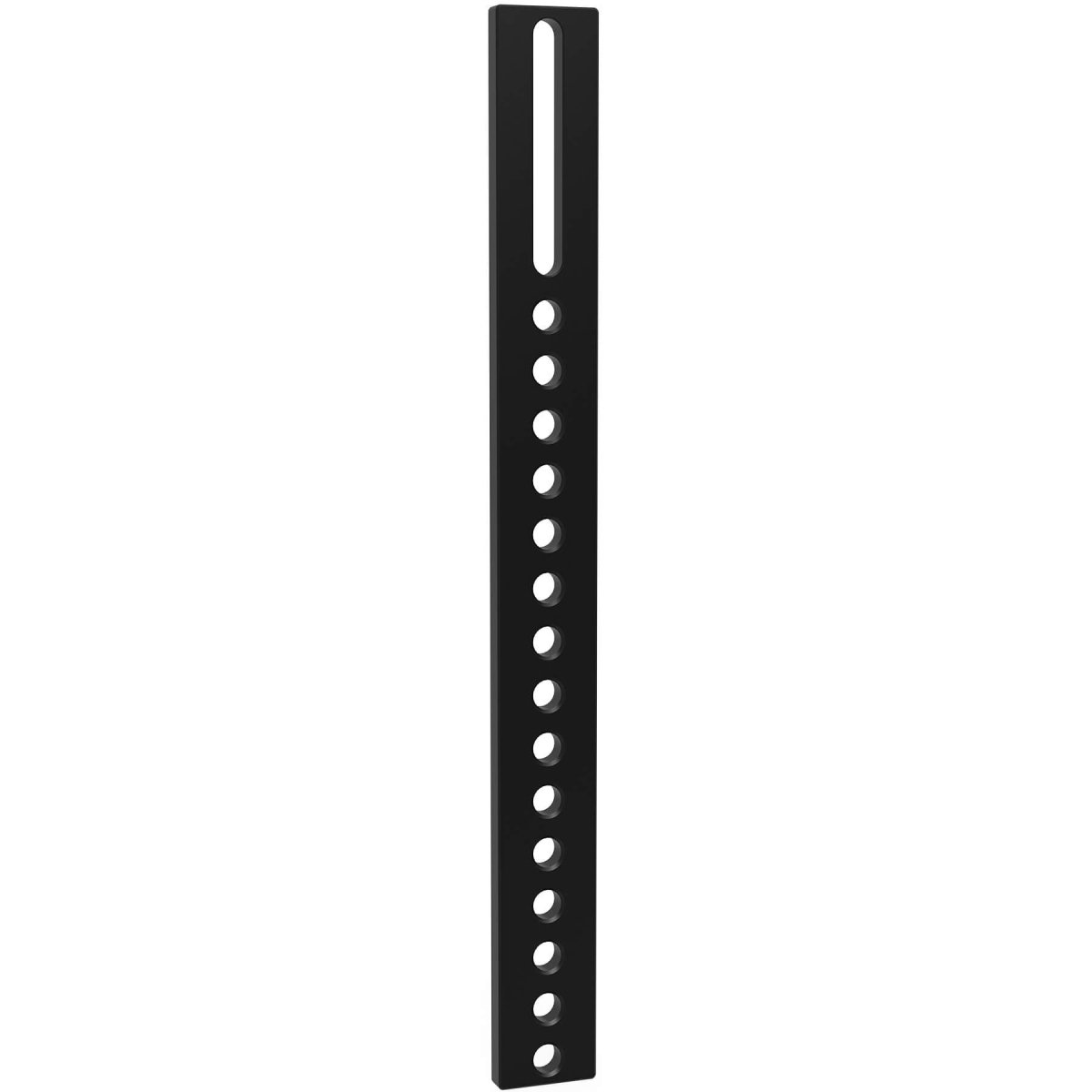

The Siegmund 1000mm Universal Stop S is the largest stop available, engineered for precise positioning of oversized and heavy components. Combining a 200mm elongated slot with multiple system boreholes, it provides unmatched versatility for both fixed and adjustable clamping. Its wide 100mm profile and 25mm material thickness ensure extreme stability, while the plasma nitrided finish guarantees long-term wear resistance in industrial welding environments.
- 1000mm length provides maximum reach for very large setups.
- 200mm elongated slot allows broad adjustment flexibility.
- Multiple boreholes support a wide range of clamping options.
- Wide 100mm profile adds rigidity for heavy-duty use.
- Plasma nitrided finish enhances surface hardness and durability.
Key Features:
- Longest universal stop for oversized workpieces.
- Combination of slot and boreholes enables fixed or adjustable setups.
- Nitrided finish provides maximum service life under heavy use.
- Wide profile ensures structural stability.
- Optimized for Siegmund System 28 Metric Series welding tables.
Specifications:
- Item No.: 2-280434.N
- System: Siegmund System 28 Metric Series
- Length: 1000mm (39.37" Inches)
- Width: 100mm (3.94" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Adjusting Range: 200mm (7.87" Inches)
- Weight: 35.94 lbs. (16.3 kg.)
- Finish: Plasma Nitrided
Common Uses:
This universal stop is used for positioning and securing oversized and heavy workpieces on Siegmund System 28 Metric Series welding tables. Its extended length and versatile combination of slot and boreholes make it essential for large-scale fabrication, heavy-duty welding, and applications requiring maximum stability and repeatable accuracy.
