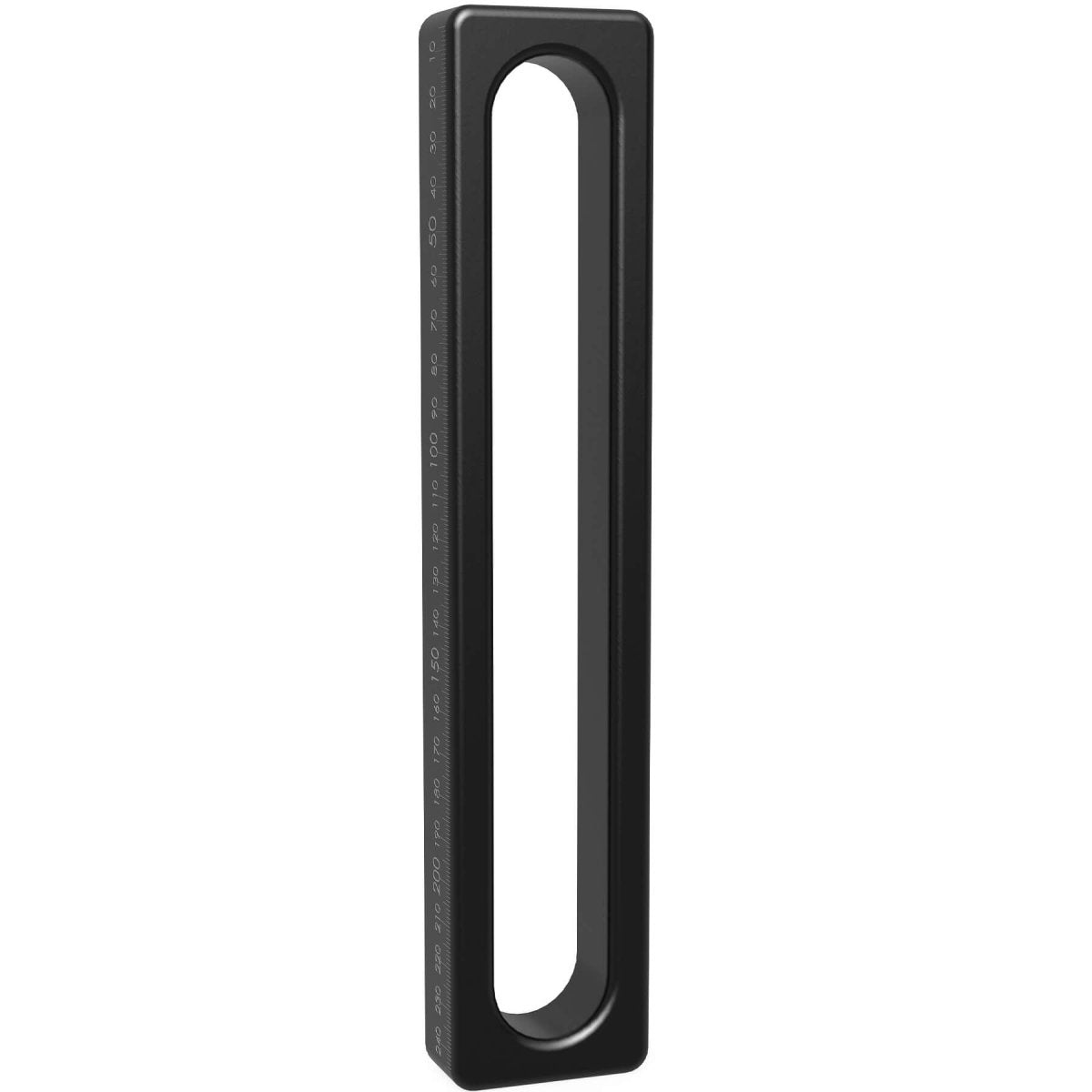

The Siegmund 250mm Universal Stop L provides maximum flexibility and stability for welding and fixturing setups. With an elongated slot delivering a wide adjustment range and fine scaling on both sides, it ensures precision and repeatability. Its plasma nitrided finish enhances surface hardness, making it a durable choice for demanding fabrication environments.
- Elongated slot allows 200mm adjustment range for versatile setups.
- Supports the use of two clamping bolts for added stability.
- Fine scaling on both sides ensures accurate repeatable alignment.
- Plasma nitrided finish improves resistance to wear and corrosion.
- Compatible with Siegmund System 28 Metric Series welding tables.
Key Features:
- Broad 0–200mm adjustment range for large setups.
- Dual-bolt compatibility provides stronger and more secure clamping.
- Durable nitrided finish ensures extended service life.
- Precision scaling improves repeatable accuracy.
- Seamlessly integrates with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280410.2.N
- System: Siegmund System 28 Metric Series
- Length: 250mm (9.84" Inches)
- Width: 50mm (1.97" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Adjusting Range: 200mm (7.87" Inches)
- Weight: 2.65 lbs. (1.2 kg.)
- Finish: Plasma Nitrided
Common Uses:

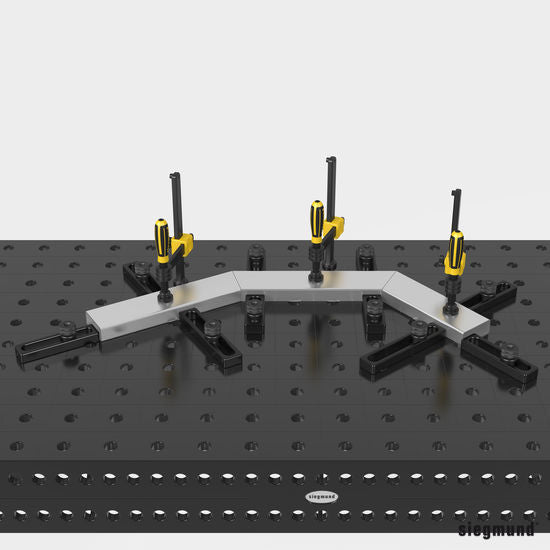

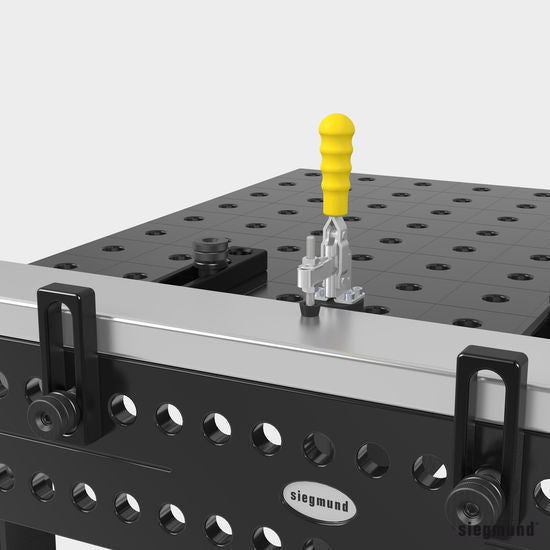

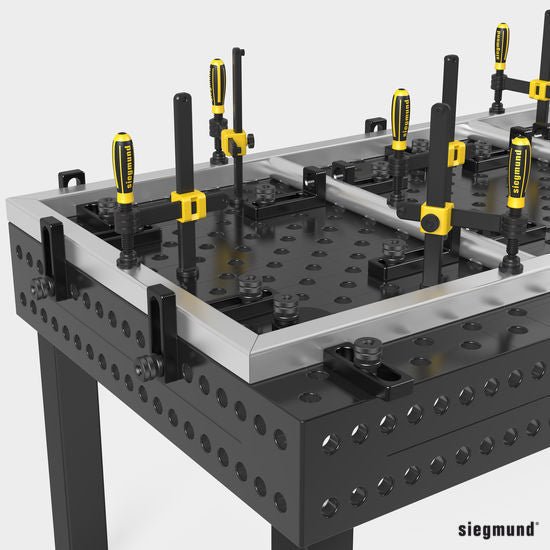

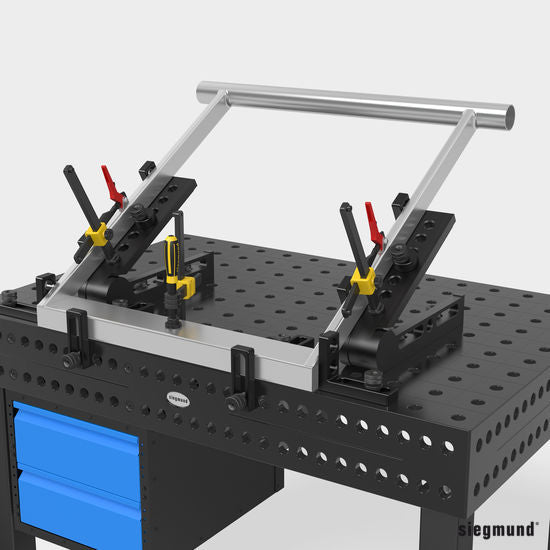

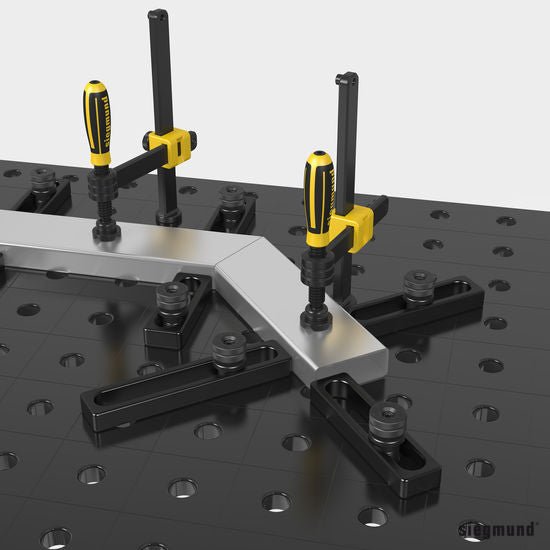

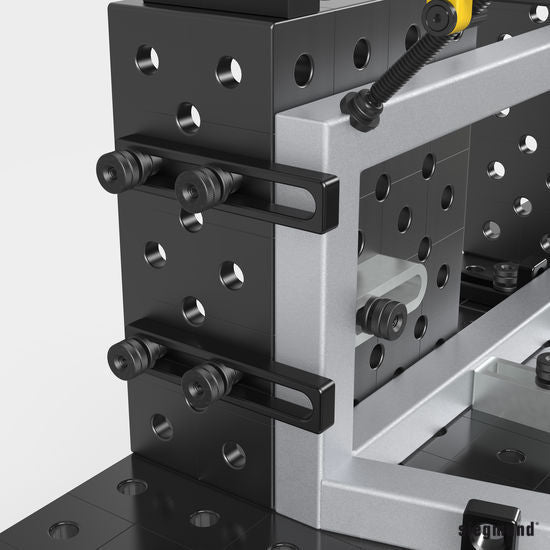

This universal stop delivers precise and flexible positioning of workpieces on Siegmund System 28 Metric Series welding tables. Its extended adjustment range and compatibility with two clamping bolts make it ideal for large-scale setups and diagonal clamping. Fabricators rely on it for repeatable precision in both heavy-duty welding and advanced fixturing tasks.
