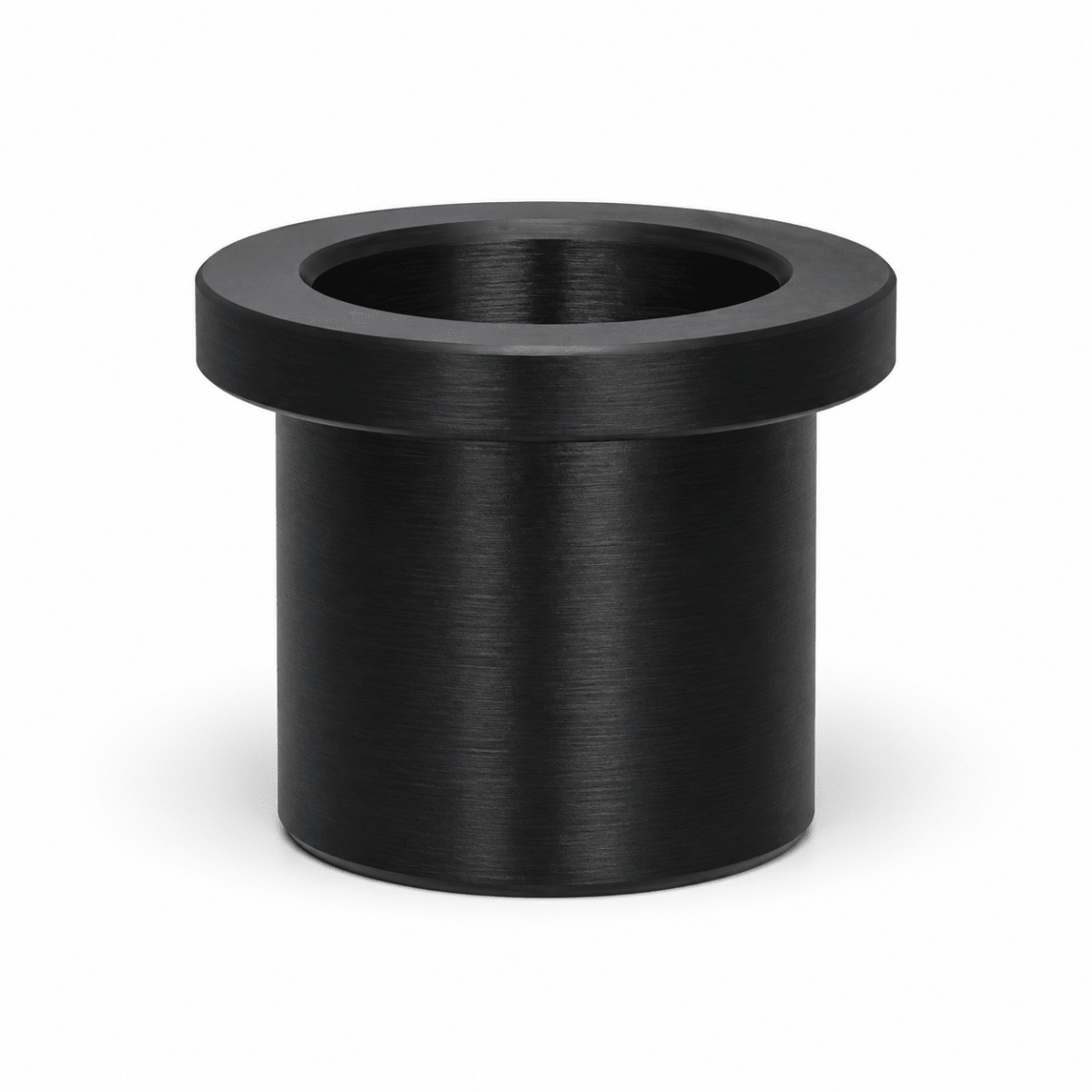

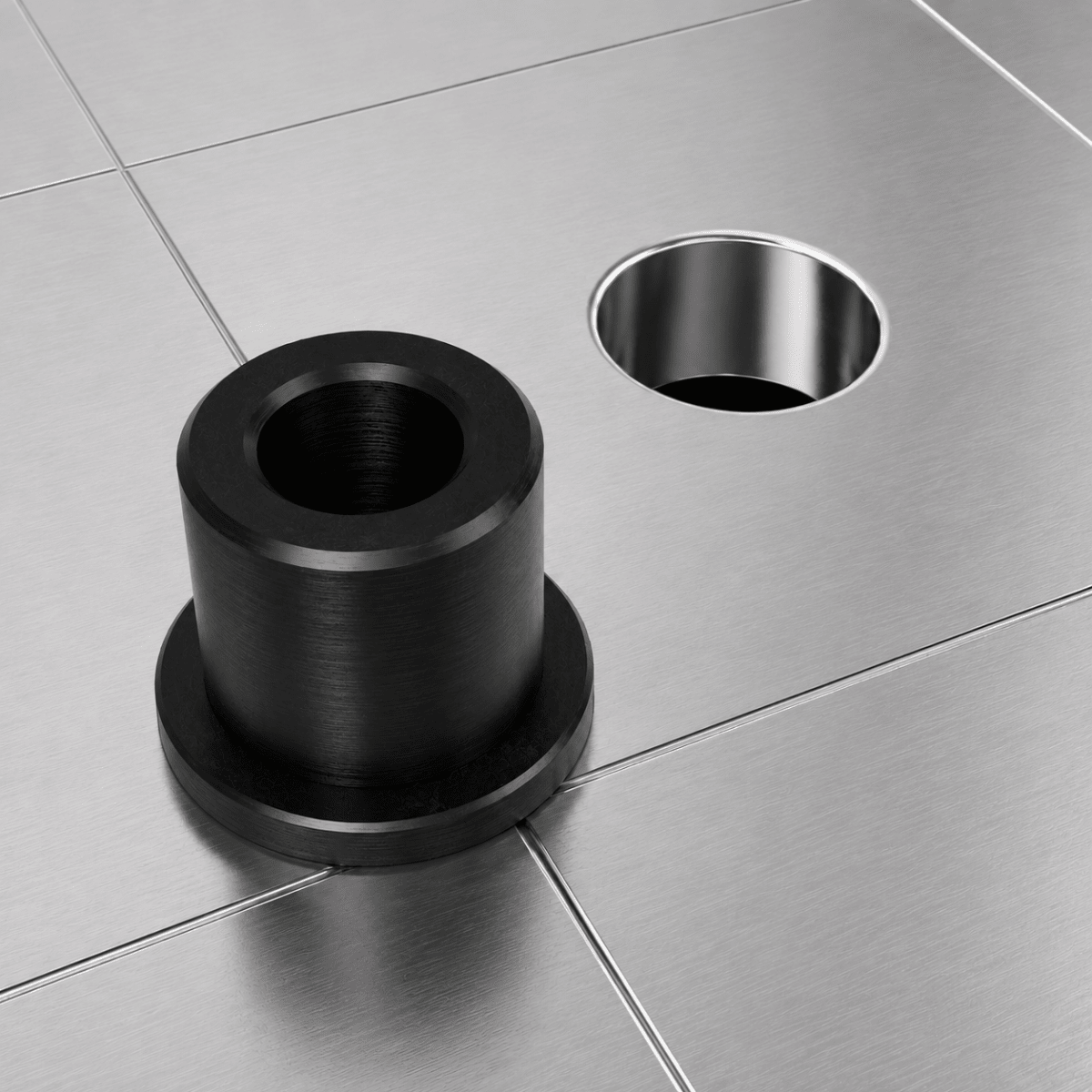

Unlock the full potential of your Siegmund System 16 welding table by adding the strength and versatility of System 28 heavy-duty stops, squares, locating angles, and other fixturing accessories. This Reduction Bushing installs into the mounting hole of a compatible System 28 accessory, reducing the hole size so it can be securely fastened with a System 16 clamping bolt.
If you've ever wanted to use the larger, more rigid System 28 stops and squares on your System 16 table, this is the accessory that makes it possible. Instead of purchasing duplicate System 16 accessories, you can put your existing System 28 tooling to work, saving money while dramatically expanding the capability of your welding table.
- The result is greater fixturing flexibility, increased rigidity for larger workpieces, and a better return on your investment in Siegmund equipment.
- Allows heavy-duty System 28 stops, squares, locating angles, and similar accessories to be securely mounted on compatible System 16 tables.
- Reduces the mounting hole in System 28 accessories to accept System 16 clamping hardware.
- Works with both standard round holes and elongated slots found in compatible System 28 components.
- Provides a simple, cost-effective way to maximize existing System 28 tooling without purchasing duplicate System 16 accessories.
- Precision-machined steel construction with a durable burnished finish delivers long service life in demanding fabrication environments.
IMPORTANT COMPATIBILITY:
- This Reduction Bushing only reduces the mounting hole size. It does not convert between Metric and Imperial systems.
- System 28 Metric accessories work only with System 16 Metric tables and System 16 Metric hardware.
- System 28 Imperial accessories work only with System 16 Imperial tables and System 16 Imperial hardware.
- Metric and Imperial Siegmund systems are different. Always verify that both your accessories and your welding table belong to the same series before ordering.
Key Features:
- Use heavy-duty System 28 stops, squares, locating angles, and accessories on a compatible System 16 table.
- Transforms your System 16 table into a platform capable of utilizing larger and more robust System 28 positioning accessories.
- Eliminates the need to purchase duplicate System 16 stops and squares when you already own System 28 tooling.
- Maintains the precision, rigidity, and repeatability expected from the Siegmund fixturing system.
- Compatible with both round holes and elongated slots in System 28 accessories.
- Available for both Metric and Imperial Siegmund systems. Always match the Reduction Bushing to your table and accessories.
Why Buy This Reduction Bushing?
1. Many fabricators prefer the larger, heavier-duty System 28 stops and squares because they provide greater contact area, increased rigidity, and better support for larger weldments.
2. Without this Reduction Bushing, those accessories cannot be mounted to a compatible System 16 table.
3. With this adapter, your System 16 table gains the ability to use premium System 28 positioning accessories, giving you more fixturing options while maximizing the value of the tooling you already own.
4. Whether you're expanding your shop, sharing tooling between multiple Siegmund tables, or simply want the strength and stability of System 28 accessories on your System 16 table, this inexpensive adapter is one of the most cost-effective upgrades you can make.
What's Included:
- Your purchase includes one (1) Siegmund Reduction Bushing (Item No. US000546) only.
- System 28 stops, squares, locating angles, clamping bolts, welding tables, and any other accessories shown in the product images are for demonstration purposes only and are NOT included with this purchase.

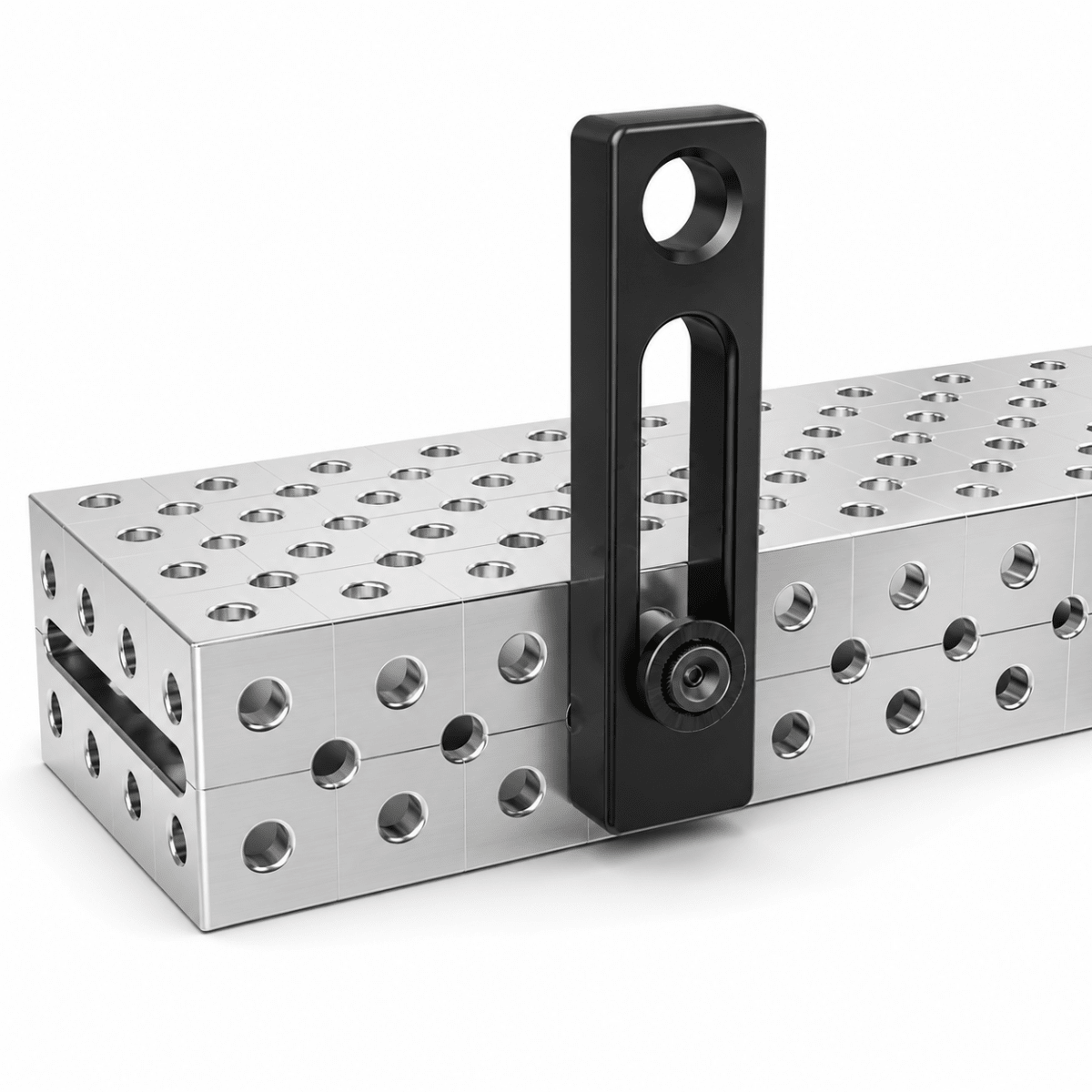

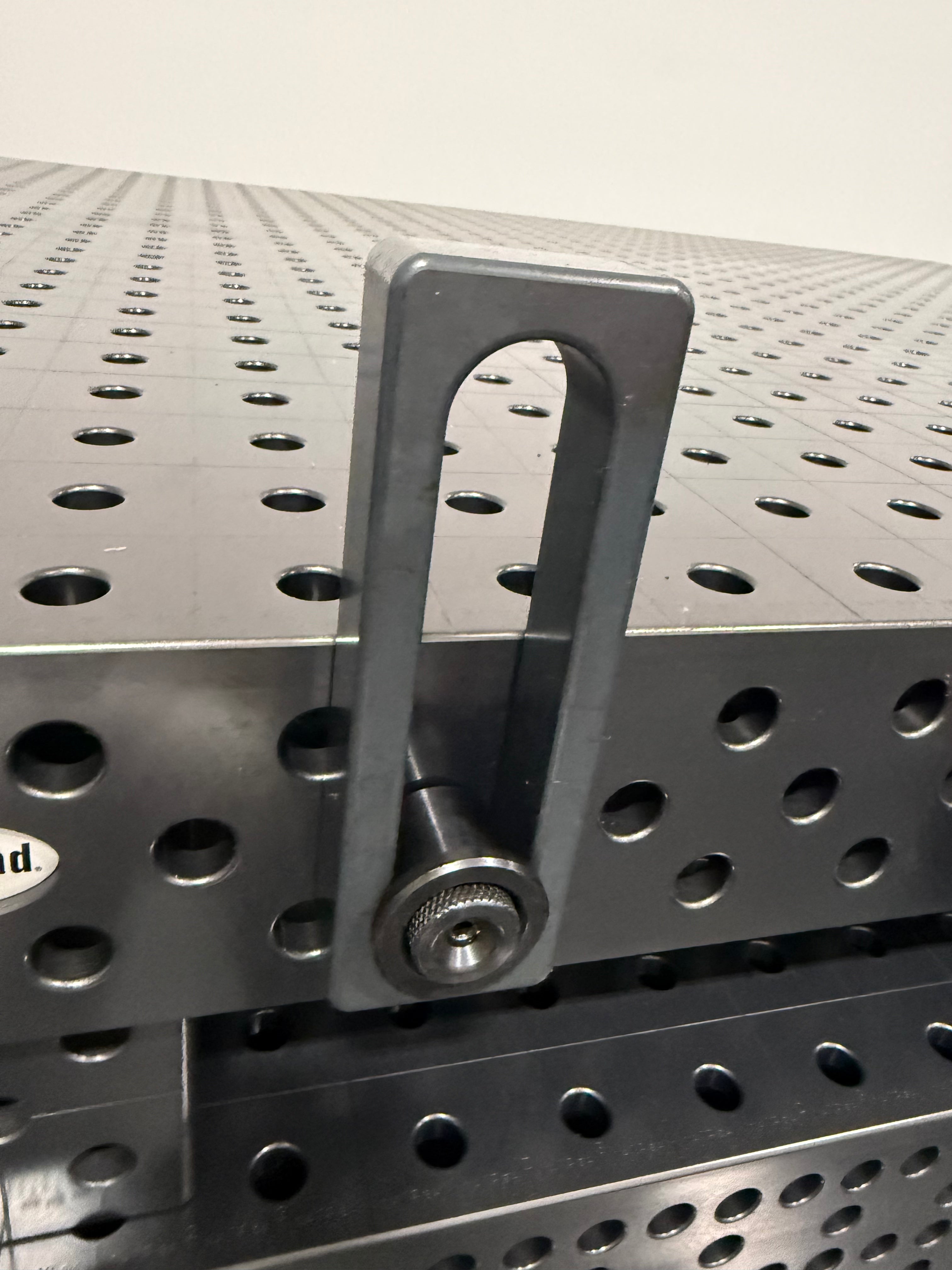

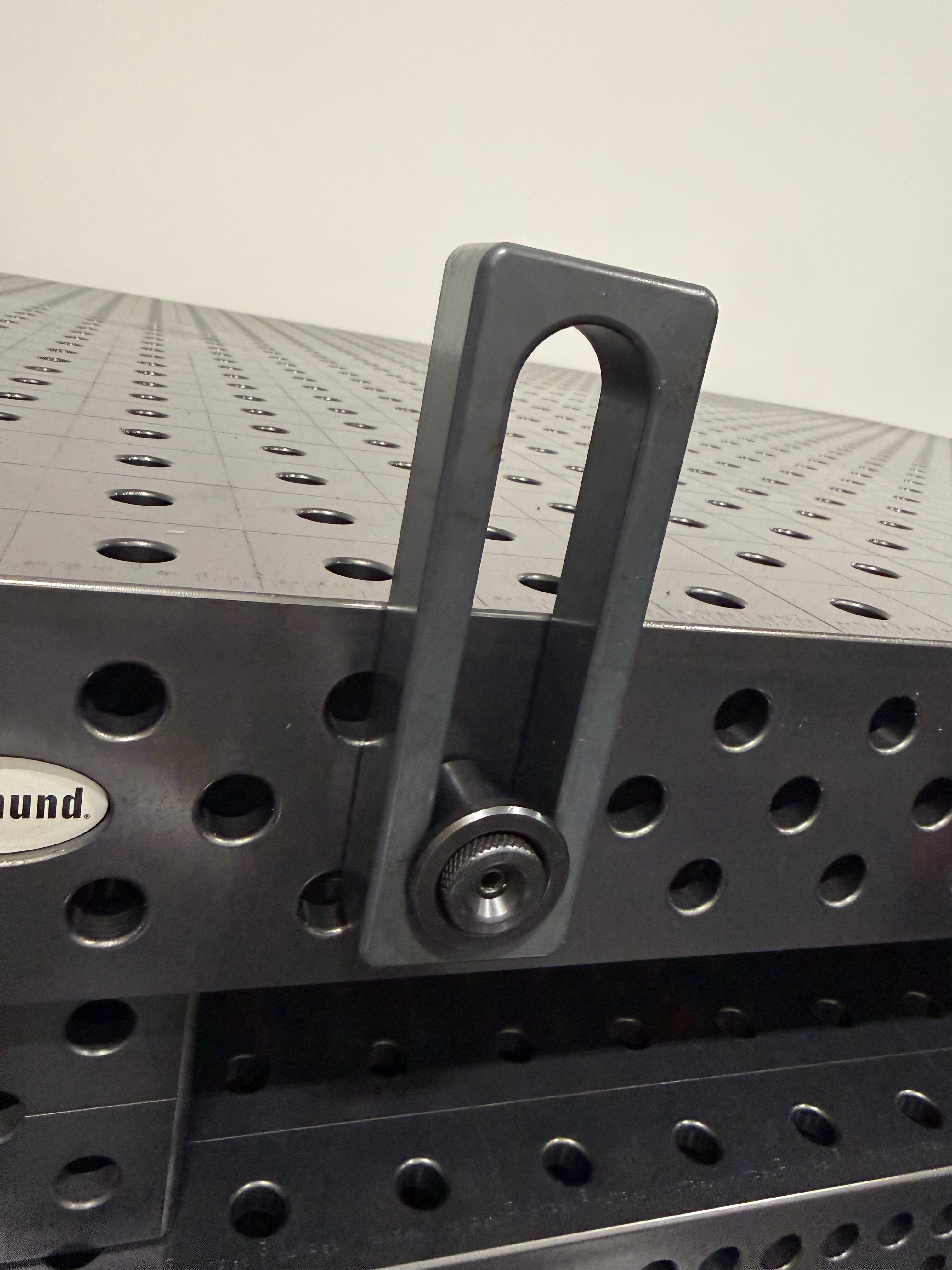

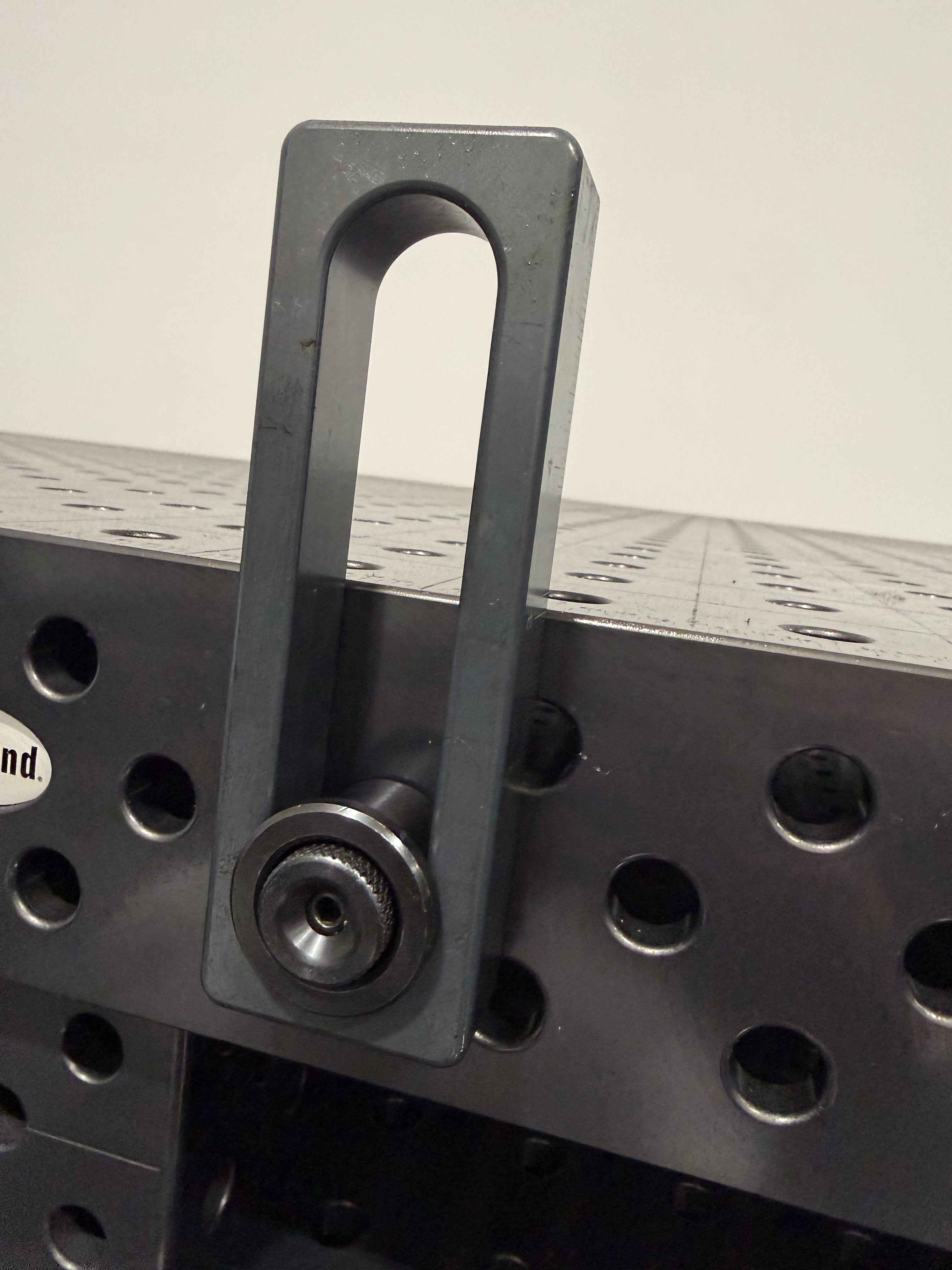

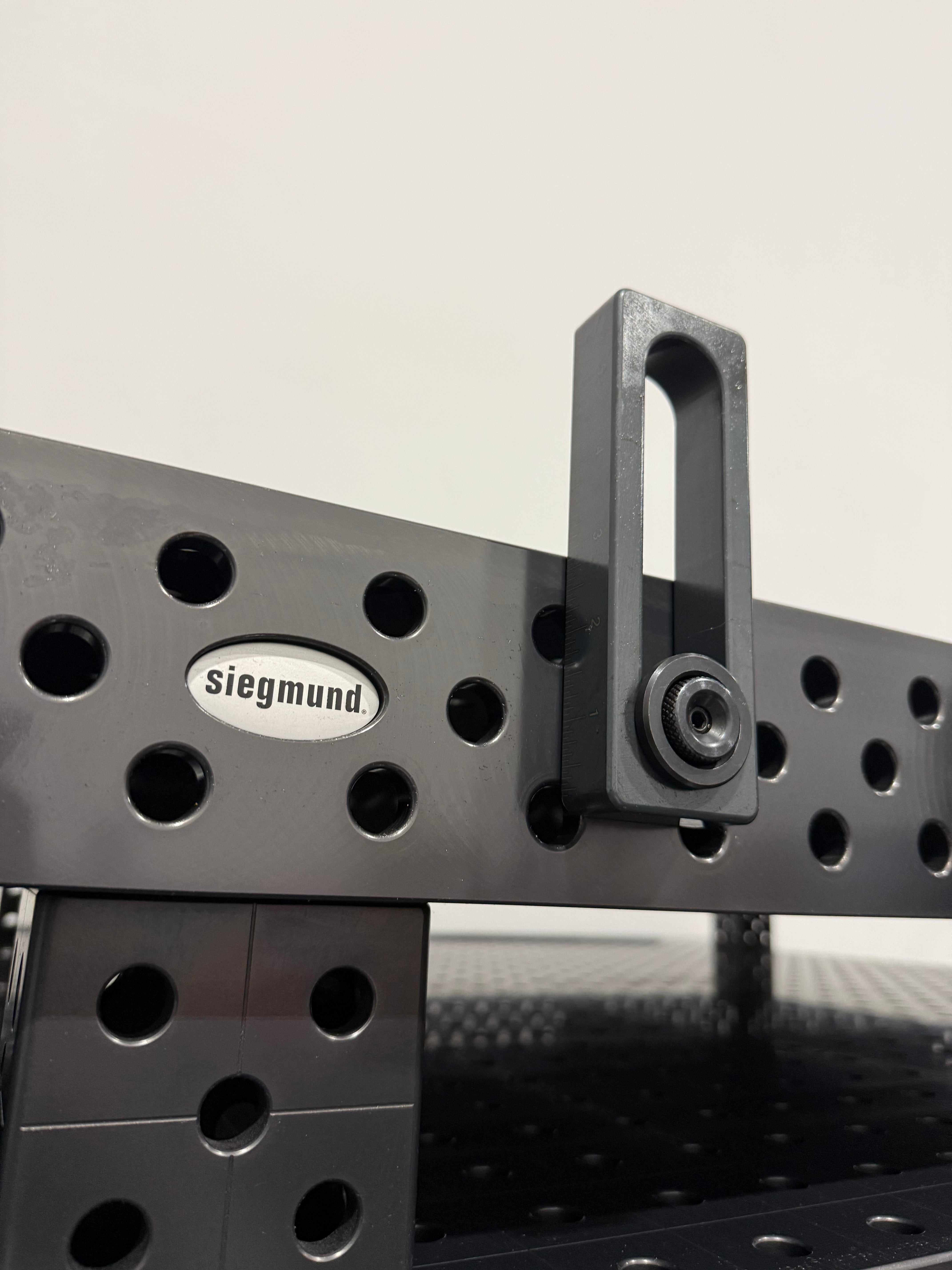

- The product images illustrate how the Reduction Bushing allows compatible System 28 accessories to be mounted on the corresponding System 16 welding table.
Specifications:
- Item No.: US000546
- Product Type: Reduction Bushing
- Series Compatibility: Siegmund System 28 Metric Series Components to Siegmund System 16 Metric Series Tables OR Siegmund System 28 Imperial Series Components to Siegmund System 16 Imperial Series Tables
- Application: Mounting System 28 Stops, Squares, And Locating Accessories On Compatible System 16 Tables
- Hole Reduction: 28mm to 16mm (1.10" Inches to 0.63" Inches)
- Length: 29mm (1.14" Inches)
- Outside Diameter: 36mm (1.42" Inches)
- Weight: 0.15 lbs. (0.07 kg.)
- Material: Steel
- Finish: Burnished
Common Uses:
Expand the versatility of your Siegmund System 16 welding table by utilizing larger, heavier-duty System 28 stops, squares, locating angles, and positioning accessories. This Reduction Bushing delivers a secure, precise connection between compatible System 28 accessories and the corresponding System 16 table, allowing shops to share premium tooling across multiple workstations while reducing equipment costs and maintaining the exceptional accuracy and repeatability expected from the Siegmund fixturing system.
