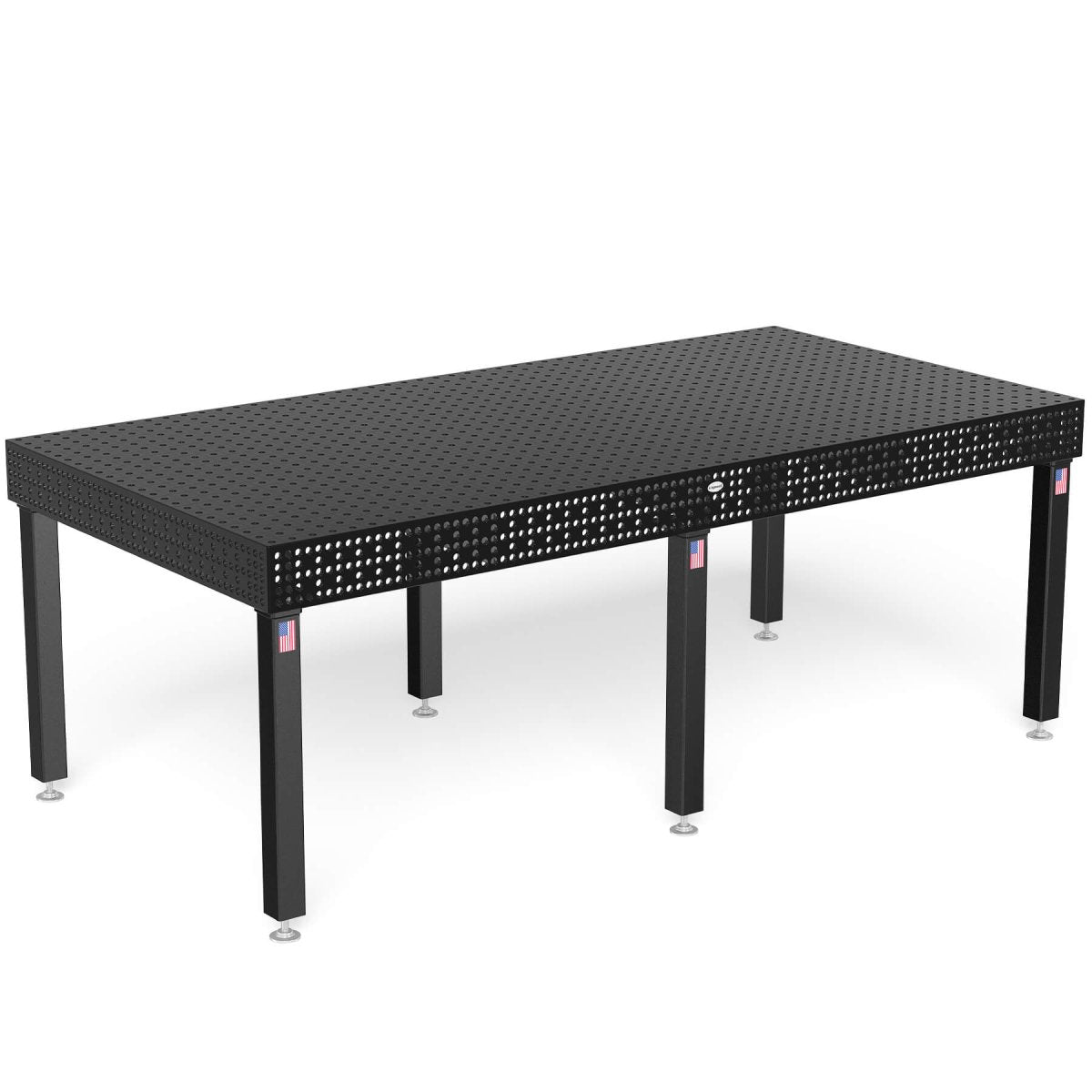

US160030.X7PL: System 16 4'x8' (48"x96") Siegmund Imperial PLUS Series (Inch) Welding Table with Plasma Nitration

Manufacturer: Siegmund
Part No. (SKU): US160030.X7PL + (x6) US160853.X
Current Availability in the USA: 24 In Stock
Series: System 16 Imperial Series Welding Tables
$7,000
$9,887
$7,000
Table Legs: 6 Standard Legs
Subtotal: $7,000

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

(Image is of a Siegmund System PLUS Series, 5'x10' Welding Table with a Siegmund Accessory Kit . These items are not included. This is being shown as an example.)

The System 16 Welding Table Series was created with Heavy Duty Applications in Mind.

All System 16 Professional Extreme Plus tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from tough hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16, 8.7 PLUS Imperial Series Welding Tables

Specs & Features
of the System 16, 8.7 PLUS Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 4' x 8'
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" – 1/2"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 280 – 340 Vickers
  • Official Siegmund Welding Table Part No.: US160030.X7PL
  • Maximum Weight Load: 7,544 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,256 lbs
  1. Boreholes on the surface 2" x 2" grid.
  2. Boreholes have a diameter of 16mm, Boreholes have a 5/8" Radius.
  3. Boreholes on table side 3 rows with 1" spacing, 2 rows with 2" spacing
  4. Height of table side is 5-7/8" (Borehole in Diagonal Grid.)
  5. INCH Scale Engraved on the Surface.
  6. Bottom of Structure has Reinforced Ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US160853.X

2,200 lbs.

30"

36"

Included

2. Alternative Height Leg

US160858.XX

2,200 lbs.

32"

38"

$0

3. Height Adjustable Leg

US160877.XX

2,200 lbs.

22"-38"

28"-44"

$77

4. Leg with Casters and
Locking Brakes

US160860.XX

440 lbs.

30"

36"

$84

5. Height Adjustable Leg
with Casters and Locking Brakes

US160879.XX

440 lbs.

24"-36"

30"-42"

$129

Siegmund System 16 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US160853.X
  • Leg Height: 30"
  • Table Height: 36"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Alternative Height Siegmund Leg(s)

  • Item No.: US160858.X
  • Leg Height: 32"
  • Table Height: 38"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0
  • Cost Per 6 Leg Set: $0

3. Height Adjustable Siegmund Leg(s)

  • Item No.: US160877.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 28" - 44"
  • Fine Adjustment:1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $77
  • Cost Per 6 Leg Set: $462

5. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 30" - 42"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $129
  • Cost Per 6 Leg Set: $774

4. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US160860.XX
  • Leg Height: 30"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $84
  • Cost Per 6 Leg Set: $504

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 16
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles

Sold out

Sold out

Sold out

Sold out

Sold out

Featured Siegmund Videos

of the System 16 Welding Tables

Featured Siegmund Videos
of the System 28 Welding Tables

Impact Test Standard Weld Table vs Siegmund Weld Table

Why Our Welding Tables are Plasma Nitrided

The Strength of a Siegmund Welding Table

"You Can Produce Everything..."

This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 415,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 585,000+ Instagram Followers and over 583,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (909)476-8007
Email: Sales@WeldingTablesAndFixtures.com

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: Sales@WeldingTablesAndFixtures.com

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
Reviews
Financing
F.A.Q.
Catalogs

Similar Siegmund Products

Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000
Example product title
$7,000
$9,887
$7,000

Recently Viewed Products

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Doug Swinehart
great table

The table and the clamping package work very well.

B
Bob McClain
Amazing Fixture Table!!

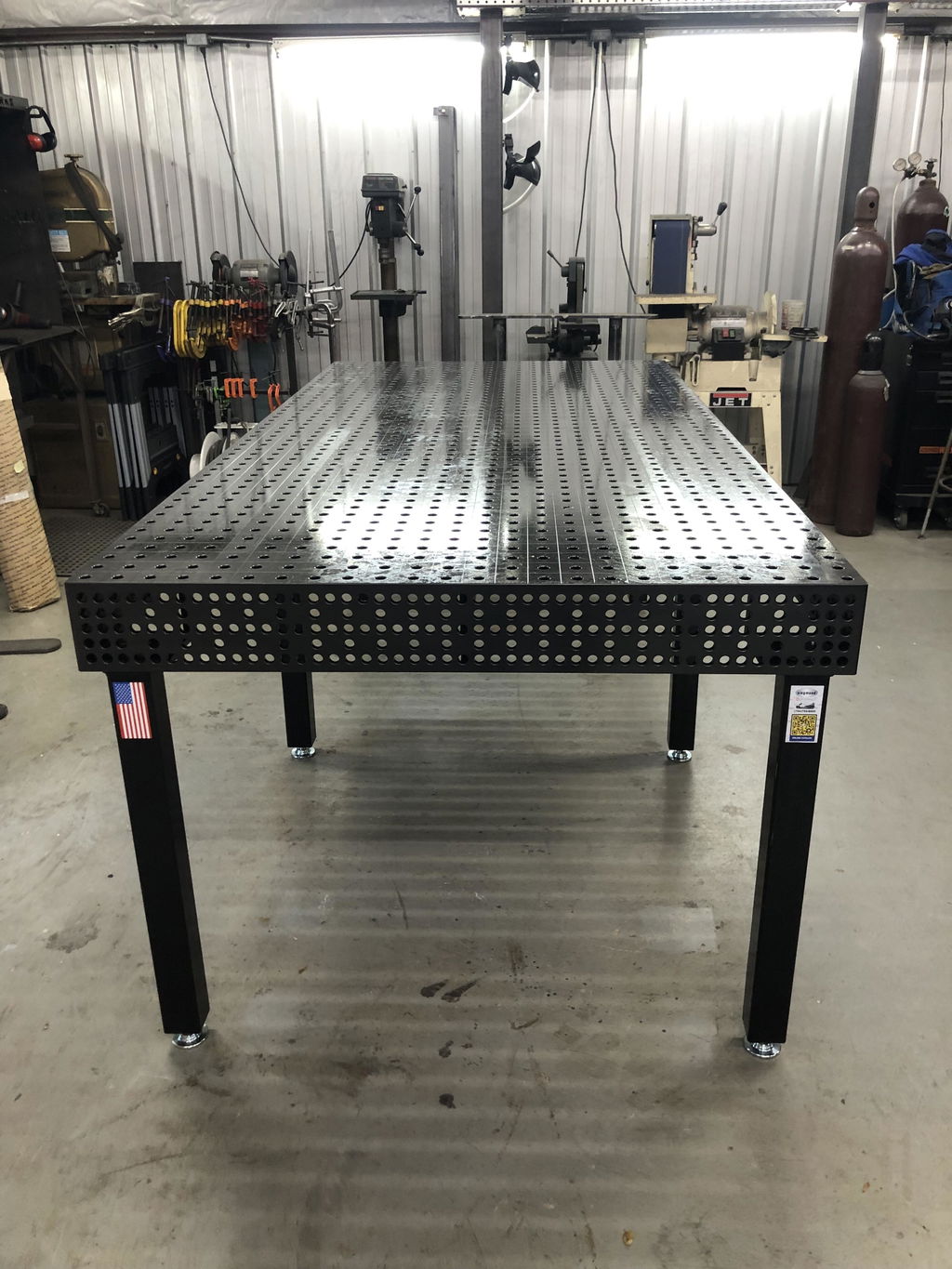

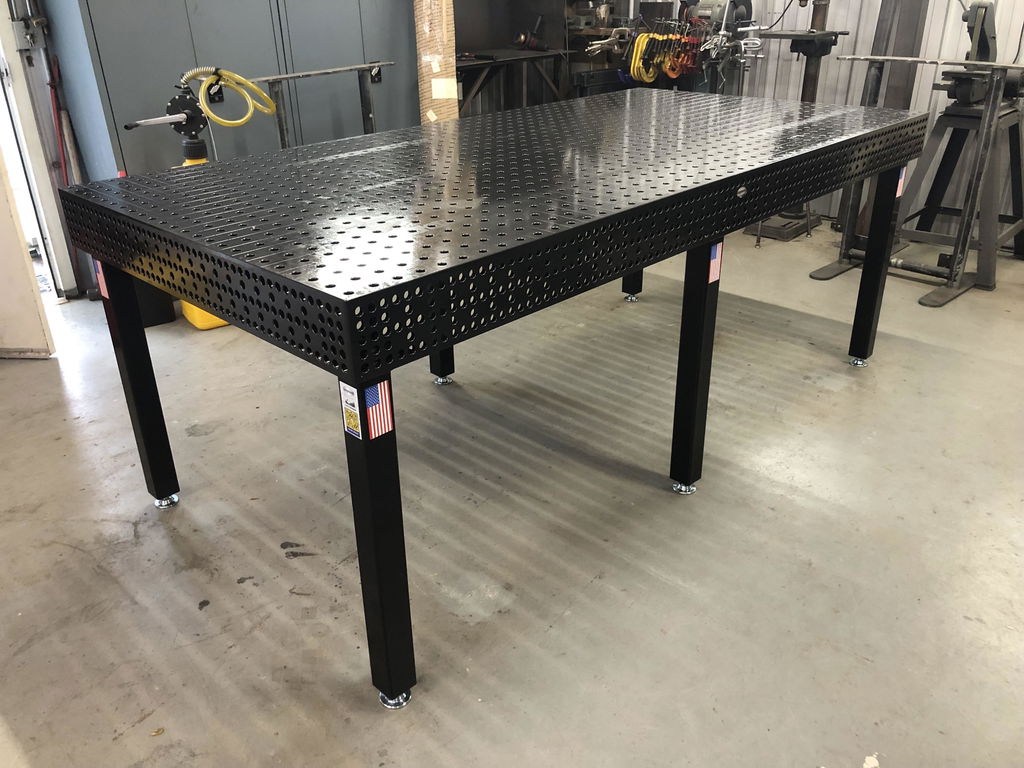

I have been looking at welding tables for a couple of years now. I always felt that the Sigmund table was the benchmark for all welding tables. The opportunity finally came my way to justify buying a table. I wasn't interested in the tab and slot do it yourself tables. I'm not criticizing them but I wanted to hold out for something better. I knew that I wanted a Sigmund table and fixturing components. I just feel they are the best. I called to discuss my needs and was greeted with a sales rep (Albert) who helped me pick and choose my components and got me the best deal available. I ordered a Series 16 4' x 8' Plus table and a fixturing kit. I tend to buy up when buying tools and I was concerned that the series 16 was going to be a little too light duty. But after getting the table in my shop, it's extremely tough and sturdy. I placed the order on a Tuesday and had it in my shop by Friday! It was packaged extremely well and fortunately no freight damage. I couldn't be happier with my purchase! It's almost too nice to weld on! If you're in the market for a table, you wont be disappointed with the Sigmund table or the customer service at Quantum Machinery.
