US160190.N: Cast Iron Corner Connection (Nitrided)
- Product SKU: US160190.N
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US160190.N: Cast Iron Corner Connection (Nitrided) for the Siegmund System 16 Imperial Series (INCH) Welding Tables
The perfect extension for your workspace. Flexible, Compatible and Versatile.

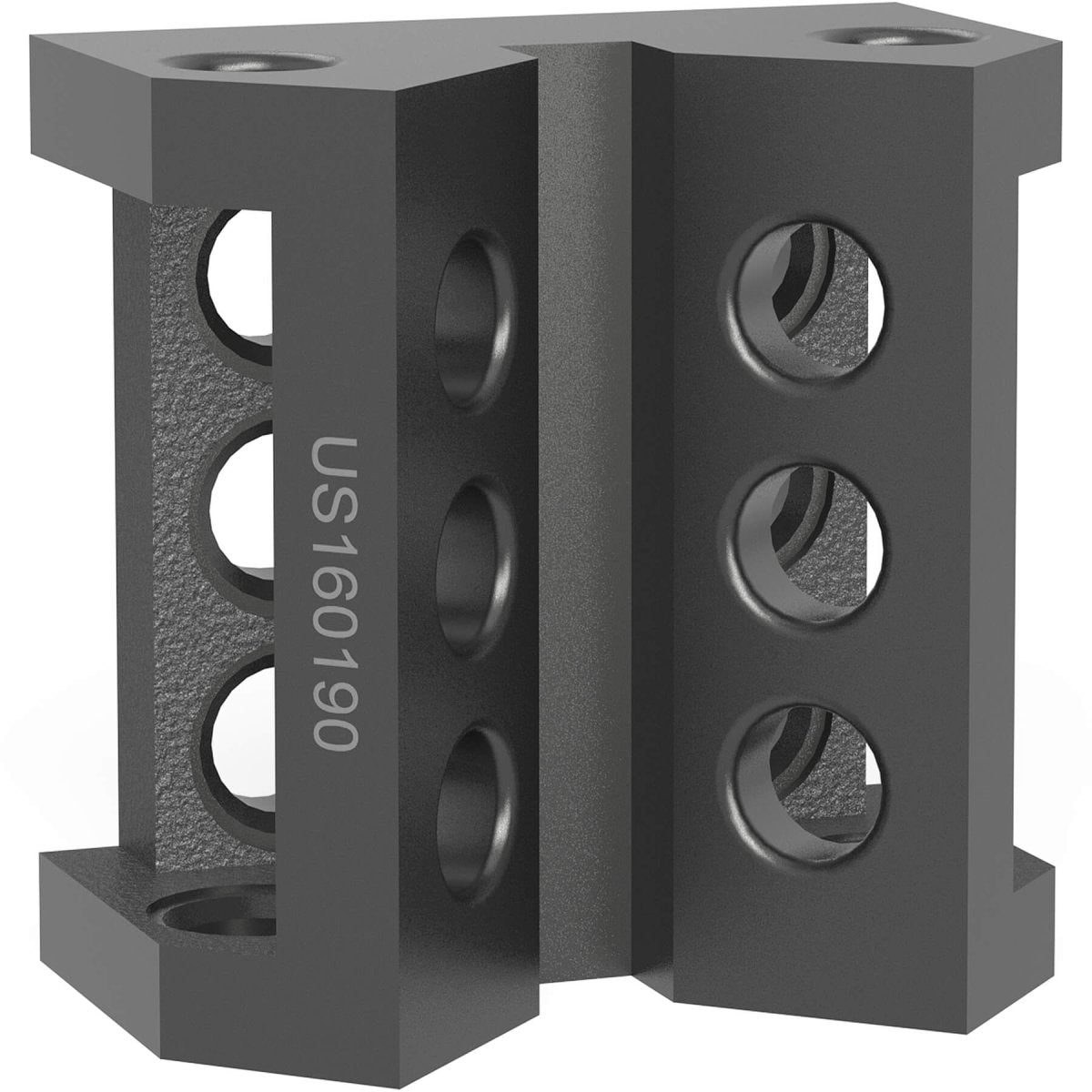

The Siegmund Standard Cast Iron Corner Connection provides more working space as there is the possibility to extend the table diagonally with a square at 45°. The Corner Connection can be firmly set and is compatible as a prism, stop or connection piece to all other squares and u-shape squares. The Corner Connection is extremely stable and provides for connecting, stopping and clamping possibilities.
Specs and Features:
- Item No.: US160190.N
- Finish: Nitrided
- Material: GGG40
- Diagonal Table Extension: at a 45° Angle
- Length: 4"
- Width: 2-9/16"
- Height: 3-15/16"
- Weight: 3.7 lbs.
