US160571: Short Adjustable Fast Clamping Bolt (Burnished)
- Product SKU: US160571
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories

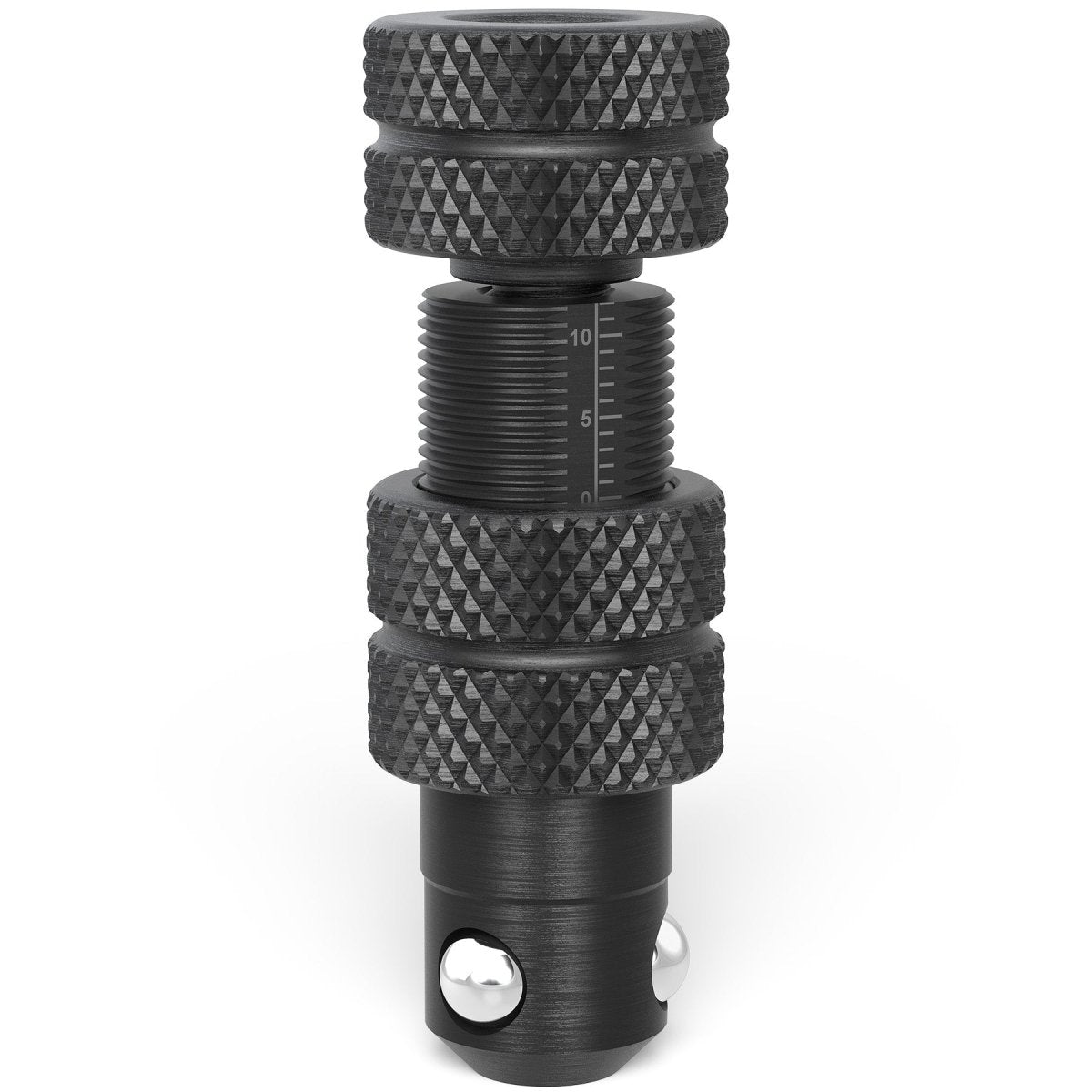

Item No. US160571: Short Adjustable Fast Clamping Bolt (Burnished) for the Siegmund System 16 Imperial Series (INCH) Welding Tables

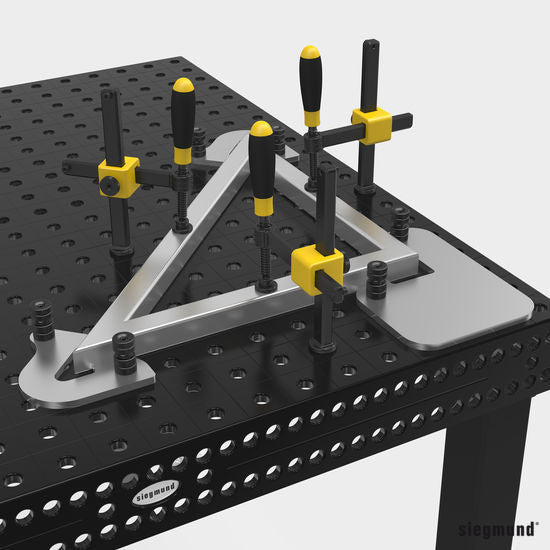

Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.

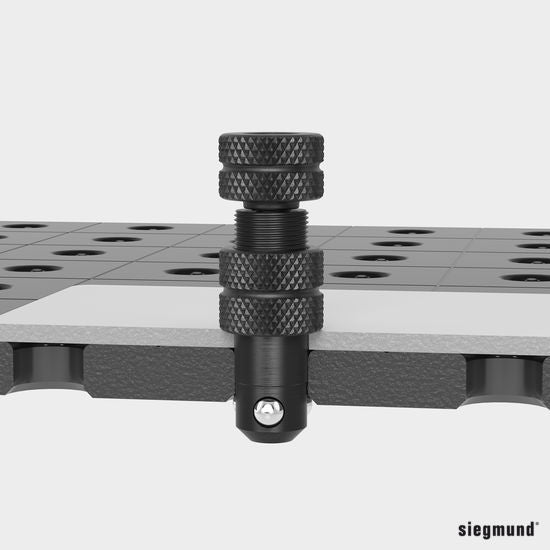

The clamping height is individually adjusted by a rotating a knurled thimble ring.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Suitable for aluminum profiles.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
- For Clamping 2 Siegmund Components
- Material Type: Burnished
- With Screw Top
- Length: 3.0"
- Shearing Force: 55 kN
- Tensile Force: 10 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Diameter: 16mm (5/8")
- Weight: 0.29 lbs.
