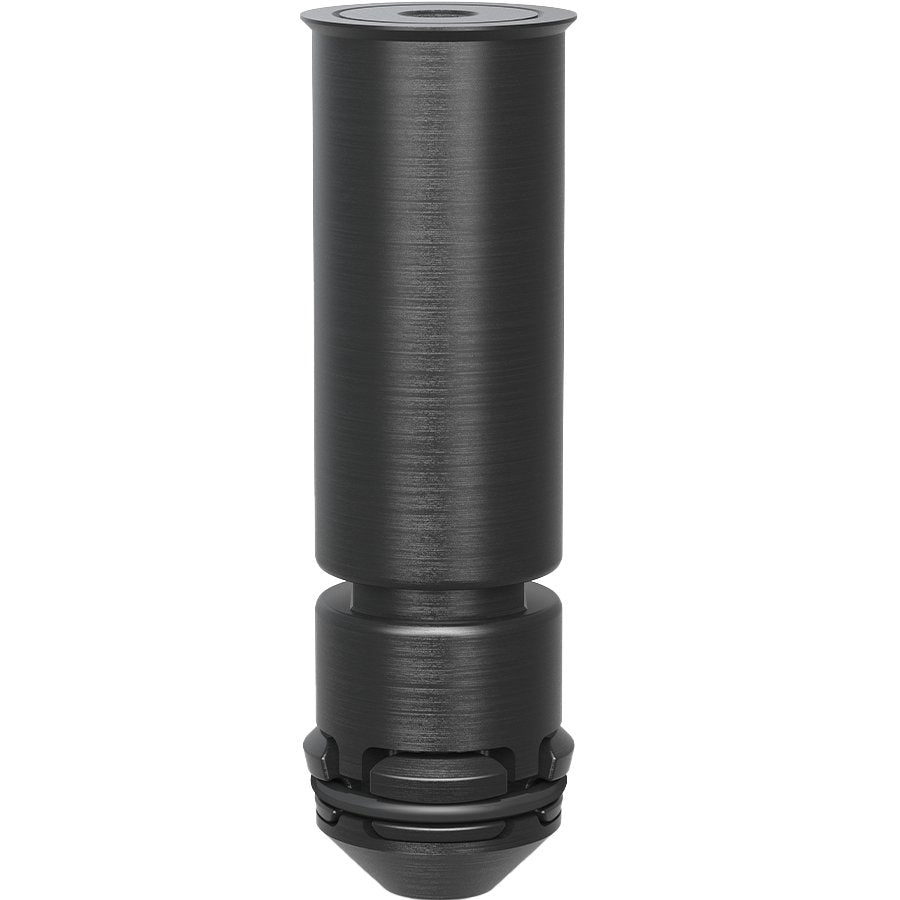

US160595.4: Quadruple Areal Flush Mount Clamping Bolt

Manufacturer: Siegmund
Part No. (SKU): US160595.4
Current Availability in the USA: 60 In Stock
Series: 16mm Imperial Series Welding Table Accessories
$66
$92
$66
Subtotal: $66

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

The System 16 Areal Flush Mount Clamping Bolt Enables Fast, Powerful, and Effortless Clamping.

With the Areal Flush Mount Clamping Bolt From Siegmund You Can Clamp Soft Materials Such as Simple Aluminum Alloys, Copper Etc. Powerfully and Material Friendly. Our Recommendation for Clamping in Aluminum Parts.

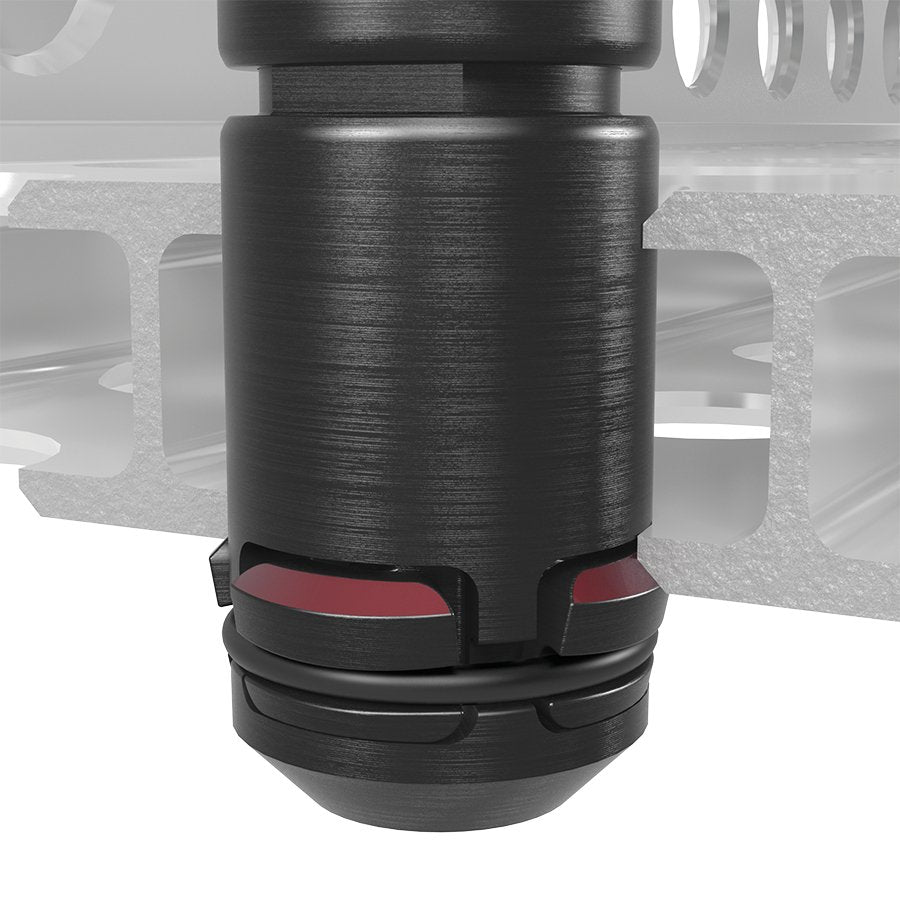

NEW FOLD OUT ELEMENTS

  • Flat Interlocking and Even Force Distribution.
  • Developed for Aluminum and Other Soft Materials.
  • Fold-out Elements Made of Through-hardened Tool Steel.
  • O-ring Made of Heat Resistant and Heavy-duty Material.

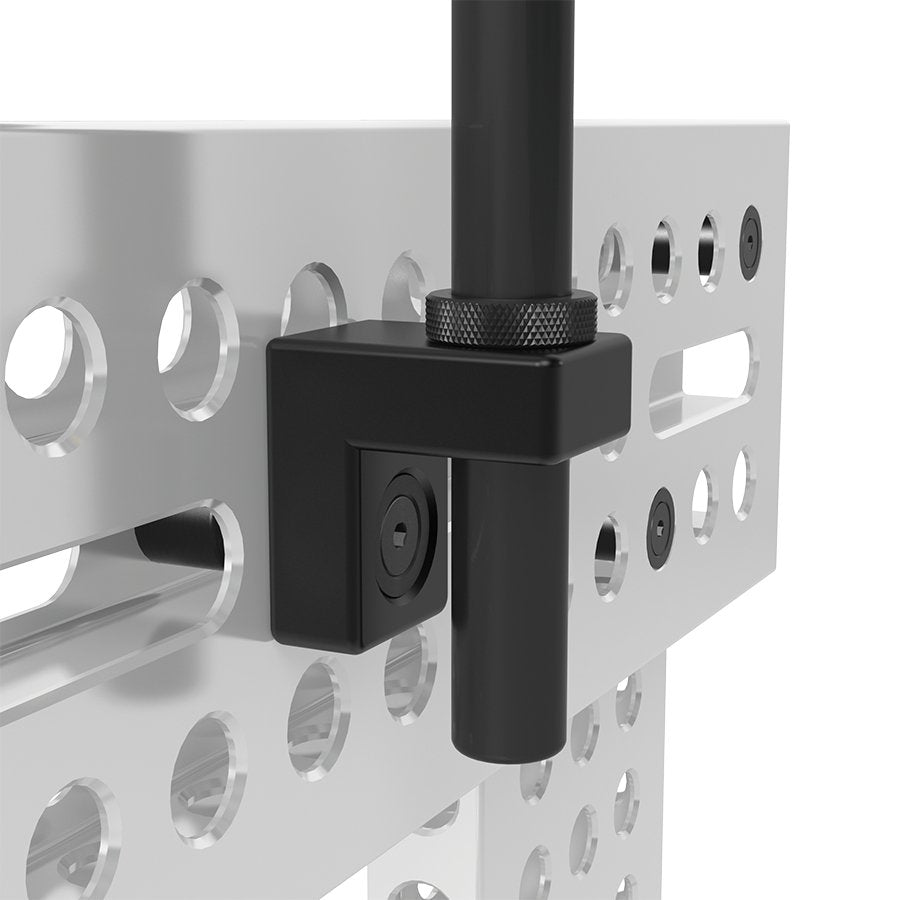

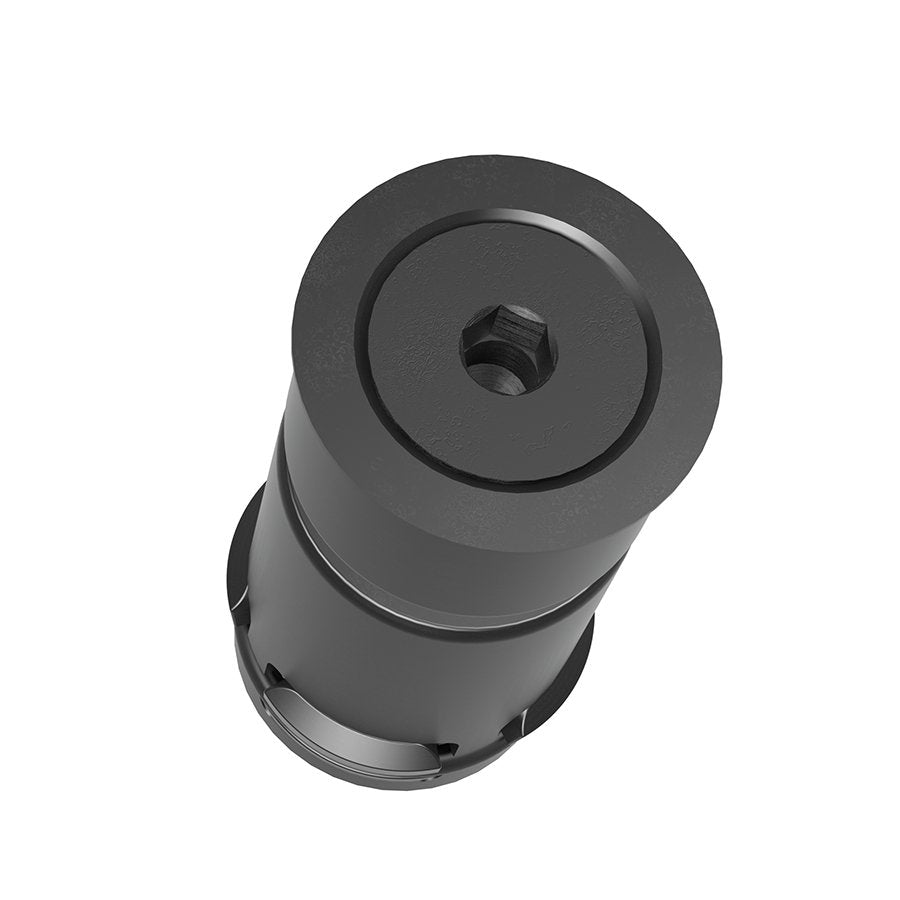

COUNTERSUNK HEAD

  • Countersunk Connection of Components.
  • To Avoid Interfering Contours.
  • With Hexagon Socket.

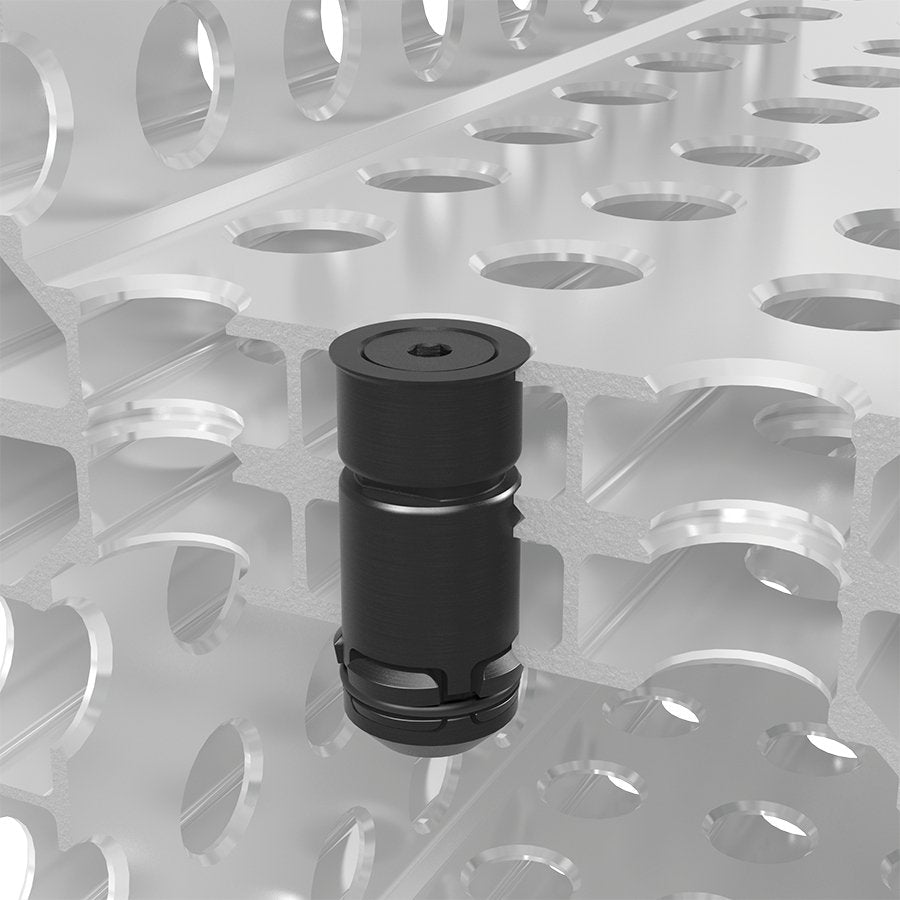

SECURE CONNECTIONS

  • Optimized for Use in Aluminum Profiles, 4 Components. Clamping Range is 1-13/16" – 1-15/16".
  • Without O-ring Slot for a Smooth Surface of the Bolt Body.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.

Specs and Features
of the System 16 Imperial Series
Quadruple Areal Flush Mount Clamping Bolt
Item No. US160595.4

Specs and Features
of the System 16 Imperial Series
Quadruple Areal Flush Mount Clamping Bolt
Item No. US160595.4

Length: 2-1/4"

Weight: 0.18 lbs.

Diameter: 5/8"

Tensile Force: 670 lbf.

Shearing Force: 10,100 lbf

Tightening Torque Steel: 7 lbf.

Tensile Force Aluminum: 450 lbf.

Tightening Torque Aluminum: 7 lbf.-ft
