US160604: Universal Pipe Clamp (Burnished)
- Product SKU: US160604
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories

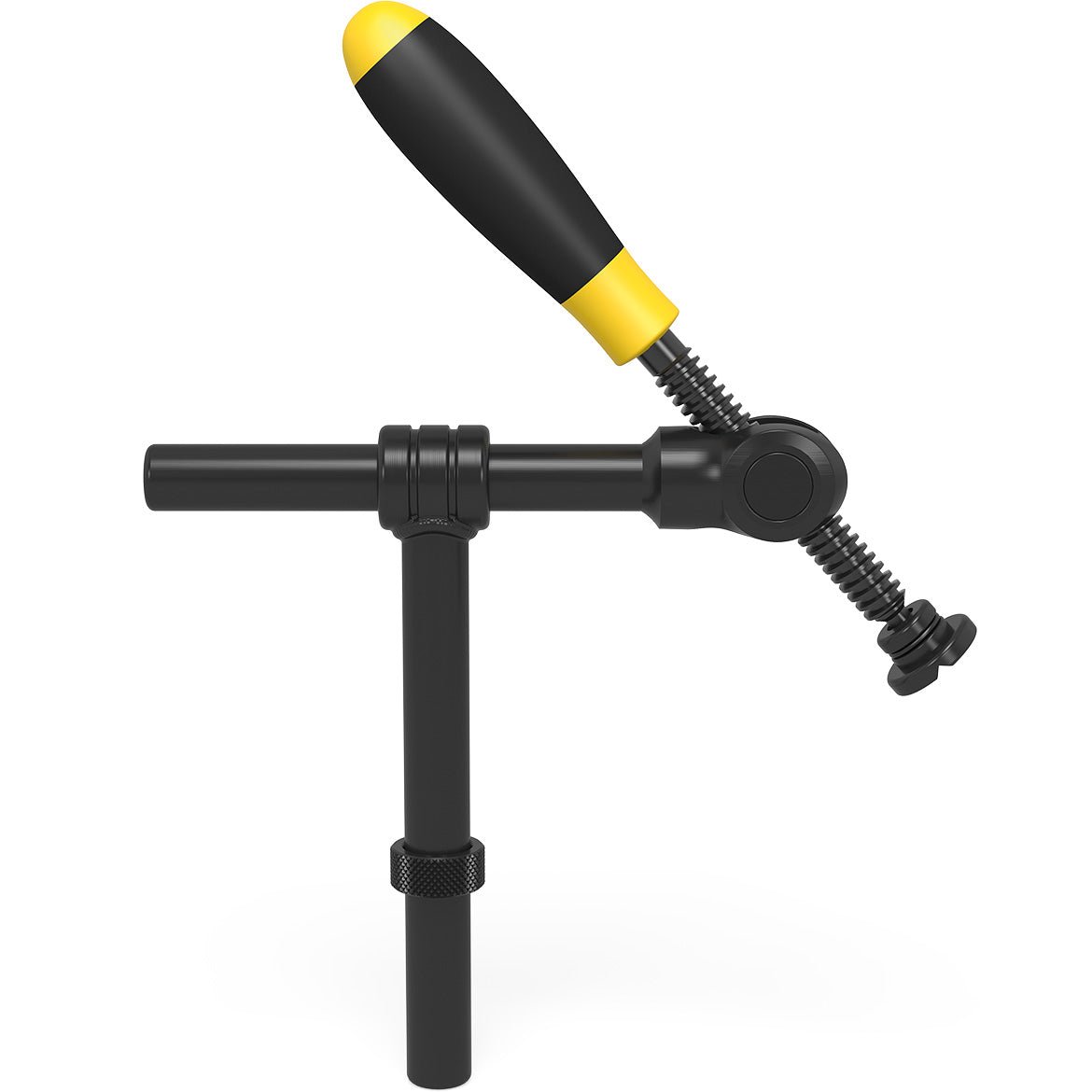

Item No. US160604: Universal Pipe Clamp (Burnished) for the Siegmund System 16 Imperial Series (INCH) Welding Tables

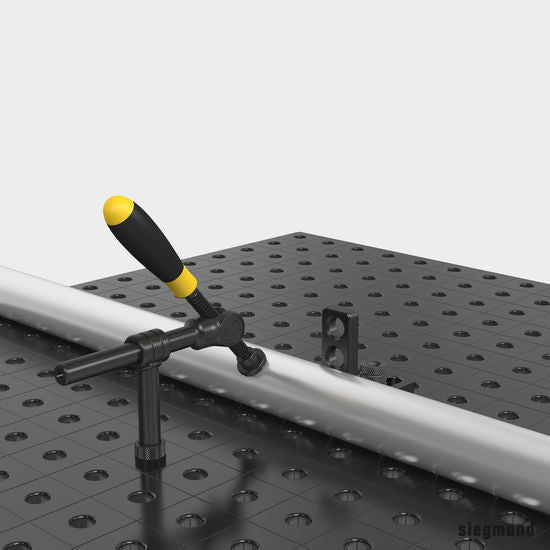

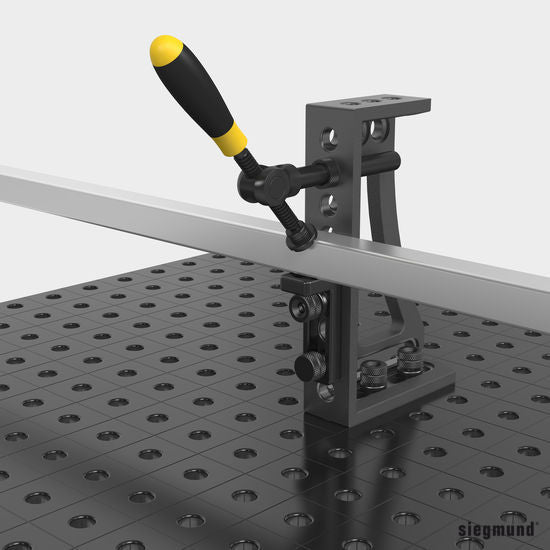

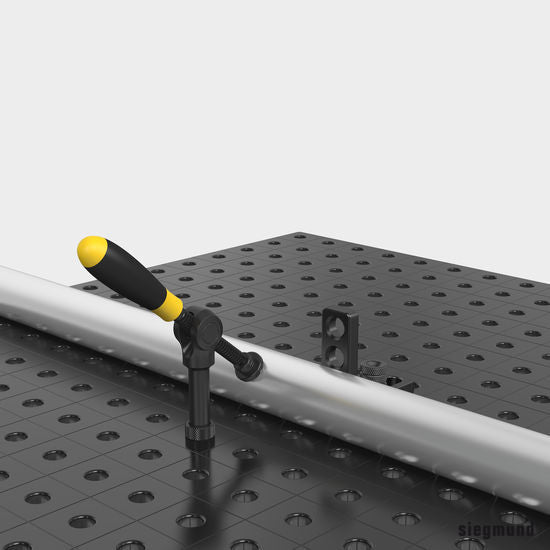

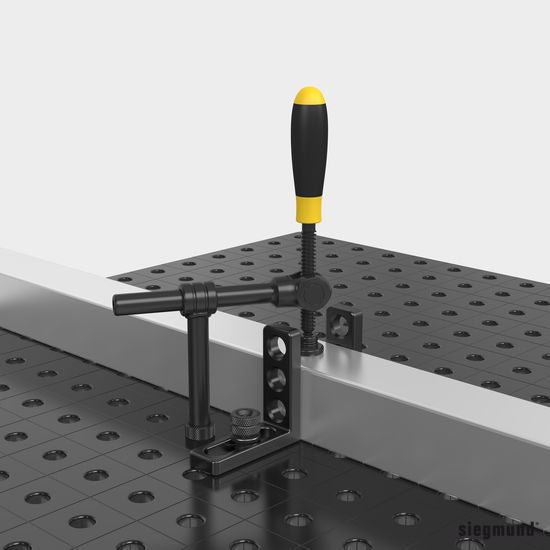

Pipe Clamp Universal, with swiveling Arbor enables flexible clamping at a + / - 42 degree angle. This Pipe Clamp combines the advantages of conventional 45° or 90° clamps. It can be used at an angle as well as straight, resulting in additional clamping options and a more variable clamping range.
The horizontal round tube with a length of 150 mm is fully adjustable and creates, combined with the swiveling arbor, a variable clamping range. The length of the vertical pipe is 150 mm.
A long lifetime and efficiency is guaranteed by the burnished material, as well as the option to order replacement parts individually.
To integrate the vertical pipe into the system bore holes, an adjusting ring is used (Item No. 160653).
- Material Type: Burnished
- Maximum Load: 0.6 kN
- Ball Diameter Spindle: 0.315" O.D.
