US160620: Basic Screw Clamp (Burnished)

Manufacturer: Siegmund
Part No. (SKU): US160620
Current Availability in the USA: 152 In Stock
Series: 16mm Imperial Series Welding Table Accessories
$69
$89
$69
Subtotal: $69

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

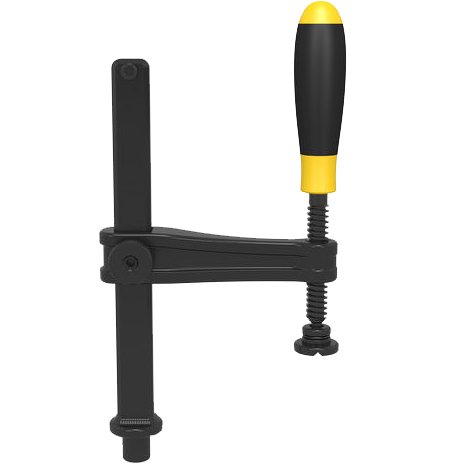

The System 16 Basic Screw
Clamp Enables Fast, Powerful
and Effortless Clamping.

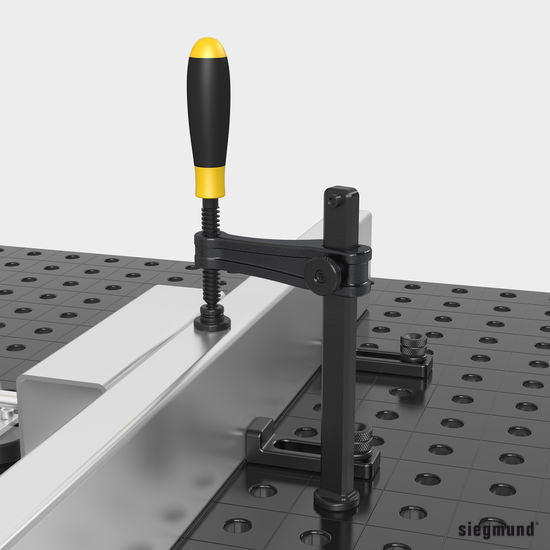

Basic Screw Clamp, Serves as a Simple and Sturdy Clamping Element. The Distance Between the Screw Clamp and the Welding Element is Adjustable by Rotation. By Simply Changing the Prisms, Different Materials can be Fastened.

NEW HANDWHEEL DESIGN

  • With the New Handwheel on the Cast Iron Cross, the Height can be Adjusted Within Seconds.
  • The Grip Design Allows the Adjusted Height to be Locked in Place.

VARIOUS PRISMS AVAILABLE (ADDITIONAL PRISMS ARE OPTIONAL)

  • The Interchangeable and Compact Prism Allows for Optimal Grip.
  • An Array of Prisms from Steel to Nitried can be used for Any Unique Job.
  • Additional Prisms that can be used are the US160660.E, US160658.E, US160659.PA, US160657.1.N, US160660, and US160660.PA (Additional Prisms are Optional).

REINFORCED BARS

  • The horizontal Bar has a length of 5.1"
  • The Length of the Vertical Bar is 7.9"
  • The Vertical Bar is Reinforced with Harden Burnished Steel.

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Friction Placed Design Allows Any Piece to be Held in Place Tightly.

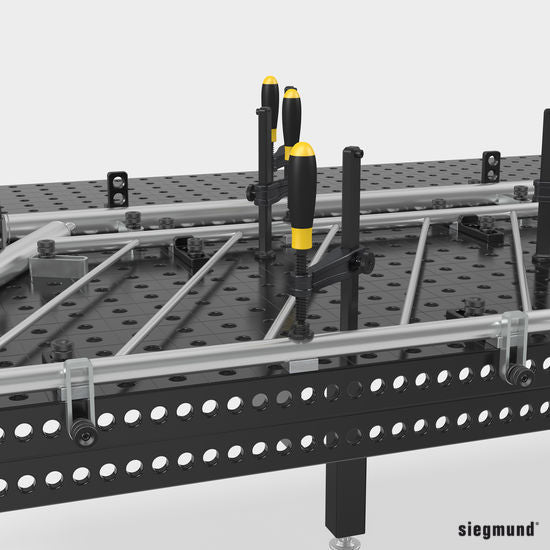

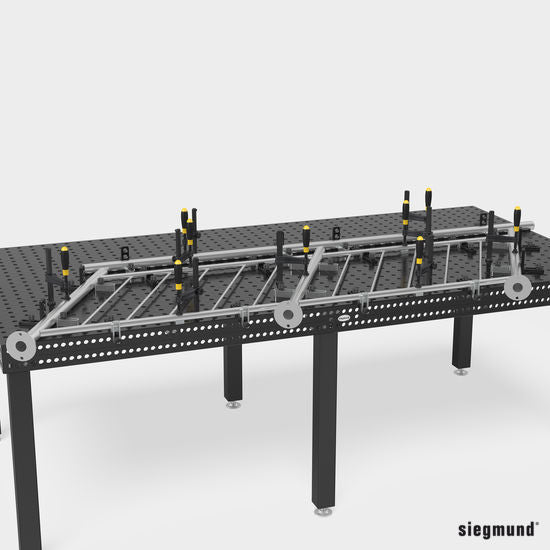

  • The Clamp can be Adapted and Placed in Any System 16 Imperial Borehole Located on Siegmund Welding Tables or Stops.

Specs and Features
of the System 16 Imperial Series
Basic Screw Clamp
Item No. US160620

Specs and Features
of the System 16 Imperial Series
Basic Screw Clamp
Item No. US160620

Width: 5-1/16"

Height: 7-7/8"

Finish: Burnished

Weight: 2.09 lbs

Ball Diameter Spindle: 5/16"

Max. Holding Force: 562 lbf.
