US160645.1.A: 2" Ø Vario Prism 90°/120° with Screwed-In Collar (Aluminum)
- Product SKU: US160645.1.A
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories

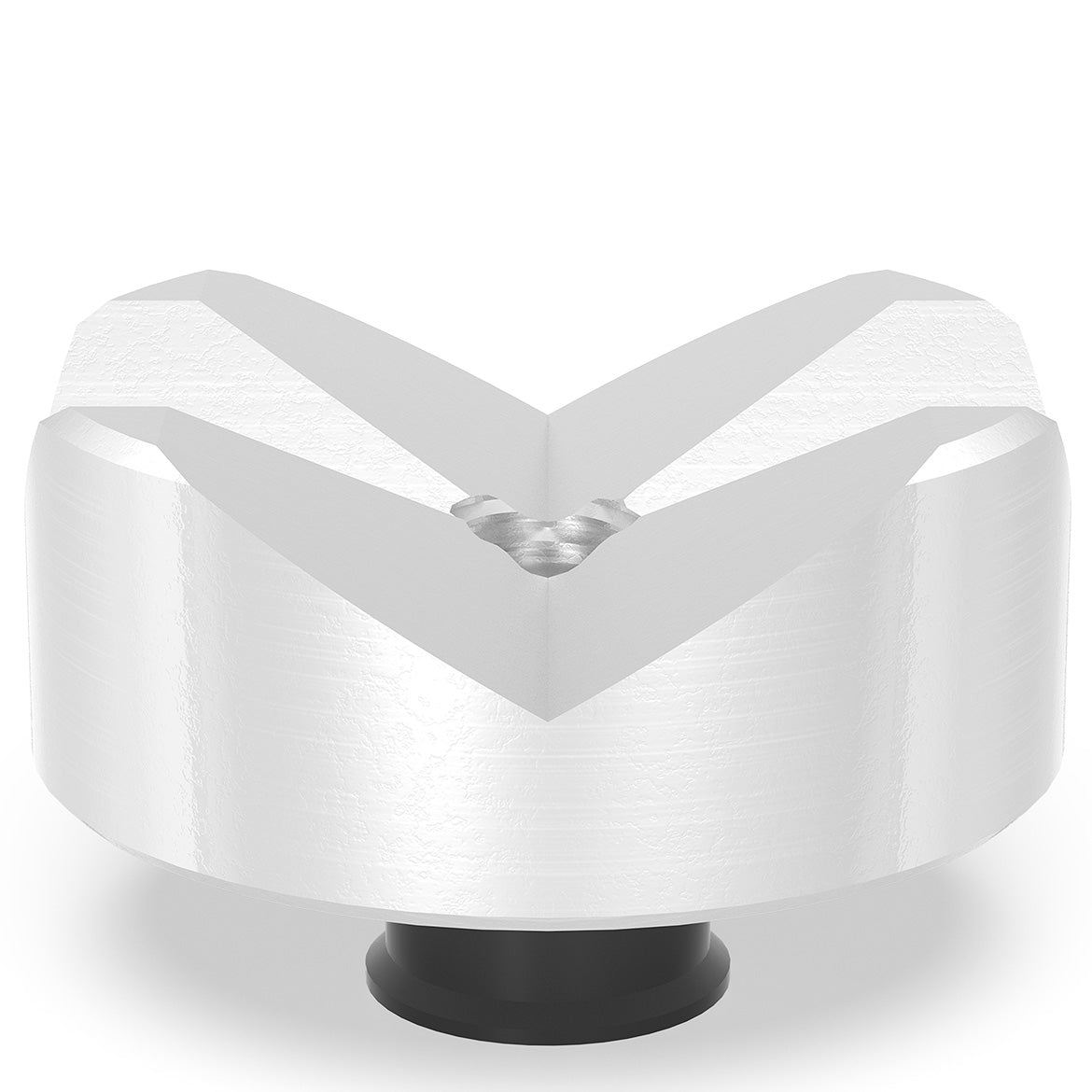

Item No. US160645.1.A: 2" Ø Vario Prism 90°/120° with Screwed-In Collar (Aluminum) for the Siegmund System 16 Imperial Series (INCH) Welding Tables
The Siegmund 2" Ø Vario Prism is suitable for both rounded and 45° twisted square pipes with a diameter up to 3.15", due to its 90° and 120° angles. In addition, the prism can be universally used for all 5/8" / 16mm bore holes.
The prism with screwed-in collar can be fastened in the bore holes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
Polyamid Prisms are used for scratch-prone surfaces.
- Material Type: Aluminum
- M10 Thread for Example Prism Extensions Item No. US160649
- Height: 0.78"
- Diameter: 2"
- Weight: 0.15 lbs.
