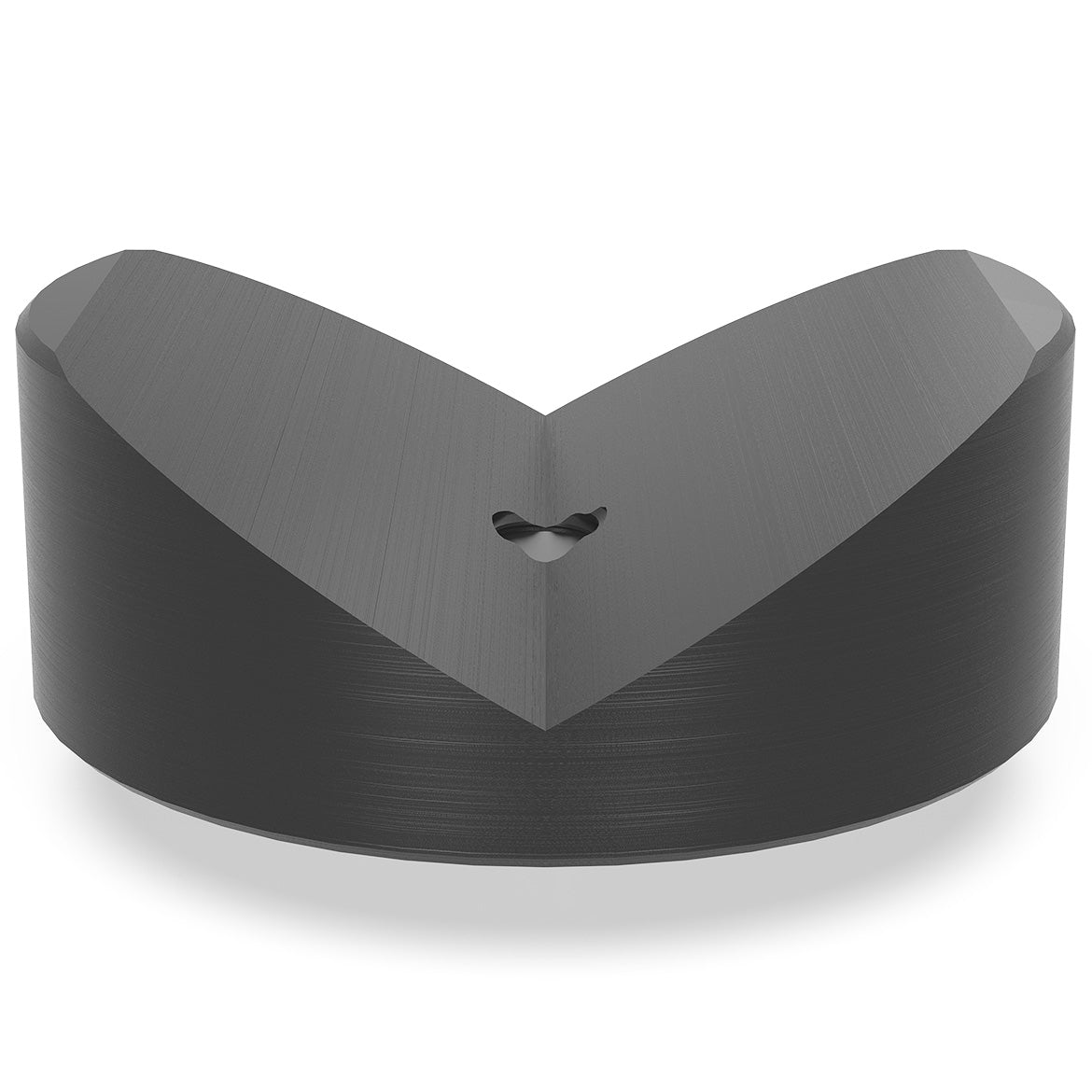

US160652.1: 3.15" Ø Prism 120° with Screwed-In Collar (Burnished / Nitrided)
- Product SKU: US160652.1
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US160652.1: 3.15" Ø Prism 120° with Screwed-In Collar (Burnished / Nitrided) for the Siegmund System 16 Imperial Series (INCH) Welding Tables.
3.15" Ø Prism with 120° angle, suitable for pipes with a diameter of up to 4.7". The Prism creates a stable surface especially for round pipes and can be used for all 5/8" (16mm) bore holes.
The prism with screwed-in collar can be fastened in the bore holes. For free positioning of the prism independent of the hole grid you can easily unscrew the collar from the prism. If necessary, the working height of the prism can be varied by a prism extension.
Polyamid Prisms are used for scratch-prone surfaces.
- Material Type: Burnished / Nitrided
- The M10 Thread for the Example Prism Extensions is : Item No. US160649
- Height: 1.18"
- Diameter: 3.15"
- Weight: 1.7 lbs.
