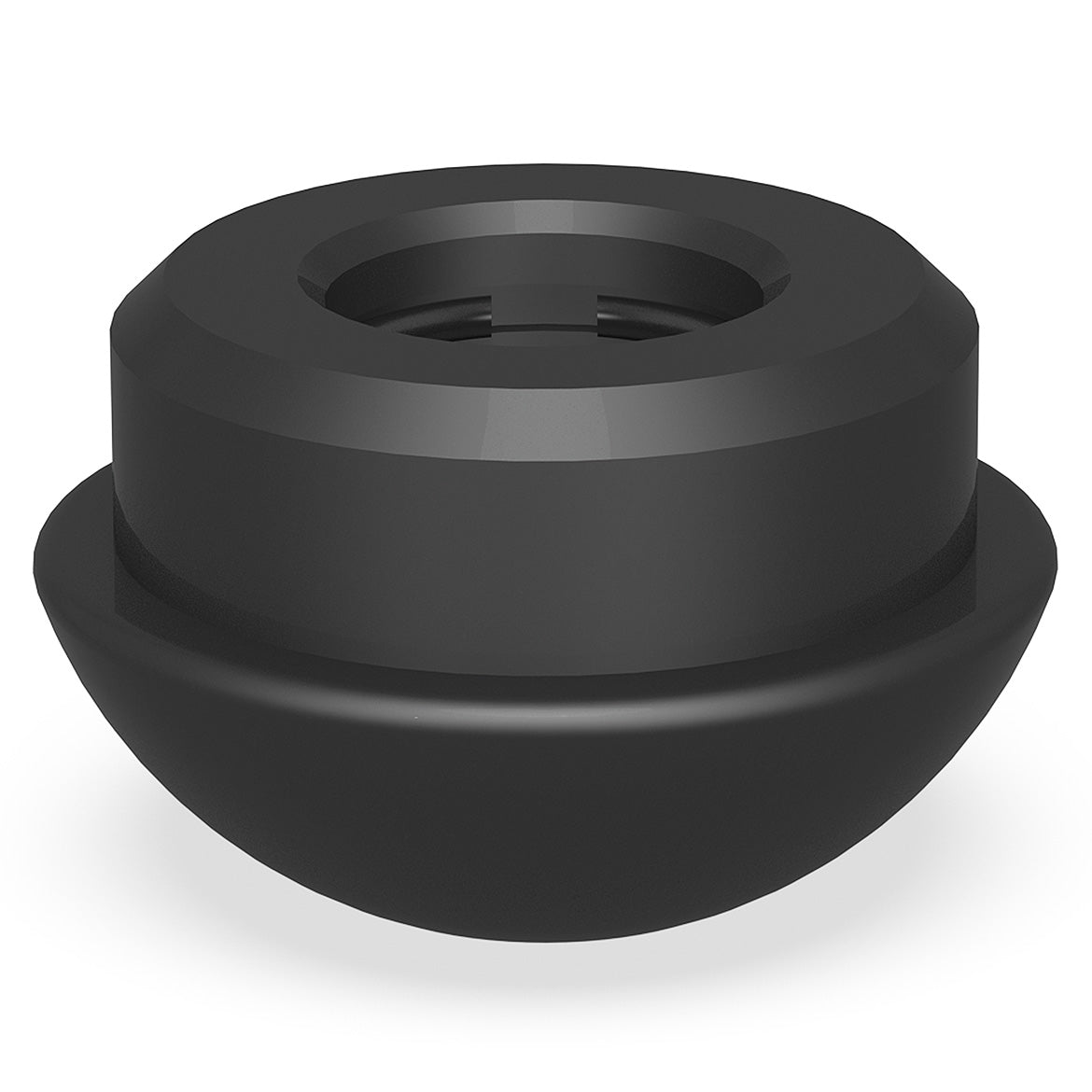

US160660.PA: Pressure Ball for Screw Clamps (Polyamide)
- Product SKU: US160660.PA
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US160660.PA: Pressure Ball for Screw Clamps (Polyamide) for the Siegmund System 16 Imperial Series (INCH) Welding Tables
Pressure Ball for Screw Clamps, especially designed for clamping in corners or grooves. Due to its location at the ball head of the threaded arbor, the prism is movable, and can therefore be precisely mounted to the work piece.
It can be replaced by simply removing it from the ball head.
The Pressure Ball is available in various materials. The polyamide Pressure Ball is used for scratch-prone surfaces. The stainless steel Pressure Ball is used for scratch-resistant metals (rust prevention).
- Material Type: Polyamide
- For Arbor with Trapezoid Thread 0.47"x0.120" (12x3mm)
- Height: 0.49"
- Diameter: 0.78"
- Weight: 0.04 lbs.
