Item No. US164600
(704) 703-9400
Currency
All in stock welding tables & accessories ship out in just 1 to 3 Business days
Earn [points_amount] when you buy this item.
The System 16 Welding Workstation is the Ideal Choice for Fine Detail Applications.
All System 16 Workstations feature the latest upgrades in aesthetics, versatility, and durability.
Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

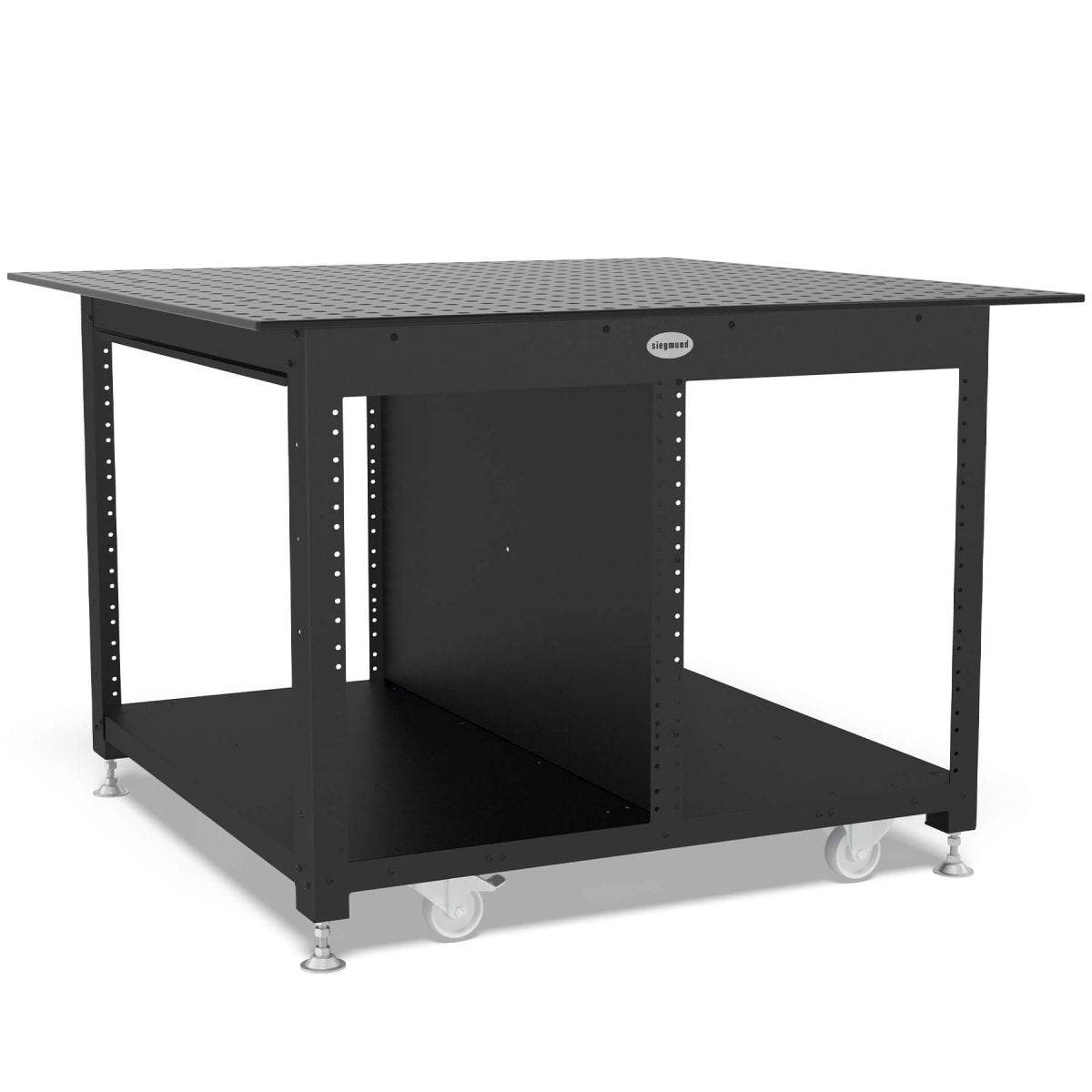

The Siegmund System 16 Workstation
Thanks to the intelligent concept of the Siegmund Workstation, all of your tools are always within reach at your workplace.
The Siegmund Workstation is the perfect welding platform, with more than enough space for all of your accessories.
The Siegmund Welding Workstation is an International Design Excellence Awards (IDEA) Finalist Product. The Siegmund Workstation was designed to be a very flexible system. It functions as a welding table, a workbench or a mobile workshop trolley with optional wheels.
PERFORATED 4' x 4' (48" X 48") PLATE
- Through-Hardened X8.7 Tool Steel + Plasma Nitrided and BAR-Coated
- 16mm (5/8") Diameter Boreholes on Surface
- 2" x 2" Center to Center Borehole Grid Distance
- 7/16" to 1/2" Approximate Material Thickness
WORKSTATION LEGS
- The combined leg and caster, gives the Siegmund Workstation mobility.
- Casters are included with this Workstation as a Standard.
- Base Plates have a "Fine Tune Adjustment" to enable a more precise working surface.
DIRT PROTECTION
- Two Cover Slides are below the table to protect your tools from Weld Spatter and Dirt.
- For Cleaning, you can pull out both covers like drawers.
THE WEIGHT BEARING LOAD
- The Siegmund Workstation with base plate is able to bear a total weight of approximately 2,200 lbs.
- Please note that when you are using the caster wheels, the overall weight load capacity is reduced to approximately 880 lbs.
MAXIMUM STORAGE
- The Siegmund Workstation features defined storage for tooling and accessories that can be shelved for easy reach.

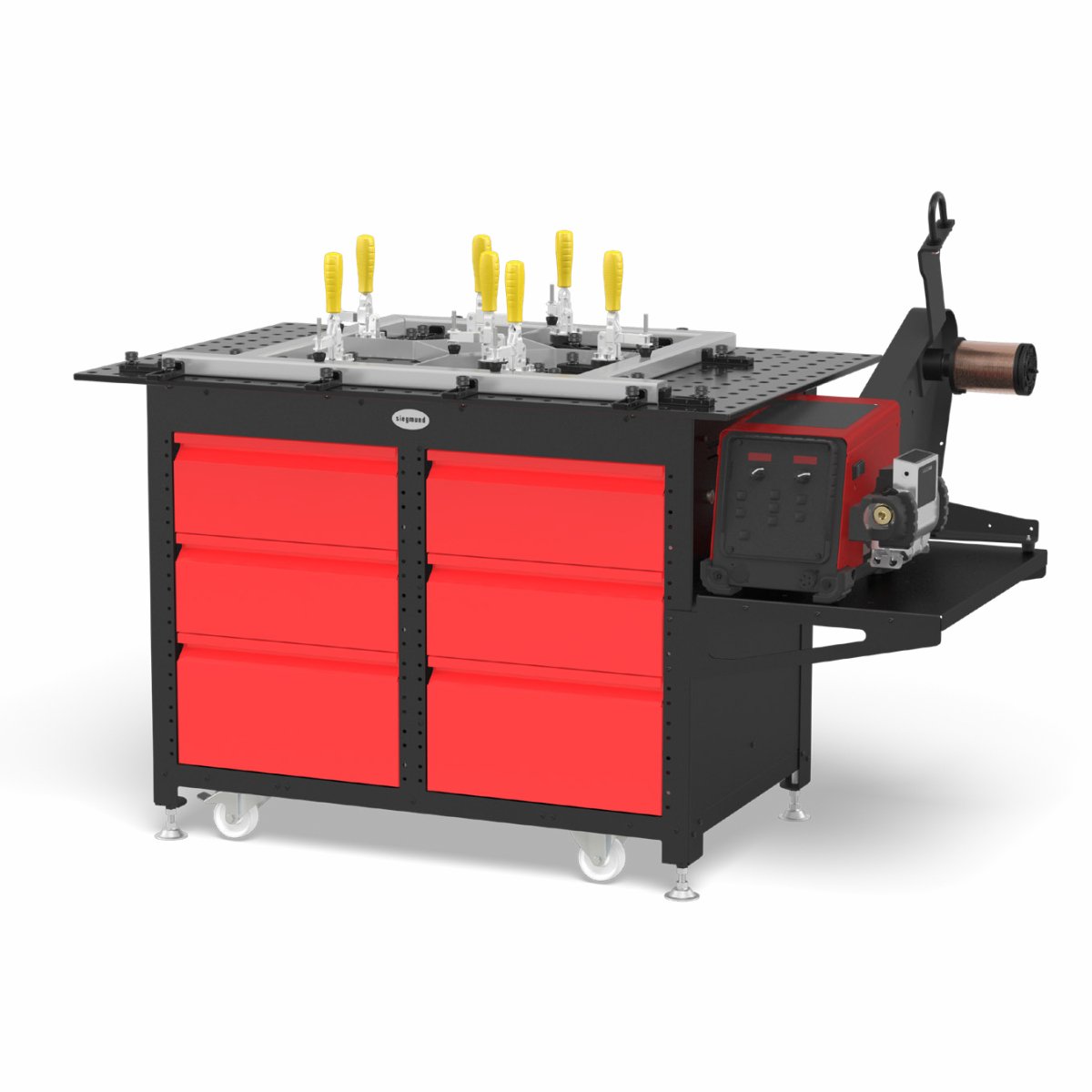

- You can customize, build or retrofit your Workstation with drawers at various height to increase your storage capability.
- "Upgrading" your workstation with more drawers is possible at any time. On the left and right side, you have 23-5/8" spacing.
- The maximum weight load capacity per drawer is approximately 110 lbs.
- The materials used are fundamental to the high level of hardness and long service life.
- With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
- Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.
Specs and Features
of the System 16 Workstation
Including 4'x4' (48"x48") Perforated Plate
Item No. US164600
Specs & Features
of the System 16 Imperial Series
Workstations
Welding Table Specs and Features:
- Overall Tabletop Size: 4' x 4' (48" x 48")
- Overall Height of Workstation: 33 1/2"
- Borehole Diameter: Ø 16mm (5/8")
- Welding Table Series: Professional Extreme 8.7 Series
- Welding Table Material Thickness: Approx. 7/16" to 1/2"
- Welding Table Material Type and Finish: Through Hardened Tool Steel, Plasma Nitrided and BAR-Coated
- Official Siegmund Welding Table Part No.: US164600
- Maximum Weight Load Not Using Casters: 2,200 lbs. (Based on Even Distribution)
- Maximum Weight Load Using Casters: 880 lbs. (Based on Even Distribution)
- Approximate Workstation Weight: 386 lbs.
- Boreholes on the Surface: are a 2"x2" Inch Grid Configuration.
System 16 Accessory Sets
The Most Popular Siegmund Accessory Bundles
System 16
Imperial Series Accessory Sets
The Most Popular Siegmund Accessory Bundles
Sold out
Sold out
Sold out
Sold out
Sold out
Featured Welding Table
Videos of Siegmund Welding Tables
Featured Siegmund Videos
of the System 16 Welding Tables
Impact Test Standard Weld Table vs Siegmund Weld Table
Why Our Welding Tables are Plasma Nitrided
The Strength of a Siegmund Welding Table
"You Can Produce Everything..."
This Month's
Featured Siegmund Welders
This Month's
Featured Siegmund Welders
Greg from Red Beard's Garage
Red Beard’s Garage is world famous and has over 275,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )
Jeff Lutz (Lutz Race Cars) from Street Outlaws
Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 474,000+ Instagram Followers and over 467,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!
Here is a video of Jeff Lutz in a drag race, for your own entertainment!
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (704)703-9400
Email: Sales@WeldingTablesAndFixtures.com
Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (704)703-9400 Email: Sales@WeldingTablesAndFixtures.com
If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.
Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
Questions & Answers
Have a Question?
Be the first to ask a question about this.
