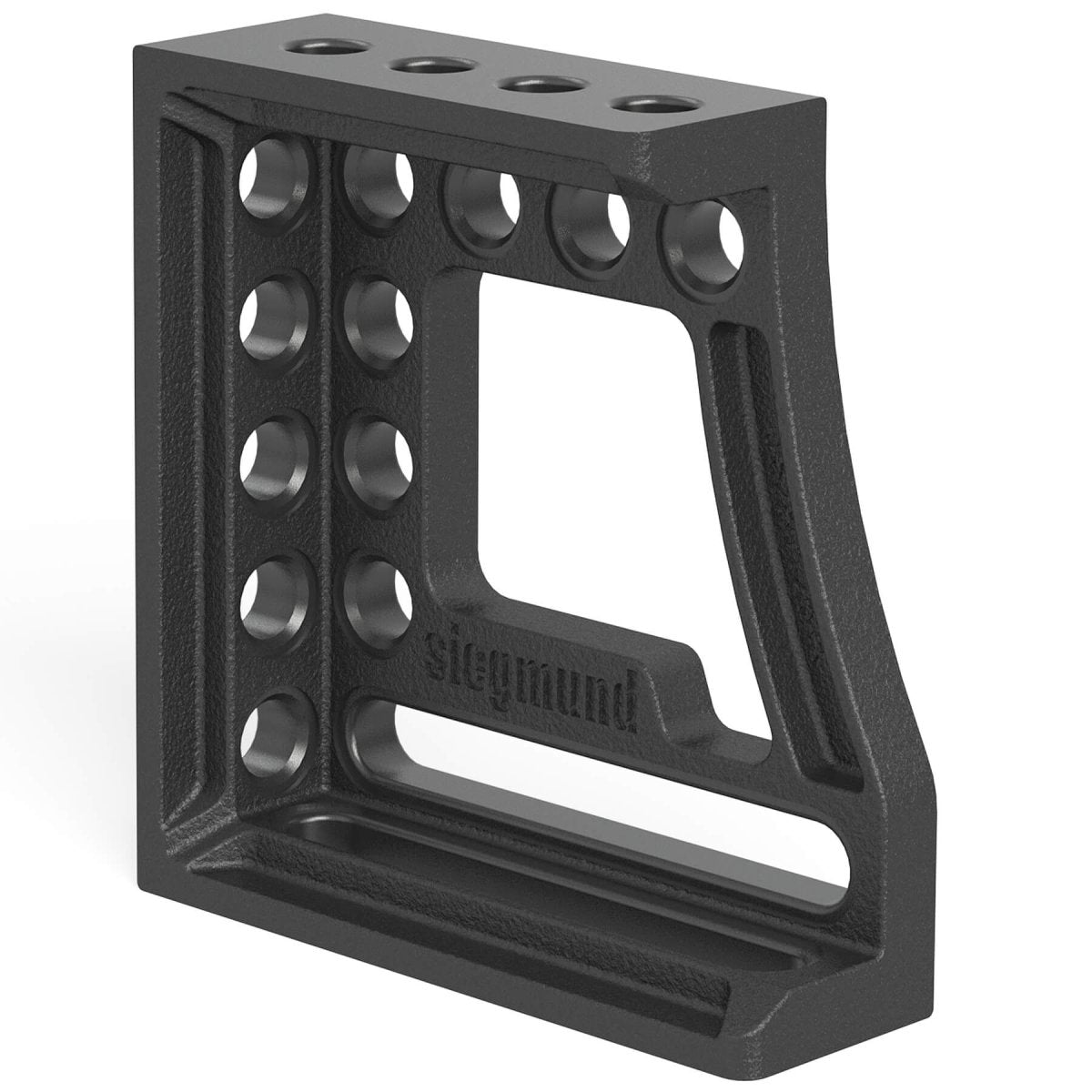

US280126.N: 12" GK Right Stop and Clamping Square (Nitrided)
- Product SKU: US280126.N
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US280126.N: 12" GK Right Stop and Clamping Square (Nitrided) for the Siegmund System 28 Imperial Series (INCH) Welding Tables
The Siegmund Stop and Clamping GK Squares facilitates a multitude of clamping options due to its three-dimensionality. It was especially designed for use with heavy components and can be used as a Stop as well as a table extension. To achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.
- INCH Scaling on Stop
- Stop on Right
- As Table Extension and Vertical Superstructure
- For Heavy Components
- Ordering in pairs is highly recommended.
- Finish: Nitrided
- Length: 11-1/4"
- Width: 3-3/4"
- Height: 12" or 1'
- Material Thickness: 1"
- Weight: 53.2 lbs.
