US280250.P: 150 lbs. Clamping Plate with Fixing Bolt (Nitrided)
- Product SKU: US280250.P
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US280250.P: 150 lbs. Clamping Plate with Fixing Bolt (Nitrided) for the Siegmund System 28 Imperial Series (INCH) Welding Tables

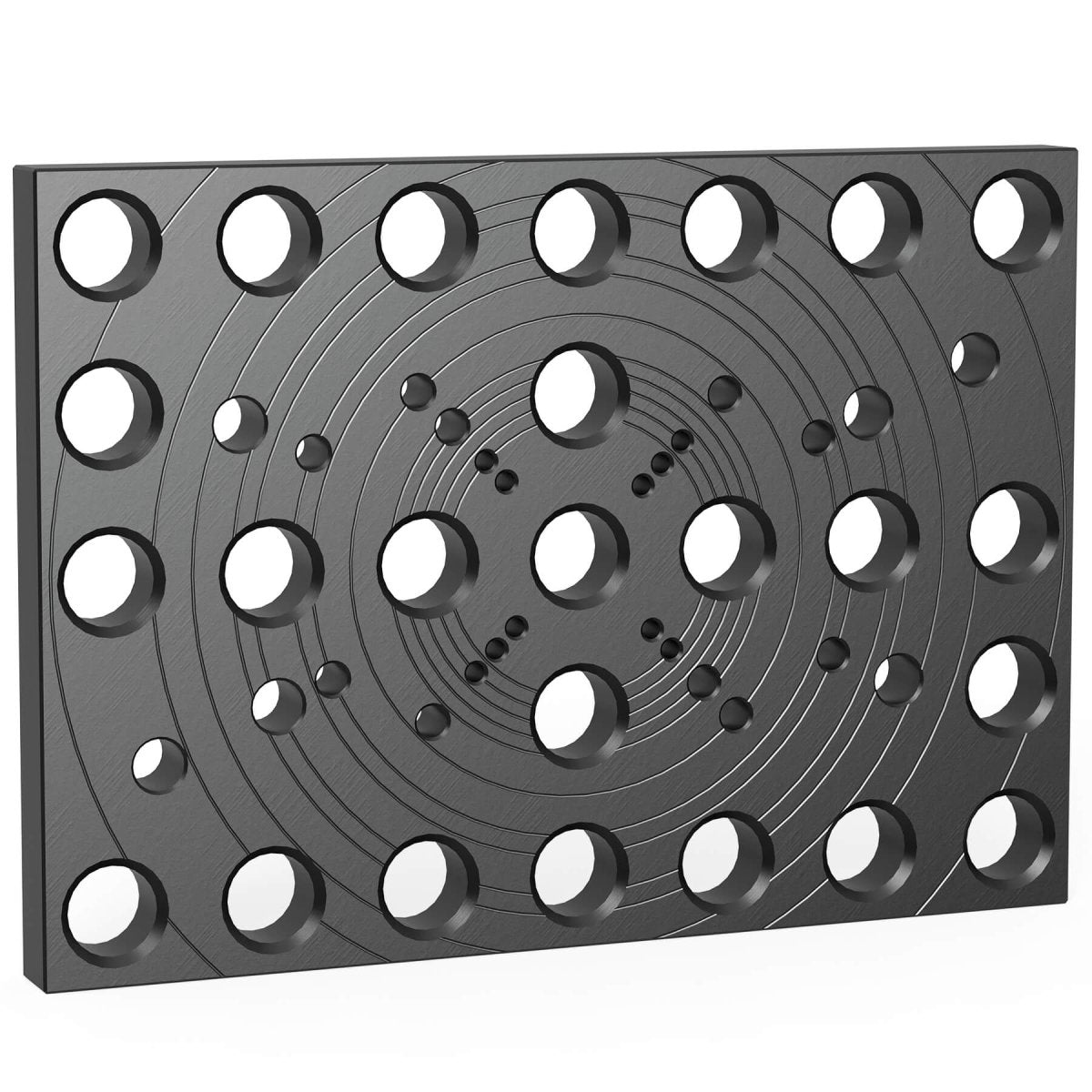

The Siegmund Clamping Plate for Flange US standard, attached with clamping bolts to Siegmund elements, like squares. Pipe flanges can be positioned quickly at the clamping plate by using fixing bolts. 28 mm bore holes provide fastening of additional clamping elements, enabling a wide range of application options. Additional nominal widths are available upon request.
Scope of delivery for Clamping Plate 150 lbs.:
2x fixing bolts Ø 0.61" or 15.5mm
2x fixing bolts Ø 0.74" or 18.9mm
2x fixing bolts Ø 0.87" or 22.2mm
In order to utilize the Clamping Plate in system 16 connection elements like Connecting Bolts (Item No. US000562), Combination Clamping Bolts (Item No. US000520), or Reduction Bushings (Item No. US000546) are required.
- For US Standard Flange
- ANSI / ASME B 16.5 150 lbs
- From 1/2" to 8"
- Length: 13.7"
- Width: 9.8"
- Material Thickness: 1"
- Weight: 31 lbs.
