US280511: Short Fast Clamping Bolt (Burnished)

Manufacturer: Siegmund
Part No. (SKU): US280511
Current Availability in the USA: 2242 In Stock
Series: 28mm Imperial Series Welding Table Accessories
$71
$101
$71
Subtotal: $71

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

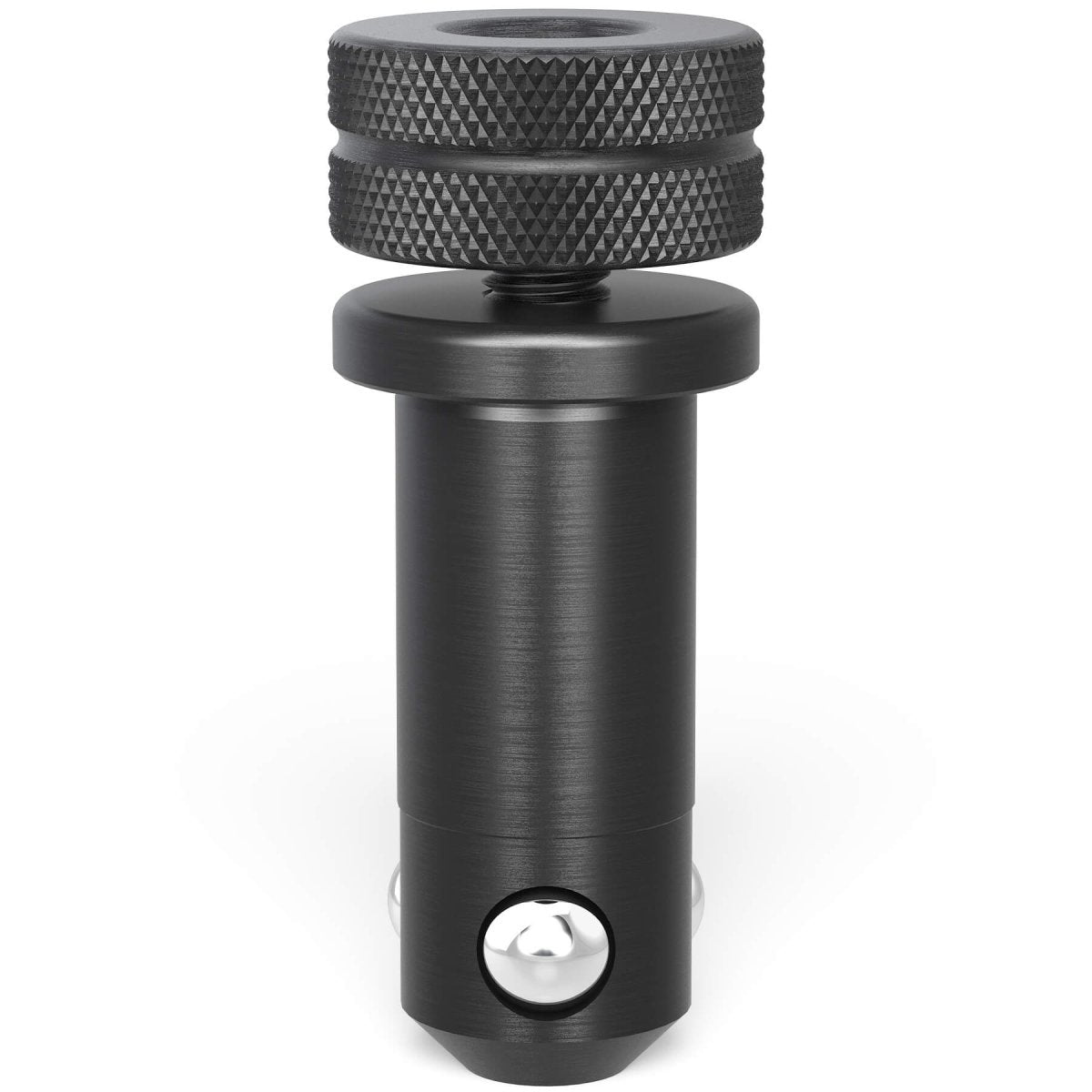

The System 28 Short Fast Clamping Bolt Enables Fast, Powerful, and Effortless Support.

The Bolt Without Slot is Particularly Suitable for Clamping Aluminum Profiles and is Also Still Compatible with the Entire Siegmund Range. The Fast Clamping Bolt with Twistlock is the Ideal Connecting Element Between Siegmund Components.

NEW SCREW TOP DESIGN

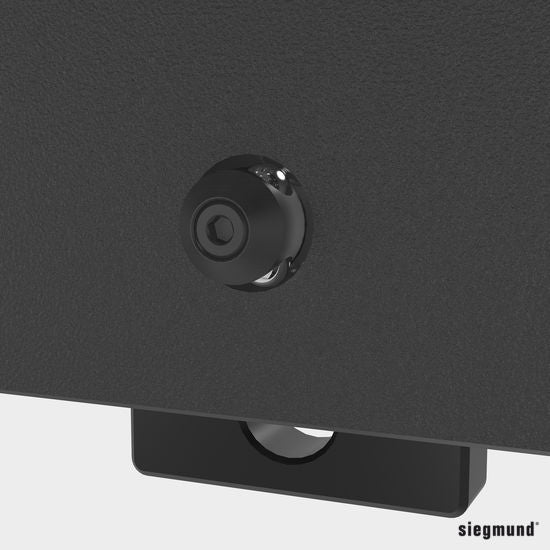

  • Due to the Hexagon Socket Insert, Located at the Top of the Bolt, the Force of the Bolt can be Adjusted Precisely by a Torque-Limiting Wrench.
  • The Grip Design Allows the Bolt to be Locked in Place in Seconds.

EASY-TO-USE BALL BEARINGS

  • It Features Especially Large Balls, which Protect the Bevel of the Bore Holes.
  • The Fourth Ball Located in the Center, Reduces Internal Friction and Strengthens the Power of the Handwheel.
  • Specifically Made for System 28 Bore Holes, both Welding Tables and Stops.

SECURE CONNECTIONS

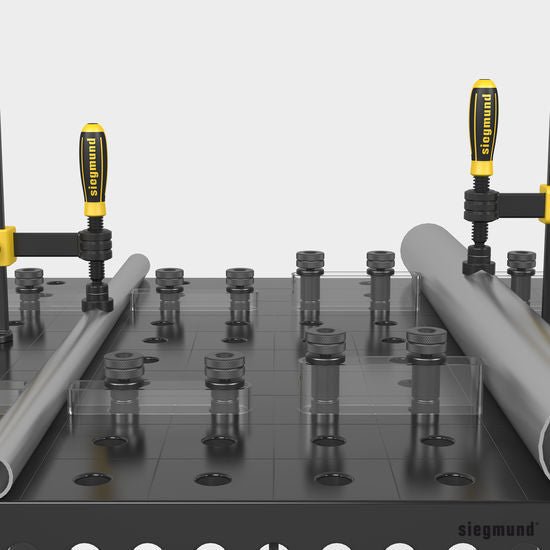

  • Laser Cut Profiles of Varying Thickness can Easily be Clamped.

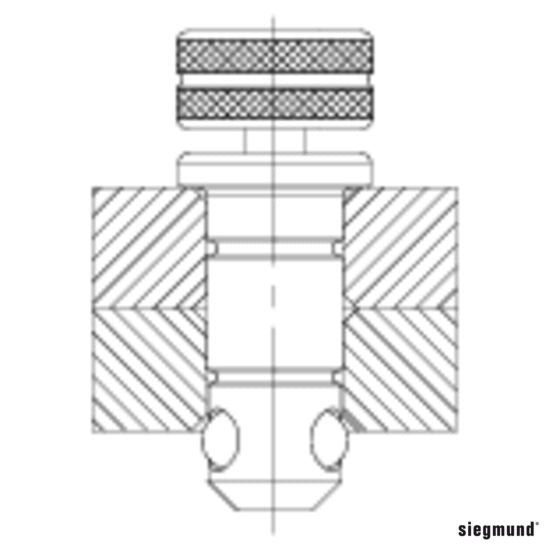

  • For Clamping up to 2 Siegmund Components.
  • This Bolt MUST NOT be used for Connecting Tables and U-shaped Squares!

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.

Specs and Features
of the System 28 Imperial Series
Short Fast Clamping Bolt
Item No. US280511

Specs and Features
of the System 28 Imperial Series
Short Fast Clamping Bolt
Item No. US280511

Length: 3.74"

Weight: 1.2 lbs.

Diameter: 1-1/10"

Finish: Burnished

Tensile Force: 25 kN

Shearing Force: 220 kN

Tightening Torque Steel: 215 Nm (158.58 ft-.lb)

Tightening Torque Aluminum: 10 Nm
