US280560.N: Short Connecting Bolt (Nitrided)

Manufacturer: Siegmund
Part No. (SKU): US280560.N
Current Availability in the USA: 1340 In Stock
Series: 28mm Imperial Series Welding Table Accessories
$29
$41
$29
Subtotal: $29

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

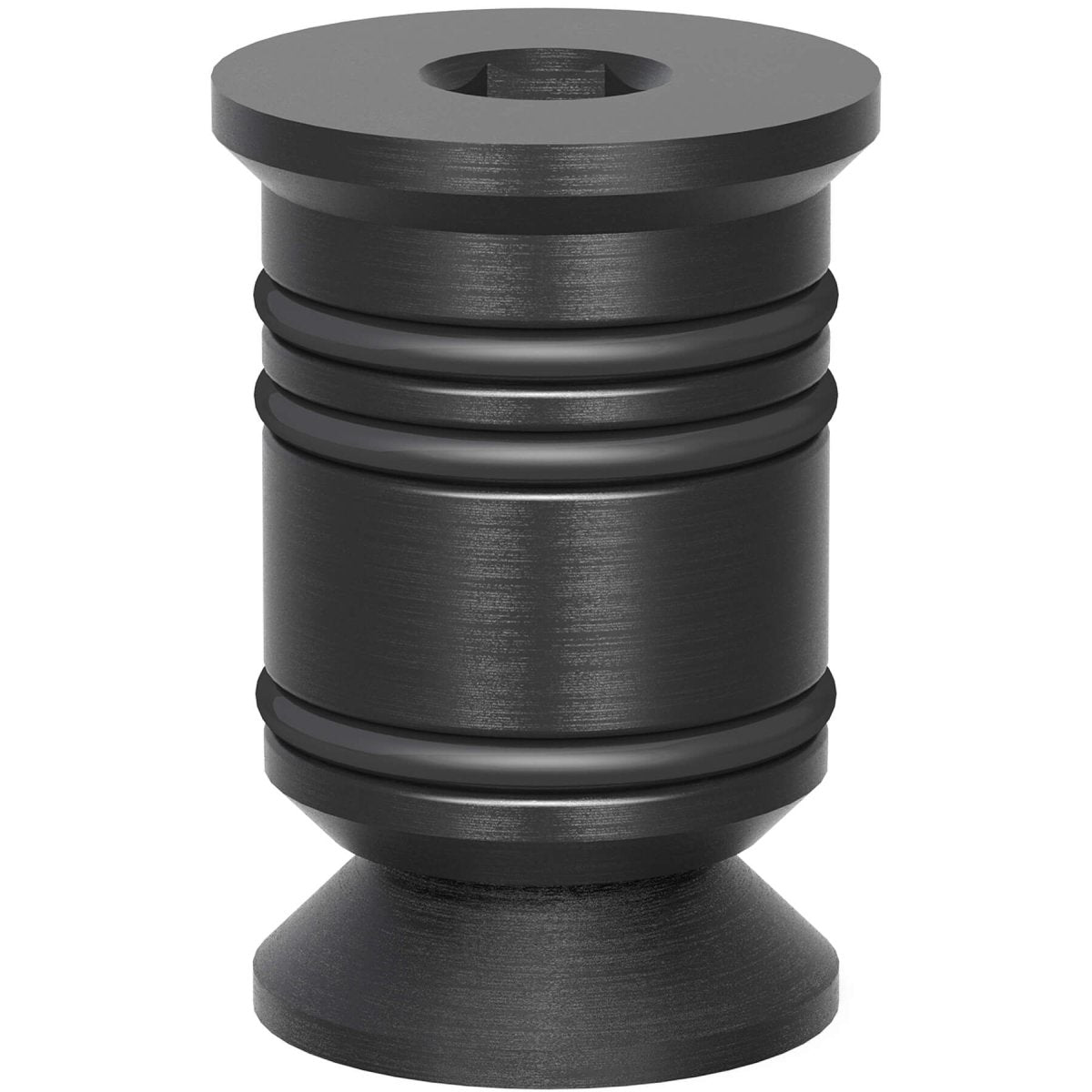

The System 28 Short Connecting Bolt Enables Fast, Powerful, and Effortless Connecting.

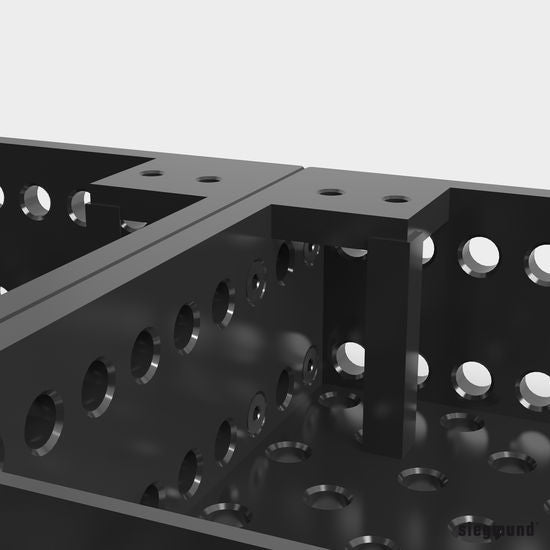

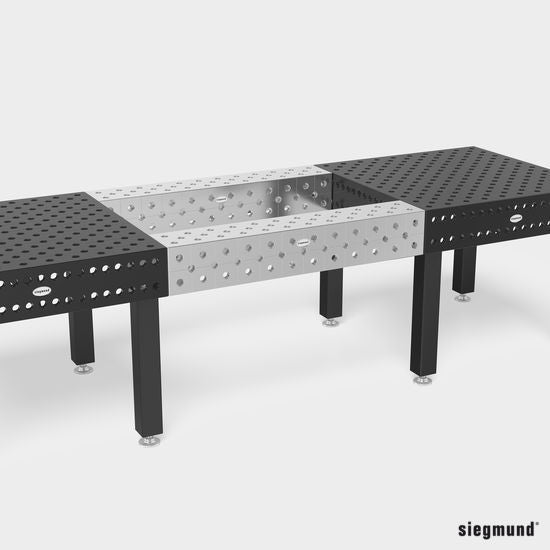

The Siegmund Burnished Flush-mount Connecting Bolt is specially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.

NEW HEXAGON DESIGN

  • The Flush Mount Hexagon Socket and the Ability of the Clamping Bolt to Center Itself, Facilitate Simple Assembly.
  • The Countersunk Head and the Countersunk-Head Screw are Equipped with a 10 Hexagonal Bit for Clamping.
  • The Grip Design Allows the Bolt to be Locked in Place in Seconds.

ENDLESS FASTENING POSSIBILITES

  • A Long-Term Connection Between Large Siegmund Components,
  • Especally Made for Profiles and Squares such as USAR28014061.V, US280362.P, and US280374.P. (Profiles and Squares not Included)

SECURE CONNECTIONS

  • For Clamping 2 Siegmund Components.
  • The Connecting Bolt Enables Sturdy Bolting.
  • The Connecting Bolt is Not Suitable for the Use in Oblong Holes.

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Overall Design Allows Any Piece to be Held in Place Tightly.

Specs and Features
of the System 28 Imperial Series
Short Connecting Bolt
Item No. US280560.N

Specs and Features
of the System 28 Imperial Series
Short Connecting Bolt
Item No. US280560.N

Length: 2"

Weight: 1 lbs.

Diameter: 1-1/10"

Finish: Nitrided

Tensile Force: 2,200 lbf.

Shearing Force: 44,900 lbf.

Tightening Torque: 18 lbf.
