US280561: Long Connecting Bolt (Burnished)
- Product SKU: US280561
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories

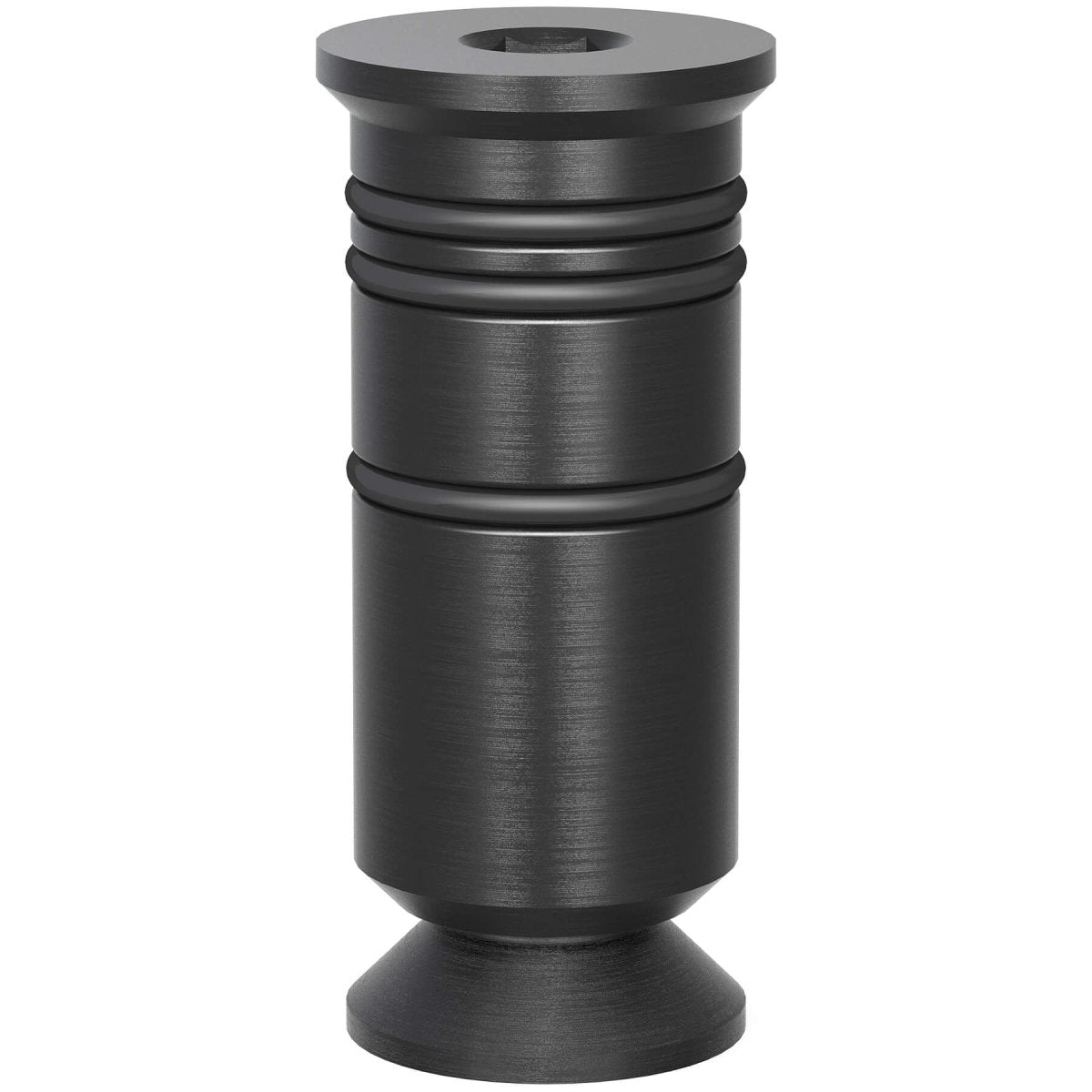

Item No. US280561: Long Connecting Bolt (Burnished) for the Siegmund System 28 Imperial Series (INCH) Welding Tables
The Siegmund Burnished Flush-mount Connecting Bolt is specially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.
The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.
The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in oblong holes.

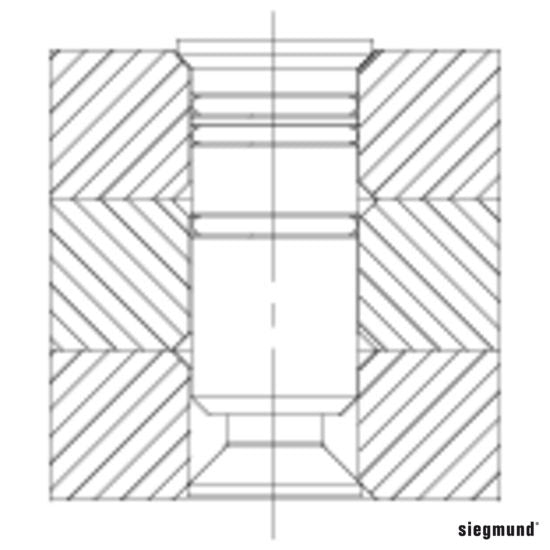

- For Clamping 3 Siegmund Components
- Length: 2.95"
- Shearing Force: 200 kN
- Tensile Force: 10 kN
- Tightening Torque Steel: 25 Nm
- Diameter: 28mm (1-1/10")
- Weight: 0.44 lbs.
