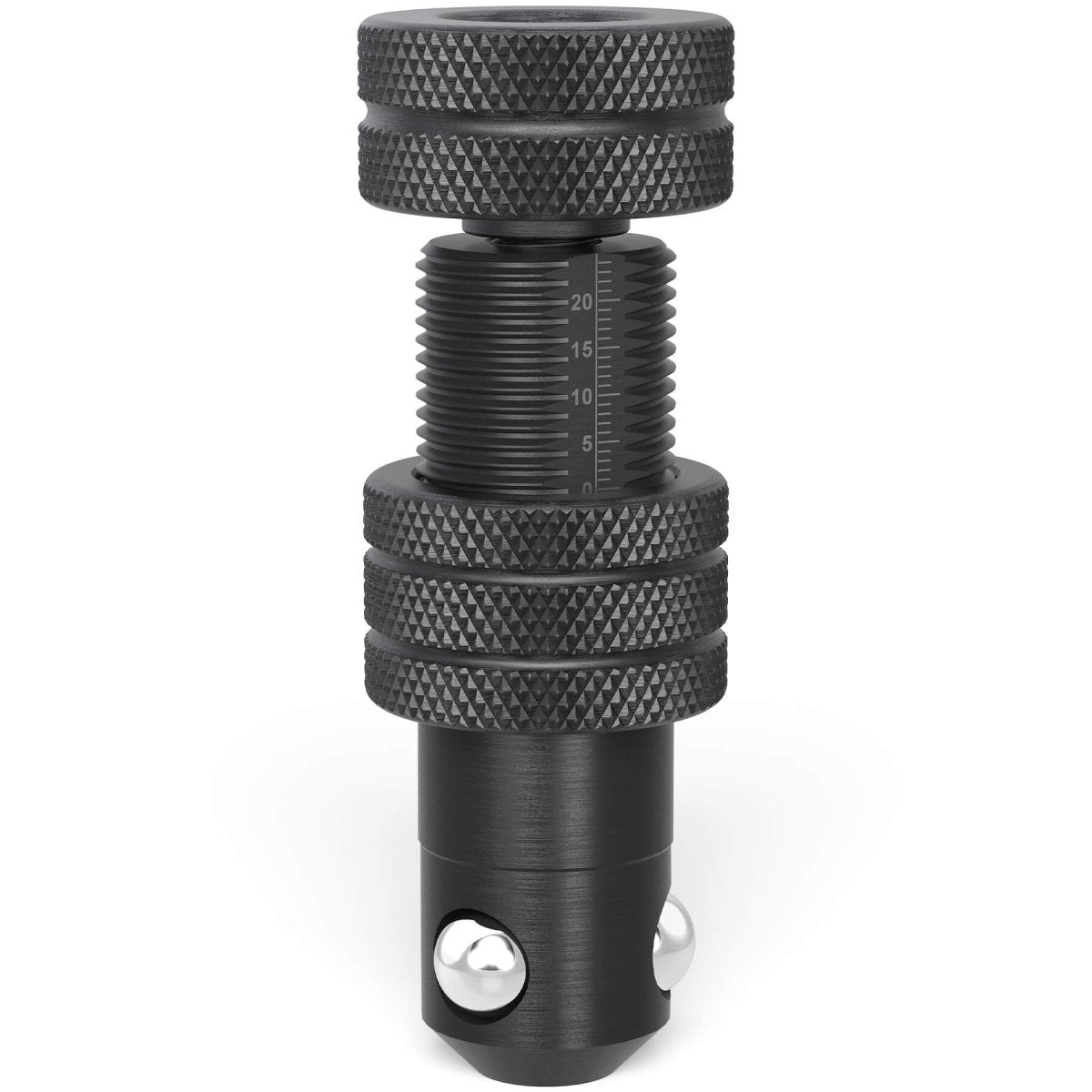

US280571: Short Adjustable Fast Clamping Bolt (Burnished)
- Product SKU: US280571
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US280571: Short Adjustable Fast Clamping Bolt (Burnished) for the Siegmund System 28 Imperial Series (INCH) Welding Tables

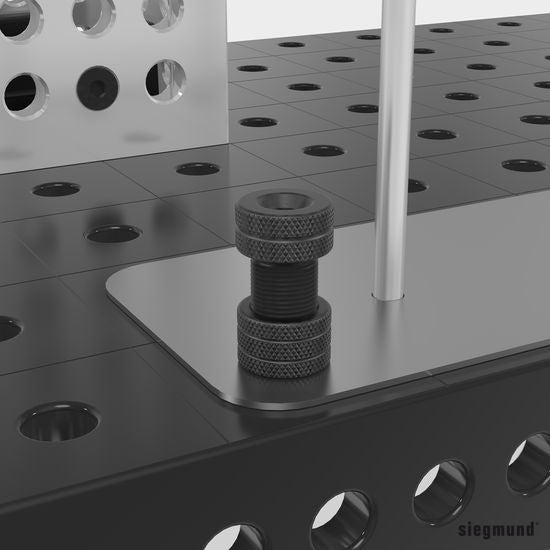

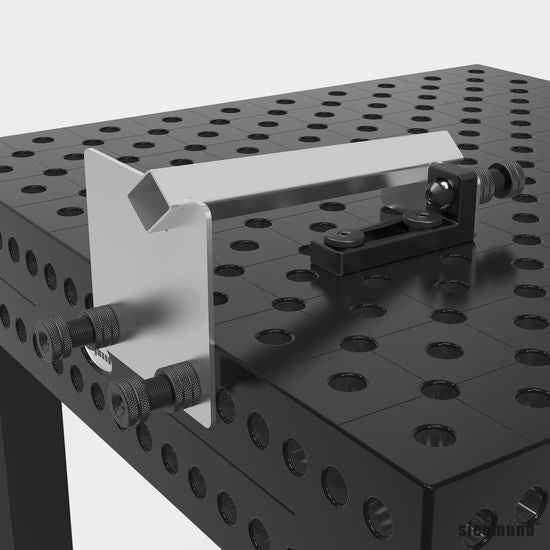

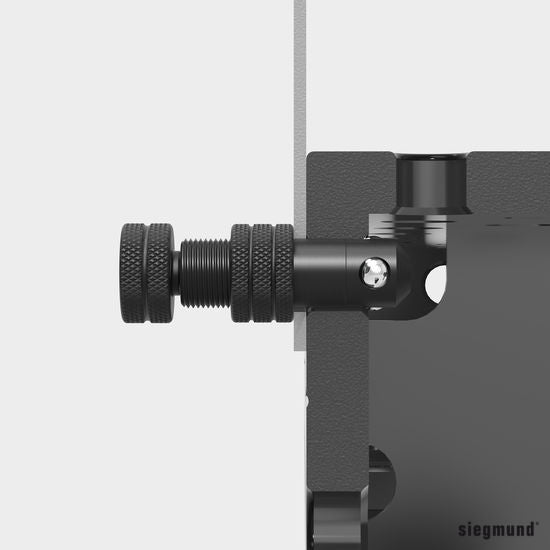

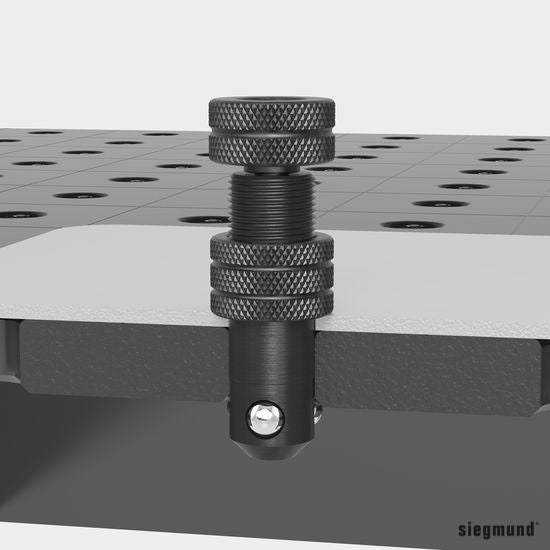

Laser cut profiles of varying thickness can easily be clamped with the all new adjustable fast clamping bolt.
The clamping height is individually adjusted by a rotating a knurled thimble ring.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Suitable for aluminum profiles.
Clamping torque dependent on material.
When clamping aluminum parts, the bolts must only be tightened hand-tight.
- For Clamping 2 Siegmund Components
- Length: 4.5"
- Shearing Force: 220 kN
- Tensile Force: 25 kN
- Tightening Torque Steel: 25 Nm
- Tightening Torque Aluminum: 10 Nm
- Diameter: 28mm (1-1/10")
- Weight: 1.5 lbs.
