Description

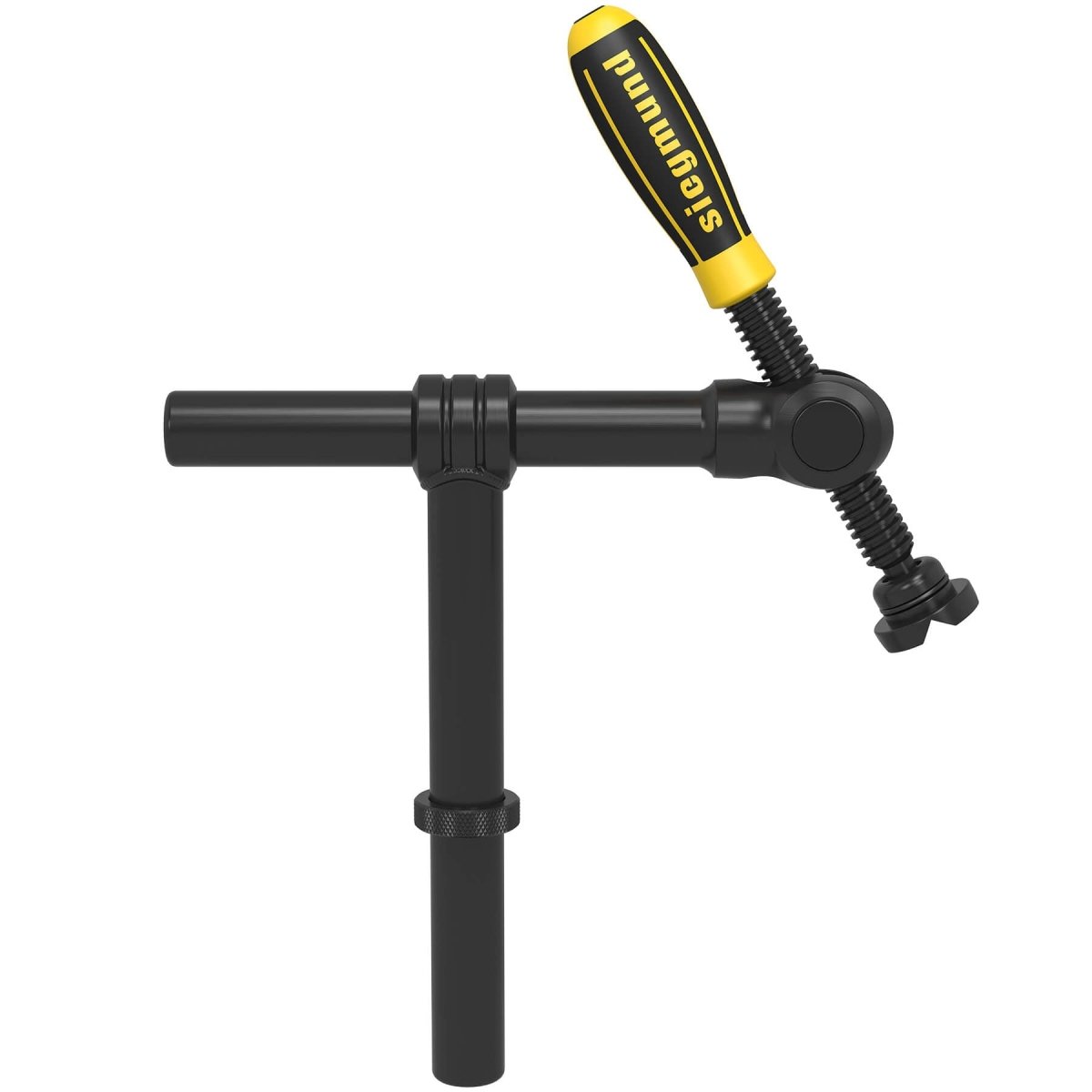

The System 28 Universal Pipe Clamp Enables Fast, Powerful, and Effortless Clamping.

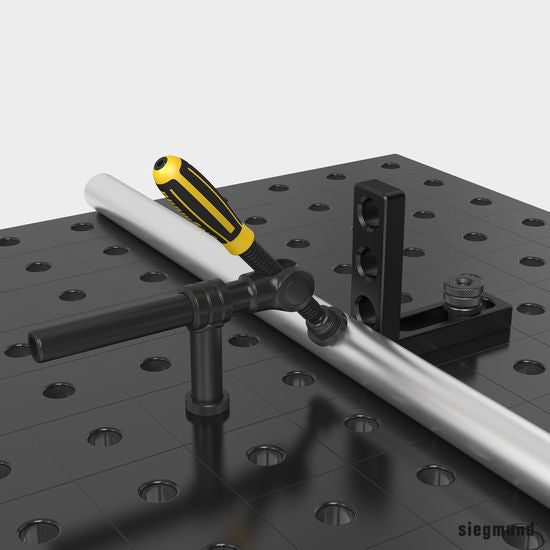

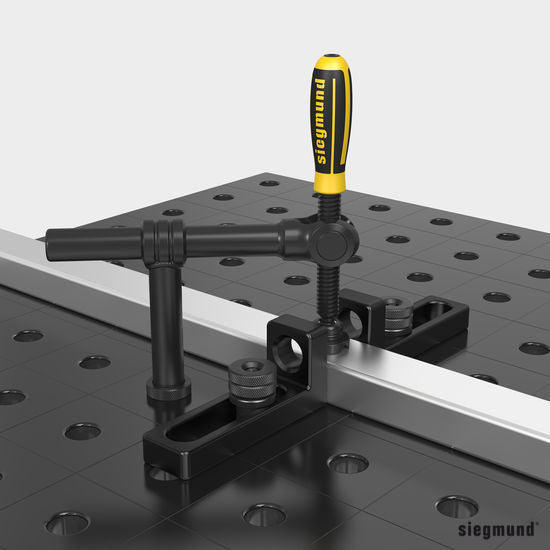

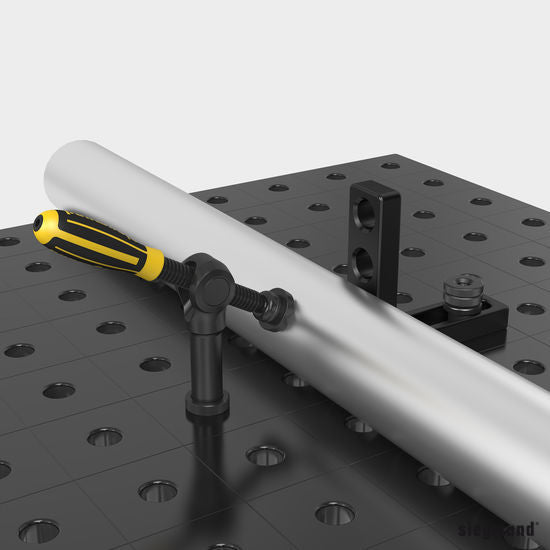

This Pipe Clamp Combines the Advantages of Conventional 45° or 90° Clamps. It can be Used at an Angle as well as Straight, Resulting in Additional Clamping Options and a More Variable Clamping Range.

NEW ARBOR DESIGN

  • As a Standard Feature, the Round Pipe Clamp Universal is Equipped with a Threaded Arbor.

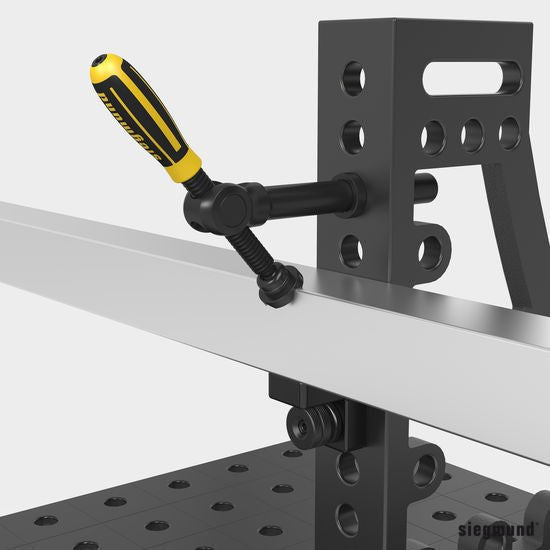

  • The Swiveling Arbor Enables Flexible Clamping at a + / - 42 Degree Angle.
  • Due to the Hexagon Socket Insert, Located at the Top of the Handle, the Force of the Clamp can be Adjusted Precisely by a Torque-Limiting Wrench.

VARIOUS PRISMS AVAILABLE (ADDITIONAL PRISMS ARE OPTIONAL)

  • The Interchangeable and Compact Prism Allows for Optimal Grip.
  • An Array of Prisms from Steel to Nitried can be used for Any Unique Job.
  • Additional Prisms that can be used are the US280660.E, US280658.E, US280659.PA, US280657.1.N, US280660, and US280660.PA (Additional Prisms are Optional).

REINFORCED BARS

  • The Horizontal Round Tube has a length of 7.8"
  • The Length of the Vertical Round Tube is 9.8"
  • The Vertical Bar is Reinforced with Harden Burnished Steel.

HEAVY-DUTY DESIGN

  • A Long Lifetime and Efficiency is Guaranteed by its High-Quality Material.
  • The Friction Placed Design Allows Any Piece to be Held in Place Tightly.
  • To Integrate the Vertical Pipe into the System Bore Holes, an Adjusting Ring is Used (Item No. US280653.N).

Specs and Features
of the System 28 Imperial Series
Universal Pipe Clamp
Item No. US280604.N

Specs and Features
of the System 28 Imperial Series
Universal Pipe Clamp
Item No. US280604.N

Width: 10-7/16"

Height: 9-5/6"

Finish: Burnished

Weight: 5.06 lbs

Ball Diameter Spindle: 5/8"

Max. Holding Force: 675 lbf
