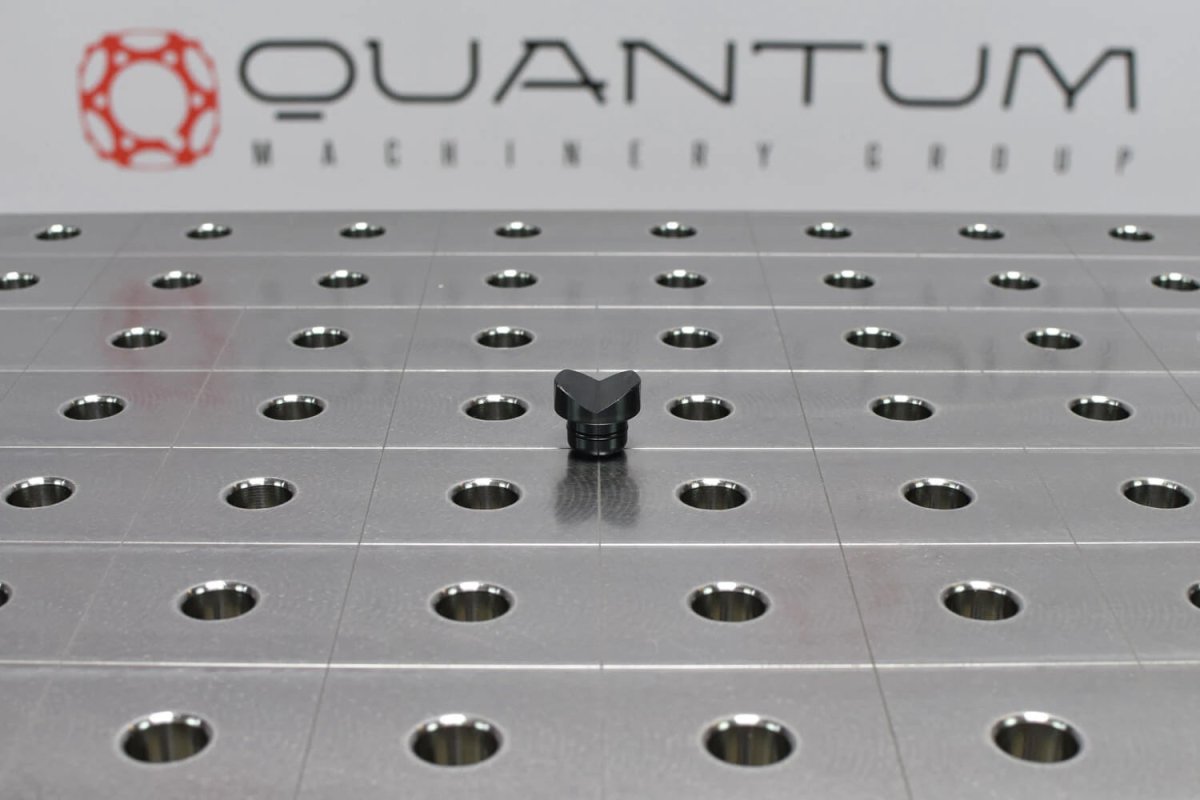

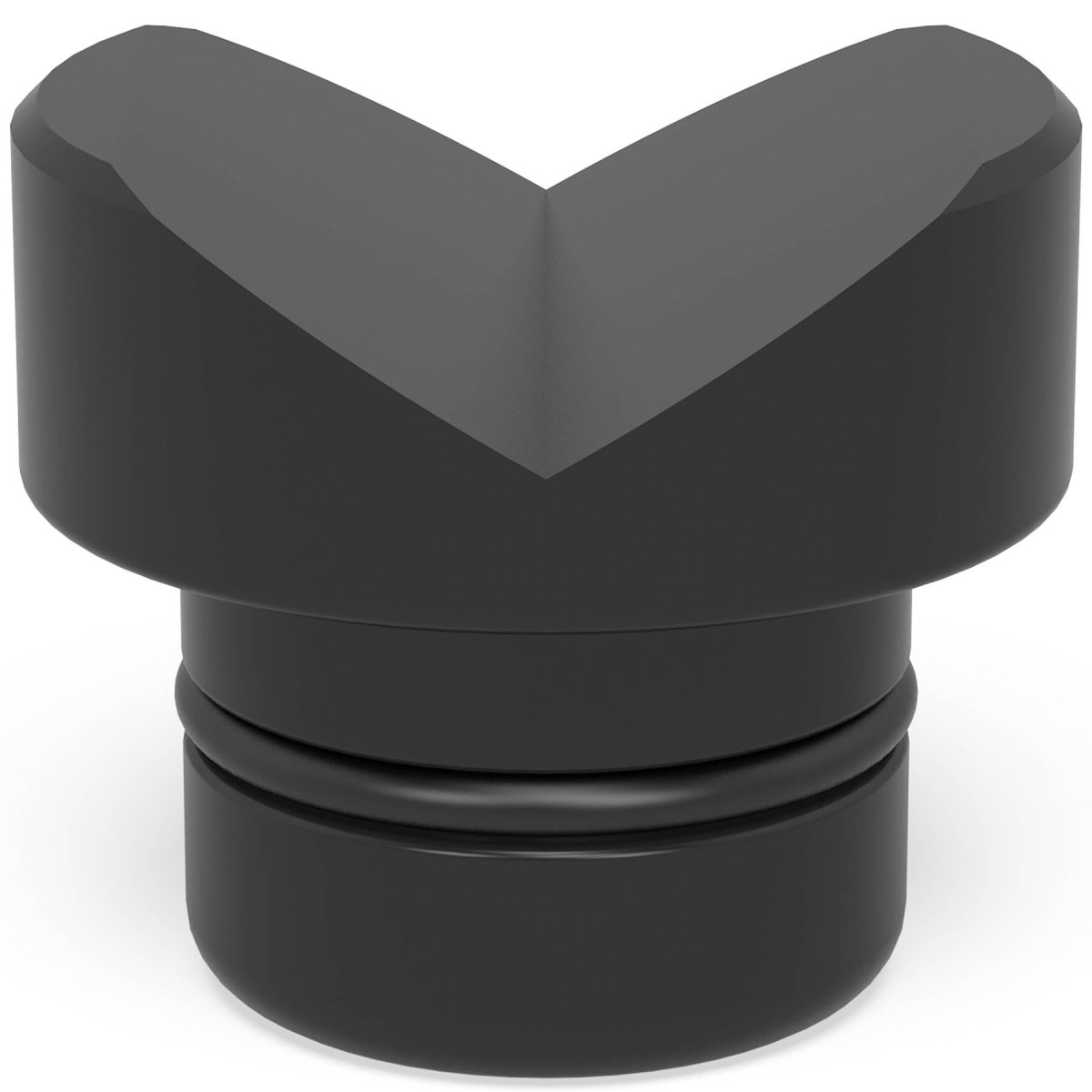

US280650: 1.5" Duo Prism (Burnished / Nitrided)
- Product SKU: US280650
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US280650: 1.5" Duo Prism (Burnished / Nitrided) for the Siegmund System 28 Imperial Series (INCH) Welding Tables

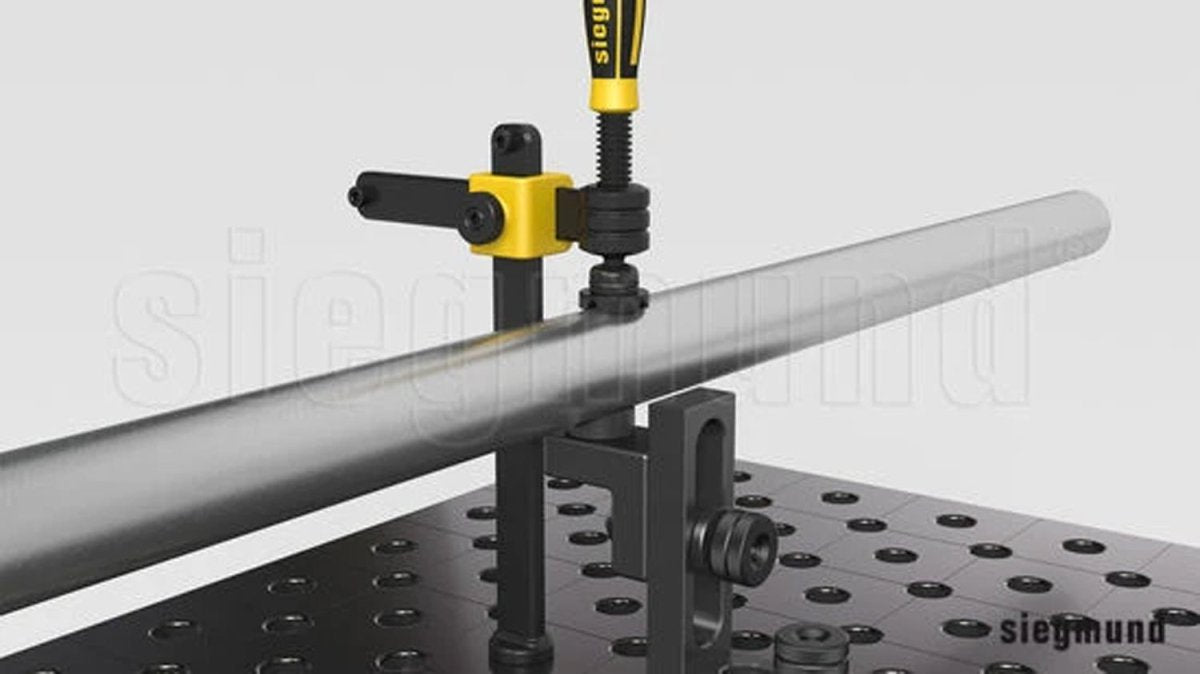

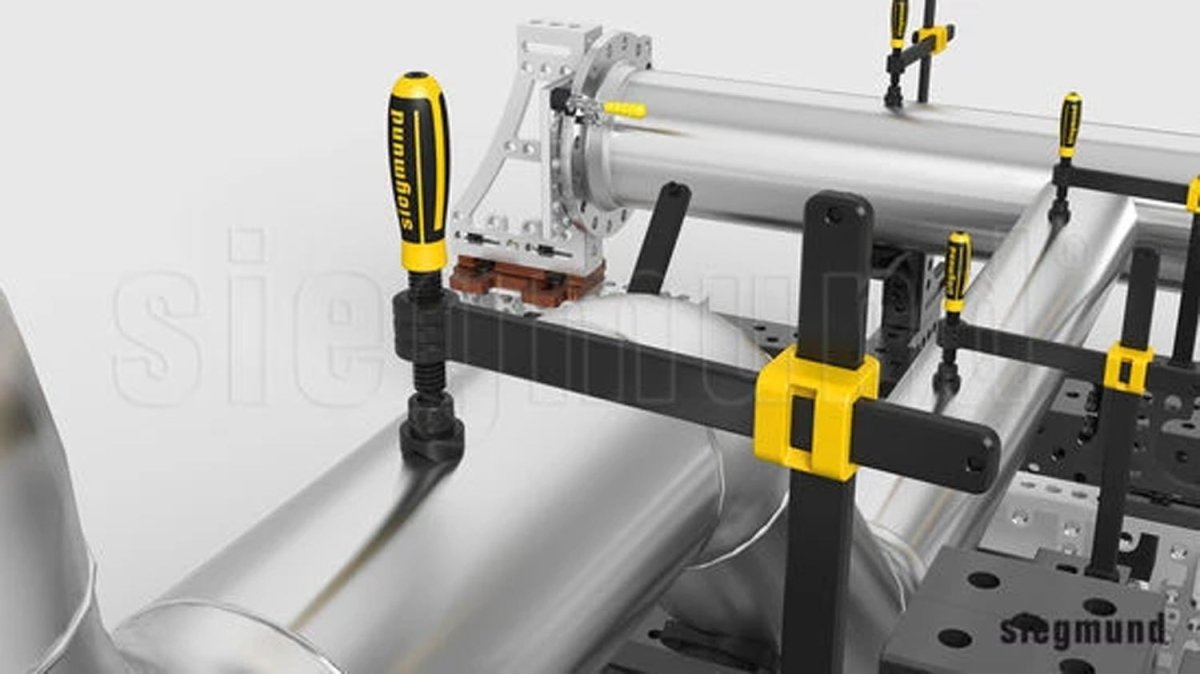

The Siegmund Duo Prism, compatible with all bore holes and screw clamps of System 28, due to its dual function. The O-ring provides perfect fixing and fitting accuracy. The 120° square creates a stable support surface for all round pipes. The leveled corners of the prism enable working with flat welding parts. The Polyamide Prism is used for scratch-prone surfaces. The prism polyamide is only suitable for use as a prism for screw clamps.
- For Arbor with Trapezoid Thread 0.78"x0.15" (20 x 4mm)
- Burnished / Nitrided
- Height: 1.37"
- Diameter: 1.57"
- Weight: 0.33 lbs.
