US280821: 11 Piece Set of Supports (Burnished)
- Product SKU: US280821
- Category: Siegmund Imperial Series (INCH) Welding Tables and Accessories, System 28 Imperial Series (INCH) Welding Tables and Fixturing Accessories
Item No. US280821: 11 Piece Set of Supports (Burnished) for the Siegmund System 28 Imperial Series (INCH) Welding Tables

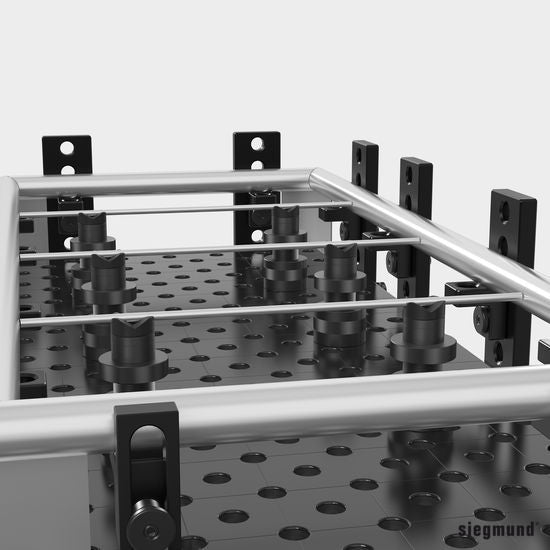

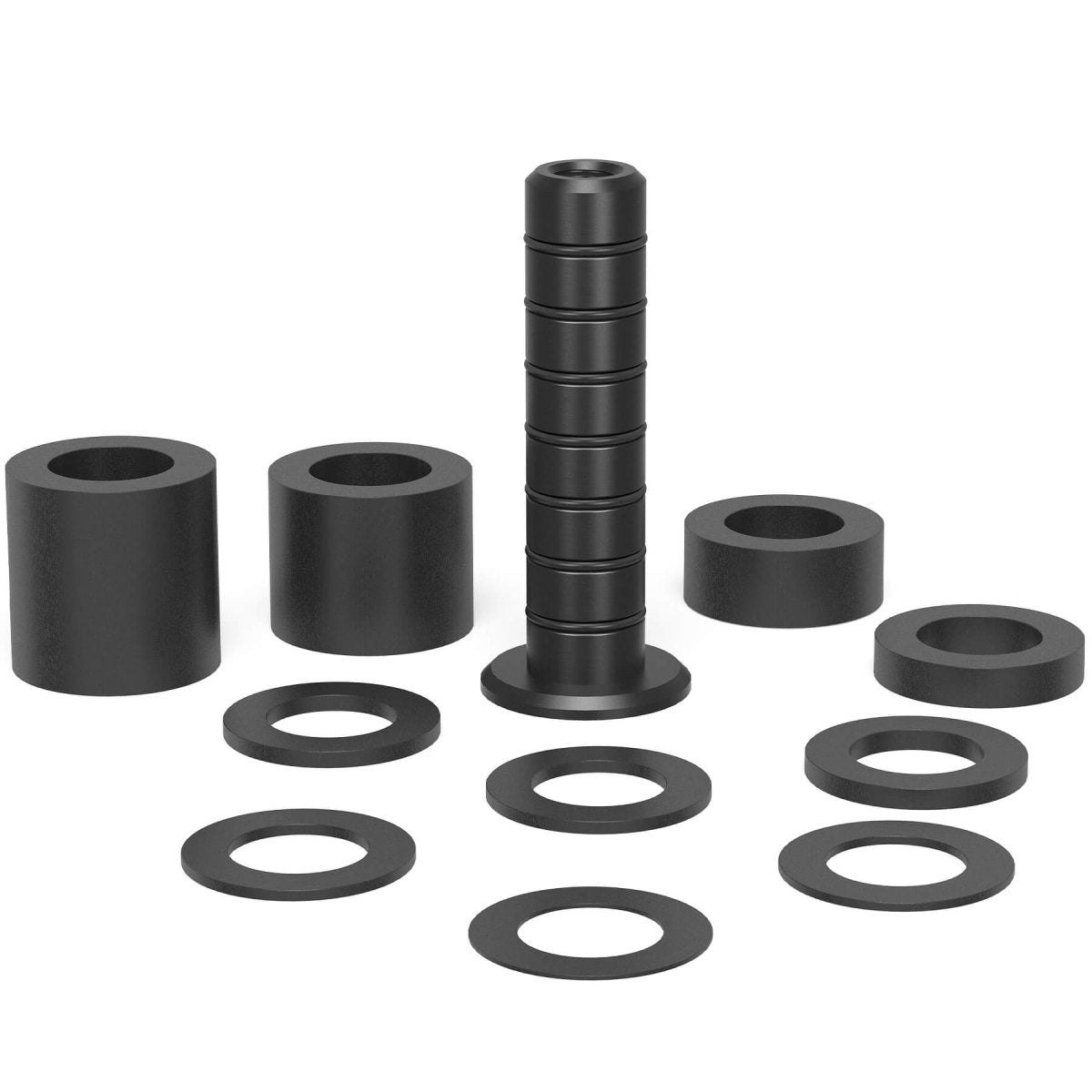

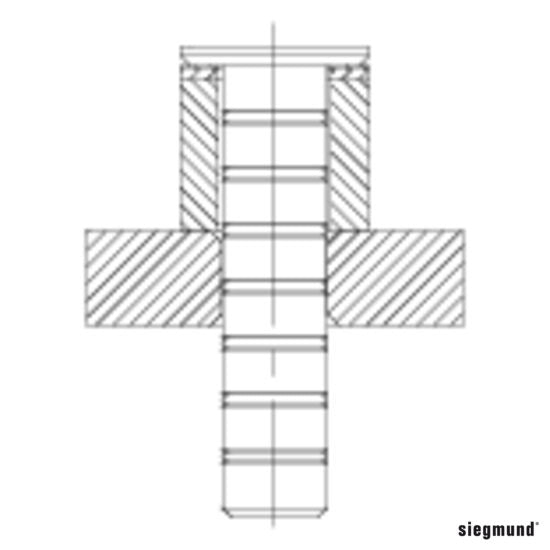

The Siegmund 11-piece Set of Supports, offers the option to vary the height of the support surface. The individual supports can be used to compensate for 0.039" to 3.93" (1-100mm) height differences. The lowest grading of the supports is 1 mm, in order to achieve the intended height precisely. The measurements are specified on the particular discs. Aided by the O-rings, the Supports can be adjusted easily and precisely. The Set of Supports can be universally used in all drill holes of system 28. The M10 thread on the inside of the supports enables fastening of customer-specific components or prisms.
- Height: 4.9"
- Diameter: 2"
- Weight: 4.3 lbs.
