US281030.XD7: System 28 4'x8' (48"x96") "BASIC" Siegmund Imperial Series (Inch) Welding Table with Plasma Nitration

Manufacturer: Siegmund
Part No. (SKU): US281030.XD7 + (x6) US161856
Current Availability in the USA: 12 In Stock
Series: System 28 Imperial Series Welding Tables
$5,035
$7,112
$5,035
Table Legs: 6 Standard Legs
Subtotal: $5,035

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

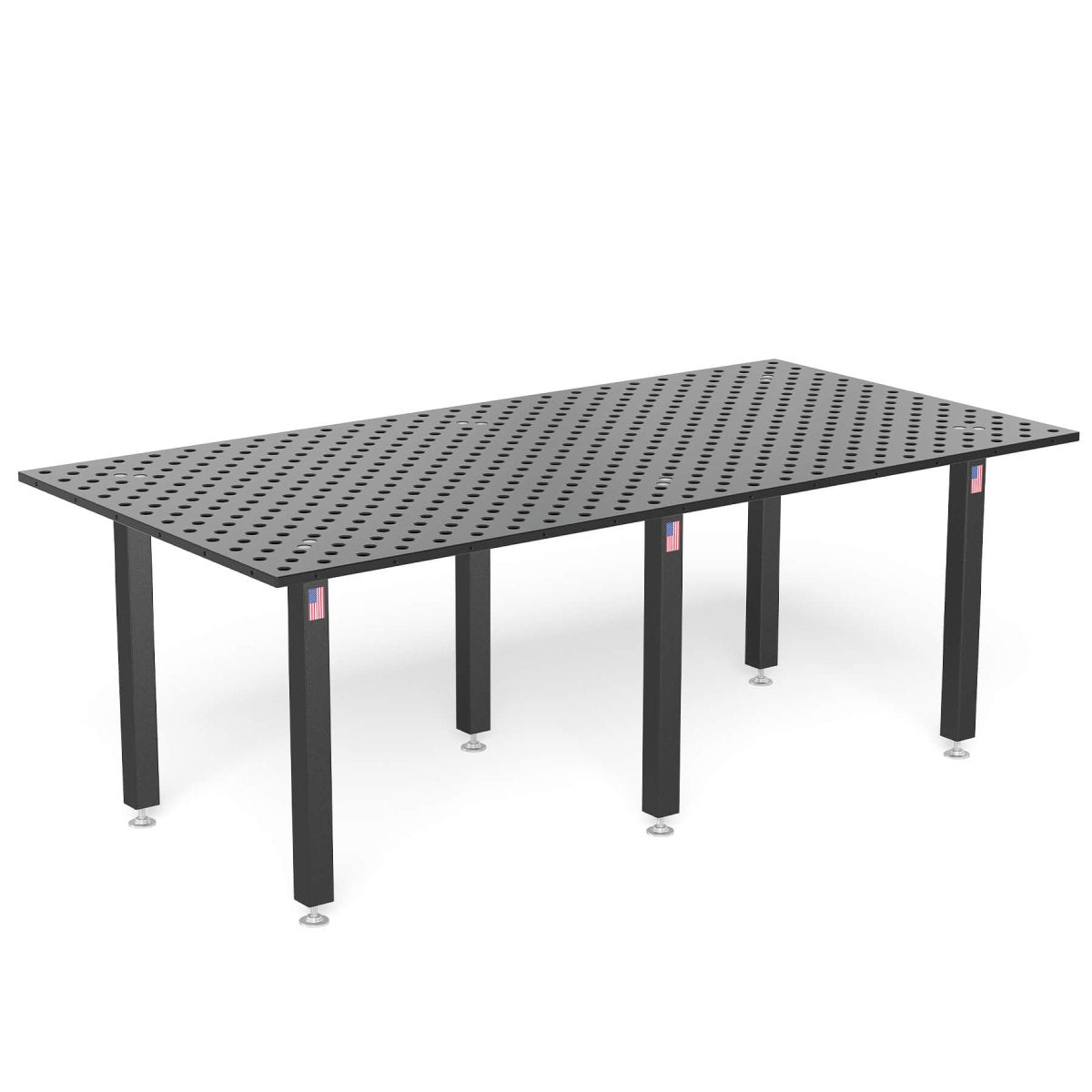

(Image is of a Siegmund System 28 Basic 8.7 Series, 4'x8' Welding Table

The System 28 Basic Welding Table Series was created with Heavy Duty Applications in Mind.

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 28 Basic

Imperial Series Welding Tables

Specs & Features
of the System 28, 8.7 Imperial Series
Welding Tables

Welding Table Specs and Features:

  • Overall Tabletop Size: 4' x 8' (48" x 96")
  • Borehole Diameter: Ø 28mm (1-1/10")
  • Welding Table Series: System 28 Basic Imperial Series
  • Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: US281030.XD7
  • Maximum Weight Load: 7,310 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,490 lbs.
  1. 5/16"x45" chamfer for table mounting.
  2. Boreholes 28mm (1-1/10"), Boreholes 7/64"x45.
  3. Radius 1/10" on table edges and 1/4" corners.
  4. Without side panel.
  5. Boreholes on the Surface are in a Diagonal Grid.
  6. M12 thread on 4 sides every 7-7/8".

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

US161856

2,200 lbs.

34-1/2"

36"

Included

2. Height Adjustable Leg

US160877.XX

2,200 lbs.

22"-38"

22"-38"

$77

3. Leg with Casters and
Locking Brakes

US161855

440 lbs.

34-1/2"

36"

$87

4. Height Adjustable Leg
with Casters and Locking Brakes

US160879.XX

440 lbs.

24"-36"

28"-40"

$129

Siegmund System 28 Basic Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

  • Item No.: US161856
  • Leg Height: 34-1/2"
  • Table Height: 36"
  • Fine Adjustment: 1-5/16"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 160877.XX
  • Leg Height (Adjustable): 22" - 38"
  • Table Height (Adjustable): 26" - 42"
  • Fine Adjustment: 1-5/8"
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $77
  • Cost Per 6 Leg Set: $462

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: US161855
  • Leg Height: 34-1/2"
  • Table Height: 36"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $87
  • Cost Per 6 Leg Set: $522

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: US160879.XX
  • Leg Height (Adjustable): 24" - 36"
  • Table Height (Adjustable): 28" - 40"
  • Fine Adjustment: 1-3/16"
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $129
  • Cost Per 6 Leg Set: $774
