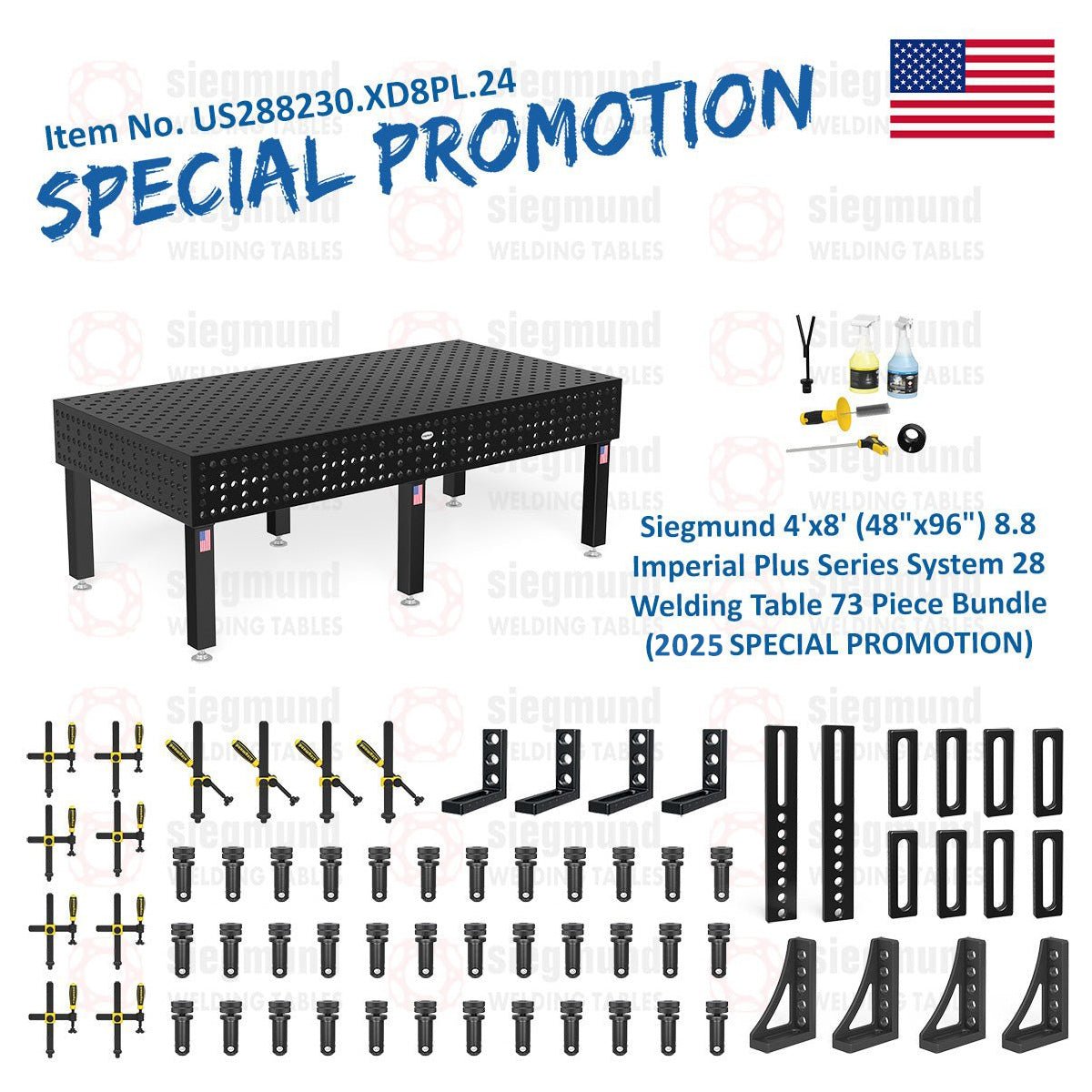

US288230.XD8PL.24: Siegmund 4'x8' (48"x96") 8.8 Plus Series System 28 Welding Table 73 Piece Bundle (2024 SPECIAL PROMOTION)

(Image is of a Siegmund System 28 8.8 Series, 5'x10' Welding Table with a Siegmund Accessory Kit . These items are not included. This is being shown as an example.)

Welding Table Specs and Features:

• Overall Tabletop Size: 4' x 8'
• Borehole Diameter: Ø 28mm (1-1/10")
• Welding Table Series: Professional Extreme 8.8 PLUS Series
• Welding Table Material Thickness: Approx. 15/16" to 1-1/16"
• Welding Table Material Type and Finish: Professional Extreme 8.8 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
• Table Surface Hardness: 500 – 900 Vickers
• Official Siegmund Welding Table Part No.: US280030.XD8PL
• Maximum Weight Load: 39,600 lbs. (Based on Even Distribution)
• Approximate Table Weight: 2,534 lbs.

1. Boreholes on the Surface are in a Diagonal Grid Configuration.
2. Boreholes have a diameter of 28mm (1-1/10"), Boreholes have a 1/10" Radius.
3. Radius 1/10" on the table edges and 1/4" on the corners.
4. Height of table side is 11-3/4" - Borehole in Diagonal Grid.
5. INCH Scale Engraved on the Surface.
6. Bottom of Structure has Reinforced Ribbing.

1. Standard Siegmund Leg(s)

• Item No.: US280853.X
• Leg Height: 24"
• Table Height: 36"
• Fine Adjustment: 2"
• Capacity Per Table Leg: 6,600 lbs.
• Cost Per Leg: $0 (Included with Welding Table as a Standard)
• Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Alternative Height Siegmund Leg(s)

• Item No.: US280858.X
• Leg Height: 28"
• Table Height: 40"
• Fine Adjustment: 2"
• Capacity Per Table Leg: 4,400 lbs.
• Cost Per Leg: $0
• Cost Per 6 Leg Set: $0

3. Height Adjustable Siegmund Leg(s)

• Item No.: US280877.XX
• Leg Height (Adjustable): 22" - 36"
• Table Height (Adjustable): 34" - 48"
• Fine Adjustment: 2"
• Capacity Per Table Leg: 4,400 lbs.
• Cost Per Leg: $112
• Cost Per 6 Leg Set: $672

5. Height Adjustable Leg(s) with Casters and Locking Brakes

• Item No.: US280879.XX
• Leg Height (Adjustable): 22" - 30"
• Table Height (Adjustable): 34" - 42"
• Fine Adjustment: 13/16"
• Capacity Per Table Leg: 1,760 lbs.
• Cost Per Leg: $183
• Cost Per 6 Leg Set: $1,098

4. Siegmund Leg(s) with Casters and Locking Brakes

• Item No.: US280860.XX
• Leg Height: 24"
• Table Height: 36"
• Fine Adjustment: 13/16"
• Capacity Per Table Leg: 1,760 lbs.
• Cost Per Leg: $139
• Cost Per 6 Leg Set: $834
