US6M150016: System 28 Imperial (Inch) Series M-Positioner

Manufacturer: Siegmund
Part No. (SKU): US6M150016
Current Availability in the USA: 12 In Stock
Series: System 28 Imperial Series Welding Tables
$8,855
$11,511
$8,855
Subtotal: $8,855

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

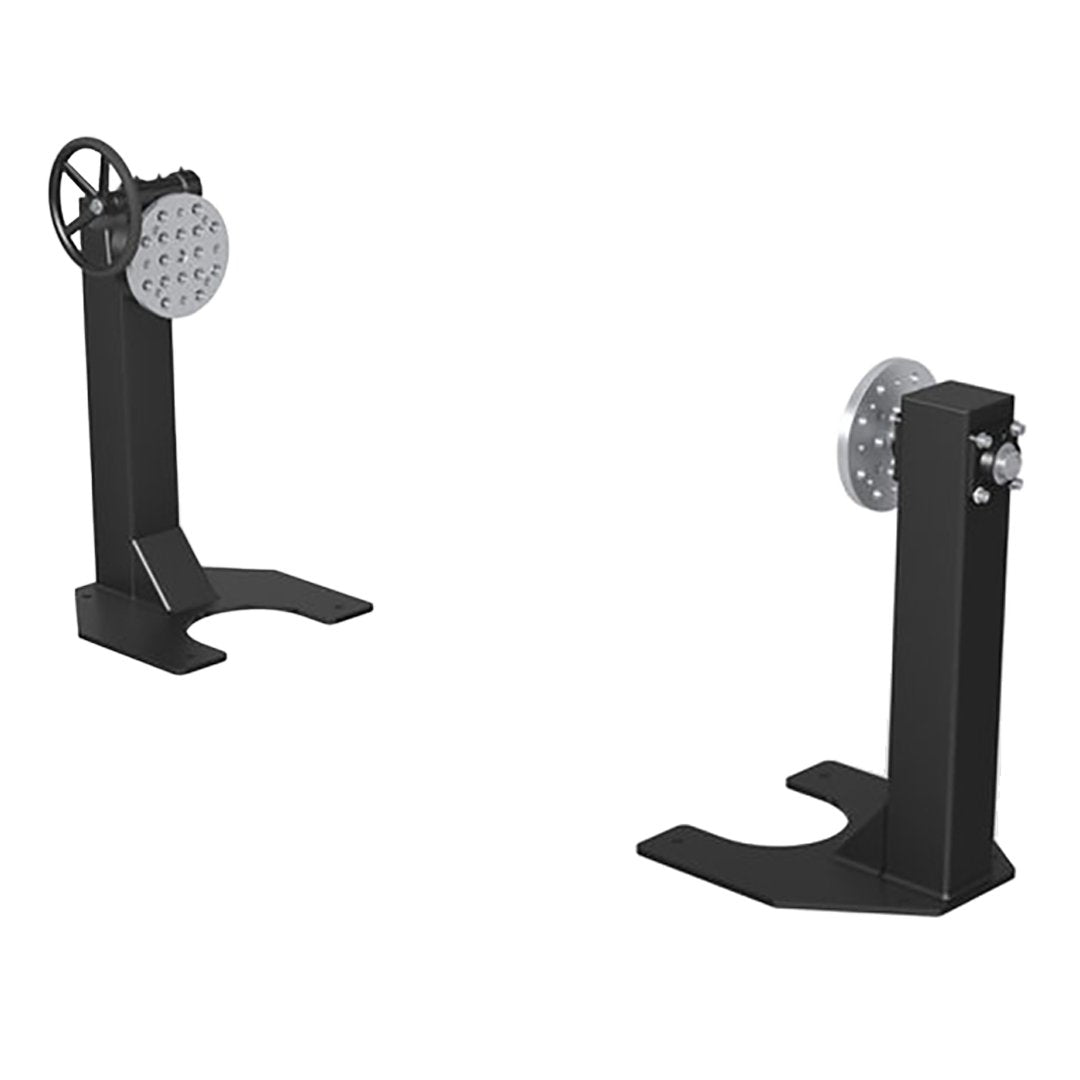

Item No. US6M150016: M-Positioner for System 28 Imperial (Inch) Series, Fixturing and U-Shape Square Sold Separately.

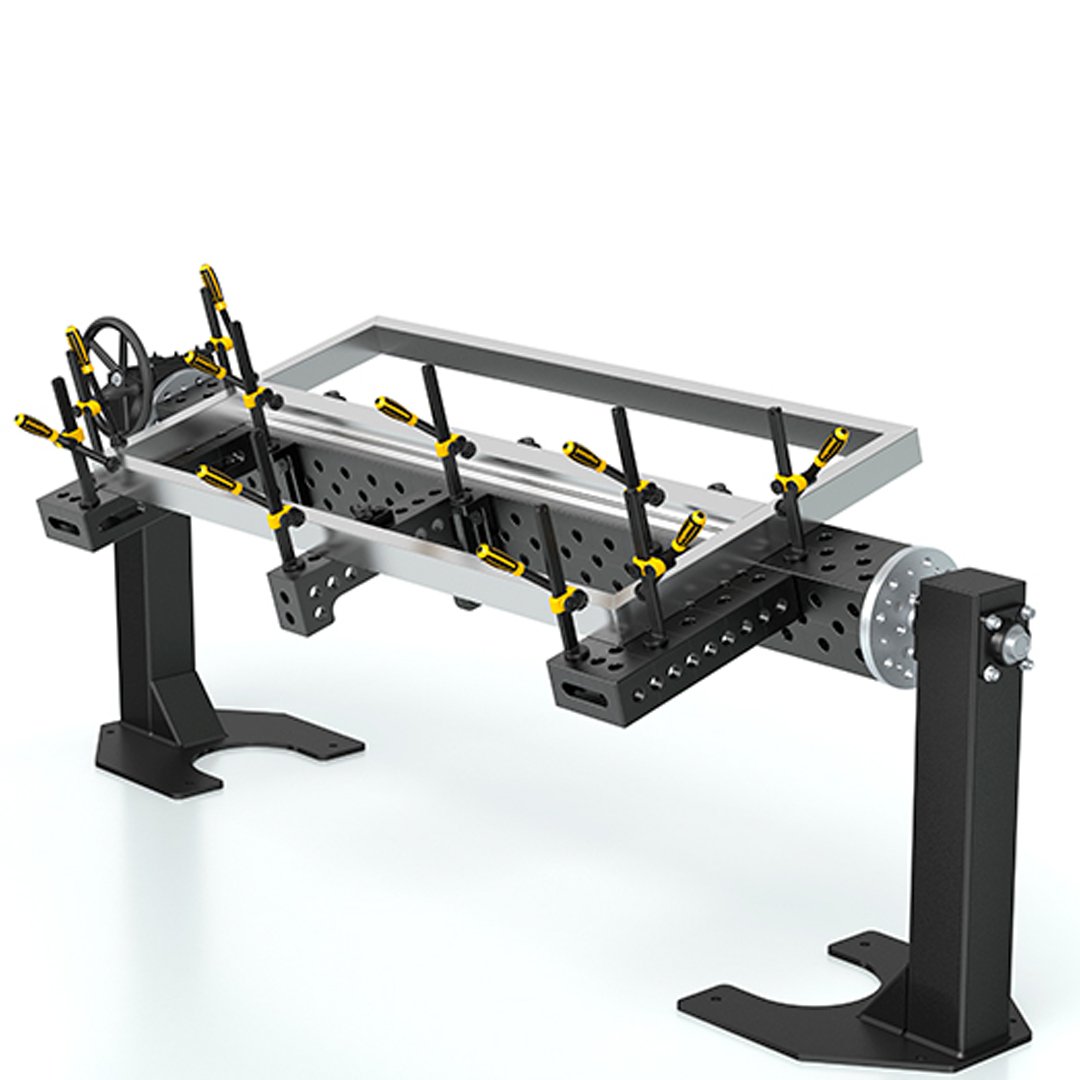

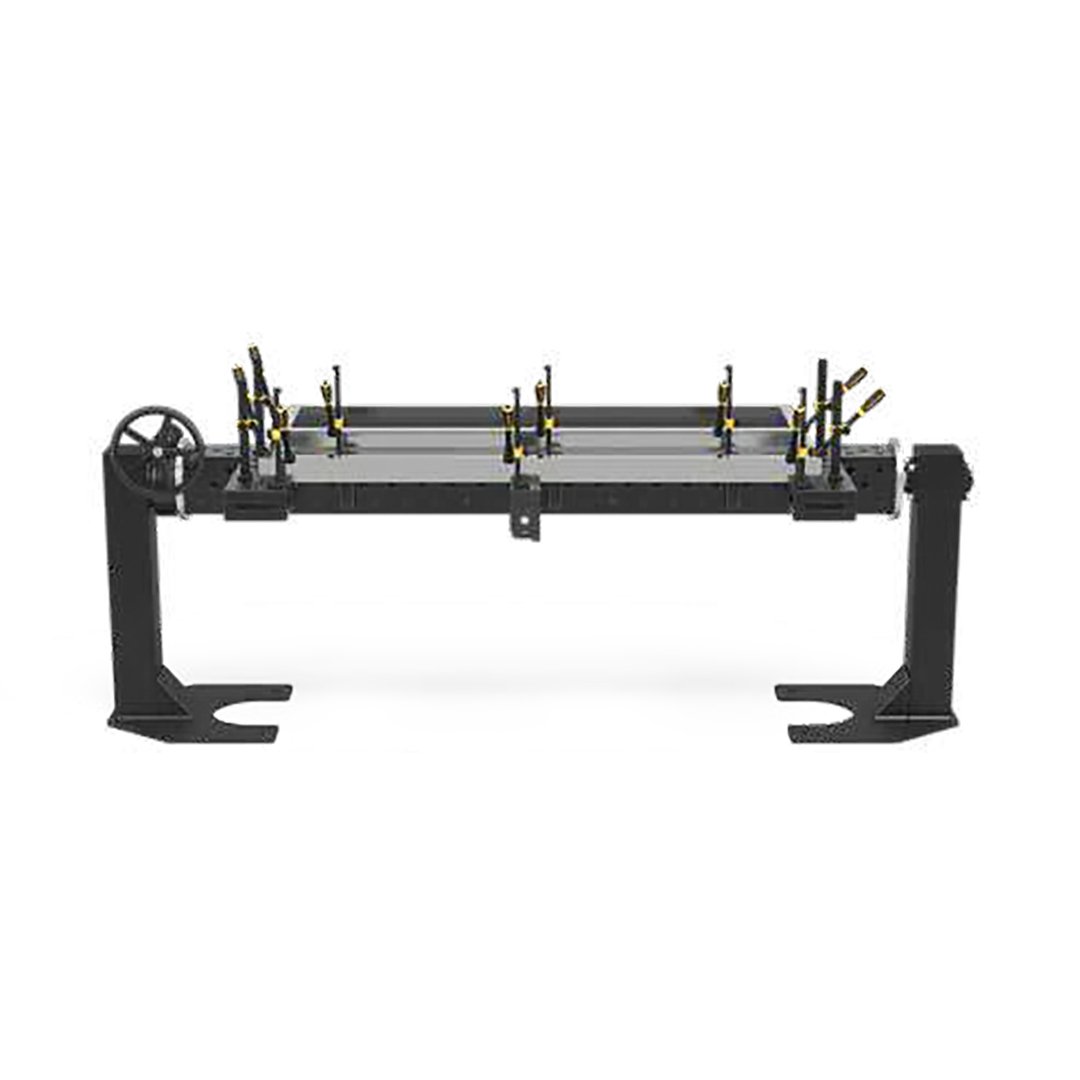

THE SIEGMUND SYSTEM 28 IMPERIAL SERIES M-POSITIONER IS IDEAL FOR ANY WELDING, ASSEMBLY AND MAINTENANCE TASK.

The Siegmund Positioner has an Infinitely Adjustable Vertical/Height Adjustment with Hydraulic Rotary and Tilt Functions. Made Specifically for Clamping of Components on Siegmund U-Squares.

PRODUCTIVITY

• Rapid Alignment of Workpieces.
• Optimum Ergonomic Positioning Offers Maximum Productivity.
• One Set-up for Rotating.
• Reduced Down Time.

TECHNICAL CHARACTERISTICS

• Force Transmission through a Bearing with Integrated Gear.
• Drive Manually via Hand Wheel.
• Universal Flange for Clamping of Siegmund U-Squares. (U-Shapes Sold Separately)

ERGONOMICS

• Convenient Access to Component Delivers Best Product Performance.
• Reduced Risk of Repetitive Strain Injury.

IMPROVED QUALITY

• Improved Quality with Flexible Positioning (Flat Position).
• Improved Quality through Maximum Access.

HEAVY-DUTY SQUARE U-SHAPES (SOLD SEPARATELY)

• A Multitude of Clamping Combination Options with Squares and Stops by the Five-Sided Bore Holes.
• Supports Squares up to 96" in Length.
• Each Square is Connected with Connecting Bolts for a Secure Hold.

Specs and Features

of the M-Positioner for

System 28 Imperial (Inch) Series

Item No. US6M150016

Specs & Features

of the M-Positioner

for System 28

Imperial (Inch) Series

Item No. US6M150016

Welding Table Specs and Features:
Item No. US6M150016
- Weight Positioner Approx.: 397 lbs.
- Gear ratio: 1:73
- Axis of rotation: Horizontal
- Max. Length Square U-Shape: 96"
-Hand Wheel with Handle Ø 12-3/8"
- Load Capacity: 3,300 lb.
- Turning Movement: 664 lbf·ft
- Drive: Manual
- Square U-Shape Compatibility: System 28 Imperial Series

Working Height (A): 33-1/2"
Tower Height (B): 37-5/8"
Total Height (C): 44-7/8"
Base Plate Width (D): 23-5/8"
Base Plate Length (E): 23-5/8"
