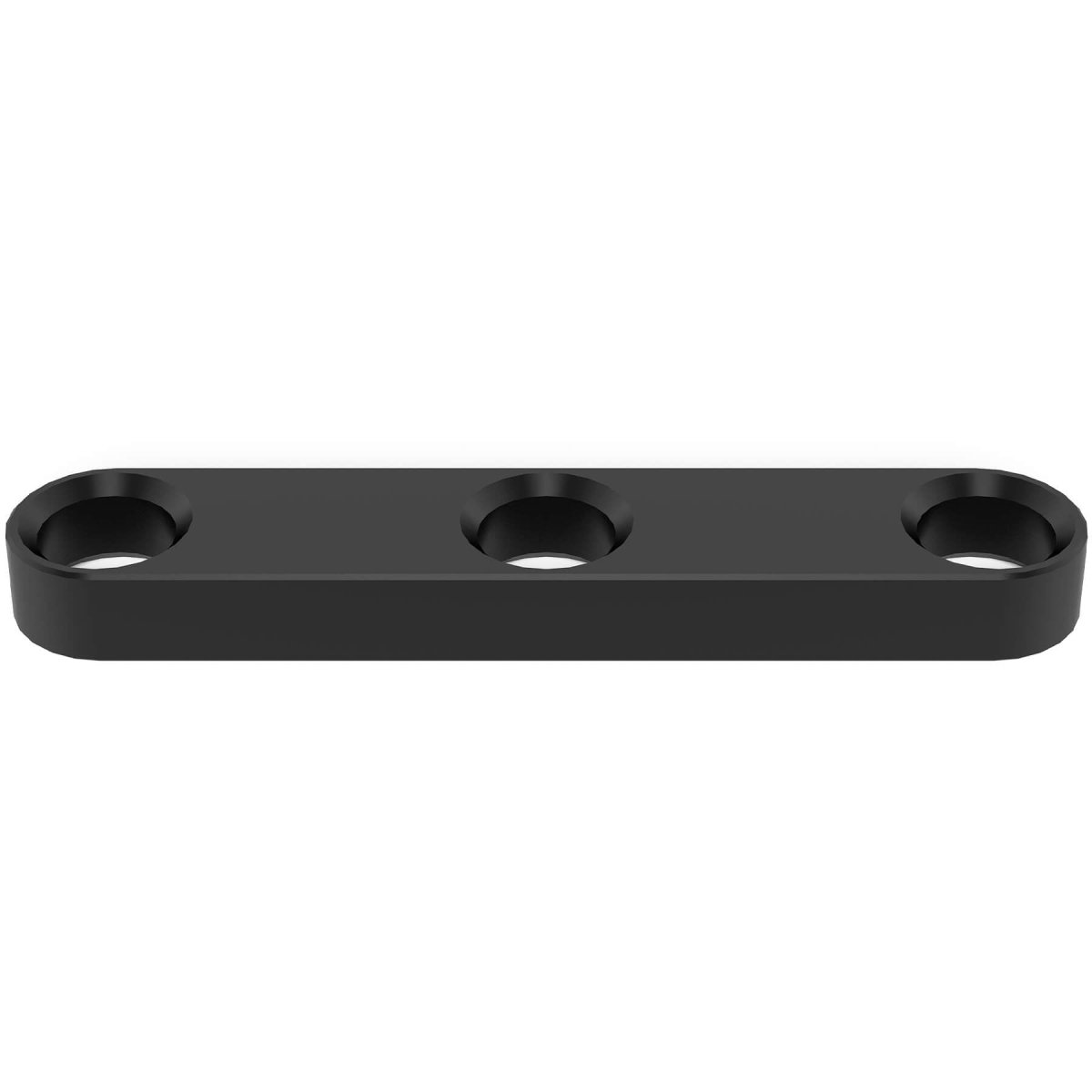

USAP160602.X7: Oblong Adapter For Screw Clamps
- Product SKU: USAP160602.X7
- Category: System 16 Imperial Series (INCH) Welding Tables and Fixturing Accessories

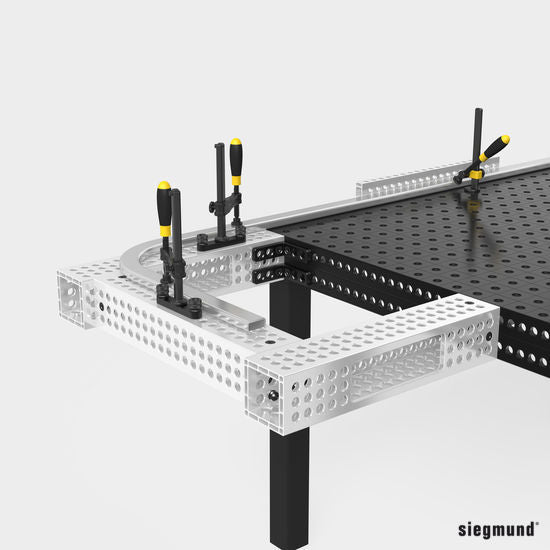

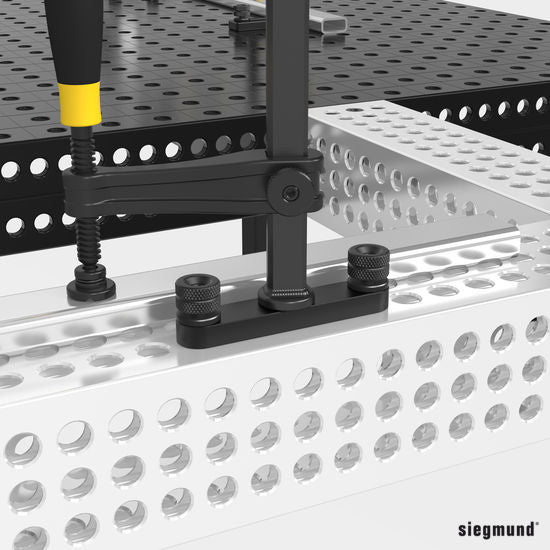

The Siegmund Oblong Adapter For Screw Clamps is required for the use of screw clamps in aluminum profiles. The lower material thickness of the aluminum profiles can be compensated by using the adapter. The Siegmund Oblong Adapter For Screw Clamps can be fixed on the aluminum profile by using fast clamping bolts without slot. The screw clamps then can be inserted into one of the holes in the adapter and thus have a secure hold.
Specs and Features:
- Item No. USAP160602.X7
- For Screw Clamps: US160610, US160630, US160604, US160620
- For Fixing: Clamping Bolt Without Slot
- Length: 4-7/8" (123.5 mm)
- Width: 7/8" (22 mm)
- Height: 1/2" (12.7 mm)
- Weight: 0.42 lbs.
