USAR28014122.VL: 4'x8" Aluminum Profile Bracket with Elongated Holes For System 28 Imperial Series Welding Tables

Name: USAR28014122.VL: 4'x8" Aluminum Profile Bracket with Elongated Holes For System 28 Imperial Series Welding Tables
Brand: Siegmund
SKU: USAR28014122.VL
Price: 183 USD
Availability: InStock

Manufacturer: Siegmund

Part No. (SKU): USAR28014122.VL

Current Availability in the USA: 28 In Stock

Series: 28mm Imperial Series Welding Table Accessories

$183; ~~$258~~; $183
Unit price: per

Subtotal: $183

Quantity:

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description
Reviews
Financing
F.A.Q.
Catalogs

Description

The System 28 Aluminum Profile Bracket is the ideal choice for extending any project.

All System 28 Aluminum Profile Brackets Feature the Latest Upgrades in Aesthetics, Versatility, and Durability. Low Cost, Lightweight, Large Component Clamping Tools! Move Large Components Without a Crane or Forklift.

The Siegmund System 28 Aluminum Profile Bracket

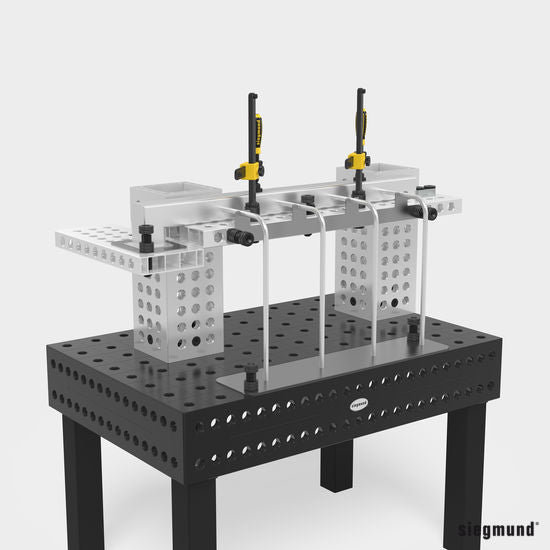

Can Be Used as Table Extensions or as Vertical Clamping Surfaces. Paired With the Siegmund Clamping Bolts, Aluminum Profiles by Siegmund Are Versatile in Their Application. The Siegmund Aluminum Profile Is Stable Due to Their Large Dimensions and Ideal for Welding and Fixturing Expansive Projects, Helping You Reach Your Desired Height and Length in Any Configuration Possible.

FOR VARIOUS APPLICATIONS

They Are Avalibile in 2" Grid Surfaces and Elongated Hole Surfaces

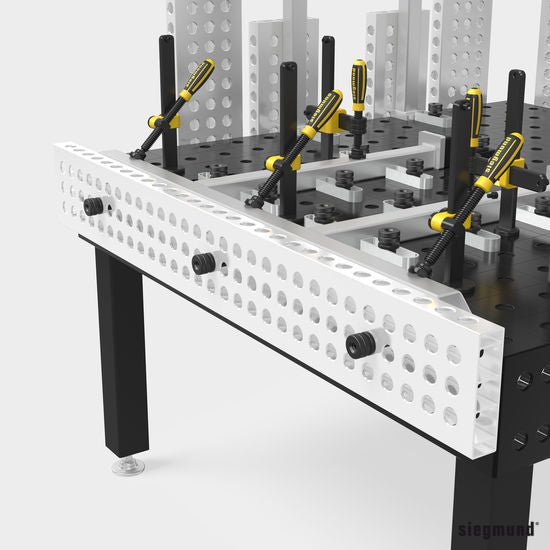

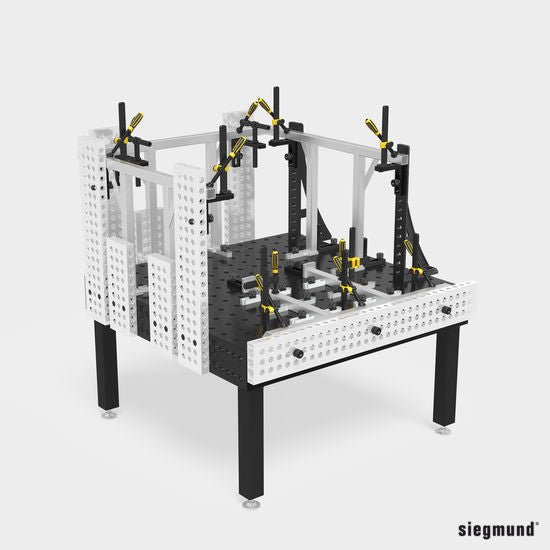

Siegmund Aluminum Proﬁles Offer Many Application Possibilities Such as Table Extensions or Vertical Clamping Surfaces.
The Versatile Boreholes on All Sides Provide Many Clamping and Combination Options With Other Squares and Stops.

ADAPTER FOR SCREW CLAMPS DOUBLE

The USAP280602.N Adapter Is Required for the Use of Screw Clamps in Aluminum Proﬁles.
The Lower Material Thickness of the Aluminum Proﬁles Can Be Compensated by Using the Adapter.

LIGHTWEIGHT CLAMPING TOOLS

Aluminum Is 75 – 90% Lighter Than Comparable Clamping Tools.
You Can Easily Position and Clamp Even Large Aluminum Profiles by Hand.

SUITABLE ACCESSORIES

This Type of Bolt Has Optimal Grip Ergonomics.
The Bolt Body Is Made of Hardened High-alloy Steel for Maximum Strength.
The Manual Clamping Force Is Minimized by Four Bearing Balls Based on the Toggle Design Principle.

IDEAL CLAMPING BOLT WITHOUT SLOT (BOLTS NOT INCLUDED)

This Type of Bolt Has Optimal Grip Ergonomics.
The Bolt Body Is Made of Hardened High-alloy Steel for Maximum Strength.
The Manual Clamping Force Is Minimized by Four Bearing Balls Based on the Toggle Design Principle.

Specs and Features
of the System 28 Imperial Series
Aluminum Profile Bracket
Item No. USAR28014122.VL

Specs & Features
of the System 28 Imperial Series
Aluminum Profile

Specs and Features:

Item No. USAR28014122.VL
Stable Stop Due To Large Dimensions.
Version With Full Grid With Many Clamping Options.

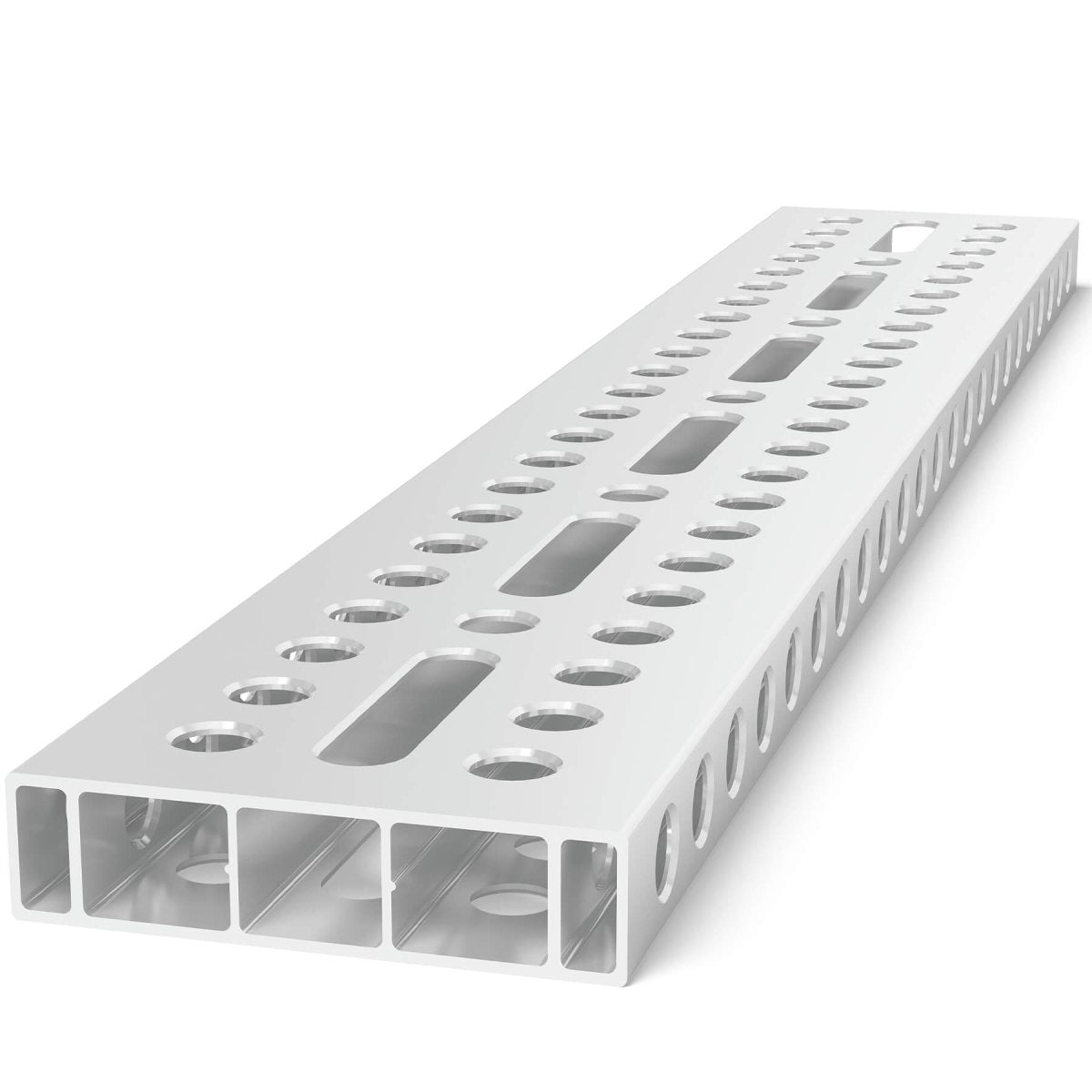

Version With Elongated Hole: Variable Clamping Also Possible At An Angle.
Requires Clamping Bolt Without Slot Triple Table Leg Required (Reduction Bushing US000546 required)
Length: 4'
Width: 8"
Height: 2"
Weight: 14.45 lbs.
