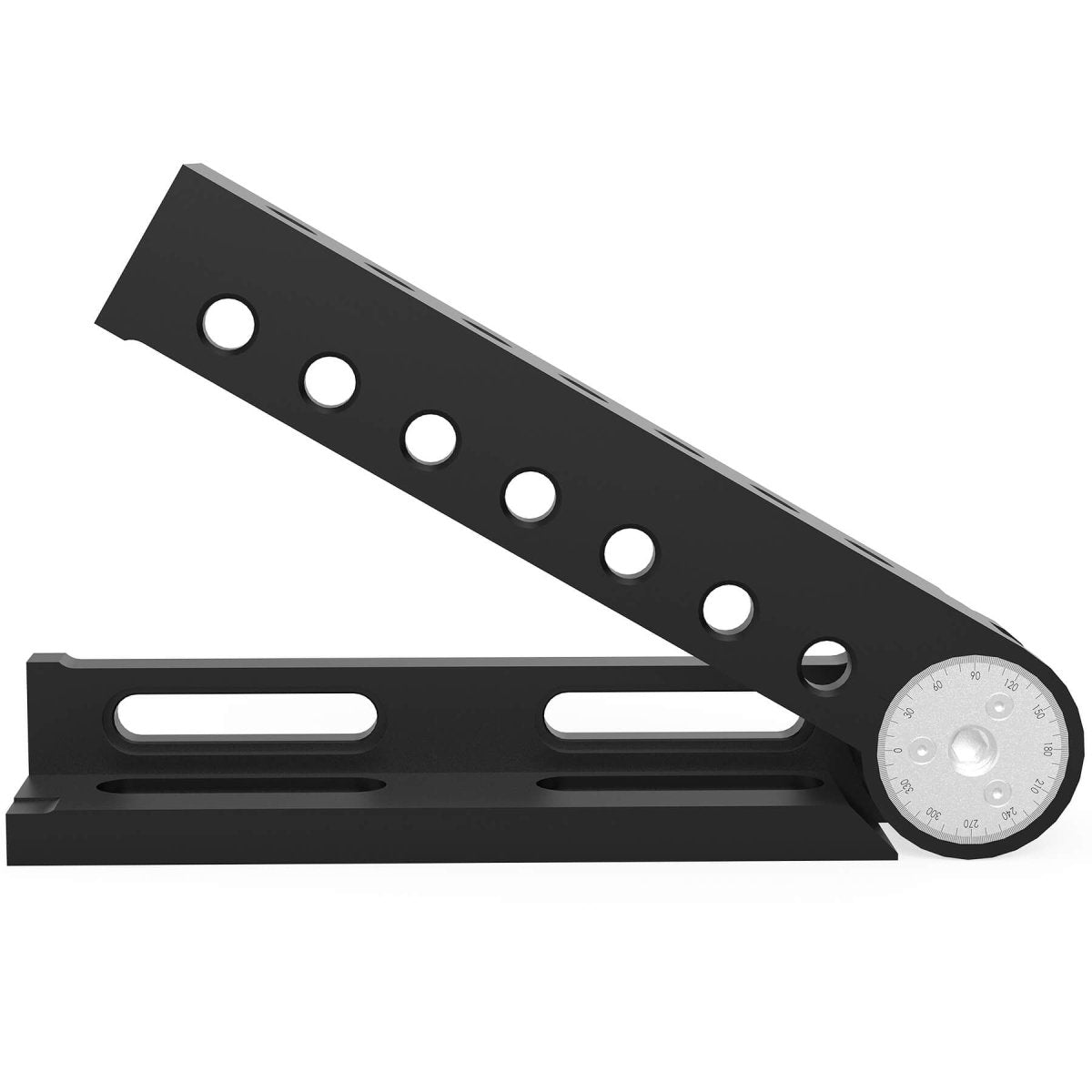

The Siegmund Universal Angle Hydromechanical Clamping (Burnished) enables precise angular positioning with powerful, repeatable retention for complex fabrication setups. Designed for maximum flexibility, it supports smooth angle adjustment between 0° and 225° while maintaining full clamping strength through hydromechanical force transmission.
- Provides secure, infinitely variable adjustment from 0° to 225°.
- Hydromechanical locking delivers high holding power and stability.
- Compatible with Siegmund System 22 Metric Series tables and components.
- Side length 475mm (18.70" Inches) ensures strong support across wide work areas.
- Burnished finish offers lasting surface protection and smooth operation.
- Angle can be precisely set with a digital angle meter (sold separately).
Key Features:
- Hydromechanical system ensures consistent, high clamping force.
- Infinitely adjustable for precise angular fabrication.
- Durable burnished surface resists wear and oxidation.
- Supports accurate setup for custom frames, fixtures, and assemblies.
- Compatible with Siegmund System 22 tooling and accessories.
Specifications:
- Series: Siegmund System 22 Metric Series
- Side Length: 475mm (18.70" Inches)
- Adjustment Range: 0°–225°
- Material Finish: Burnished
- Weight: 50.71 lbs. (23 kg.)
Common Uses:

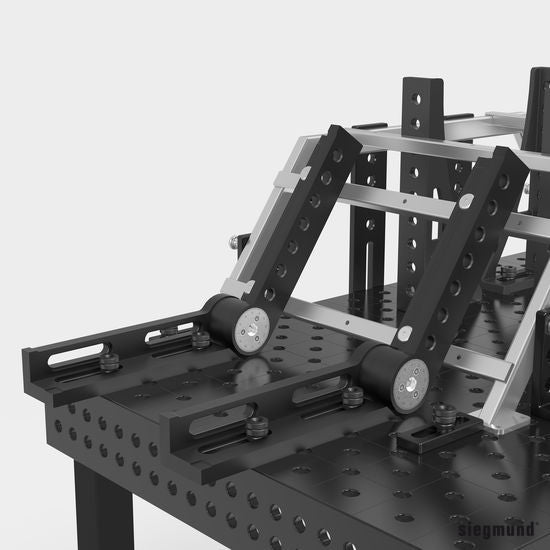

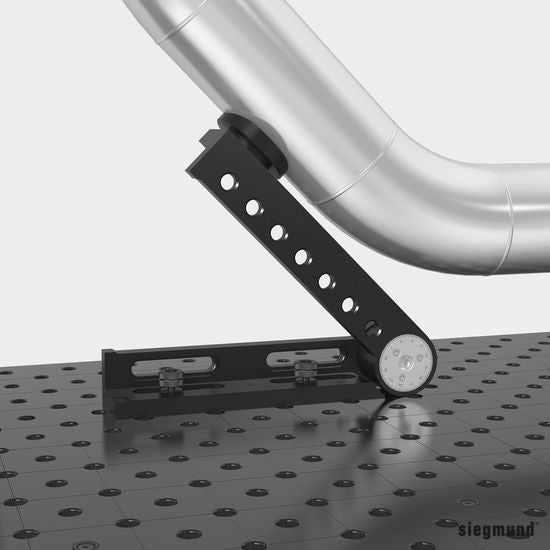

The Siegmund 2-220171 Universal Angle Hydromechanical Clamping provides precise, stable angle control for welding, fabrication, and assembly of multi-plane components. It enables repeatable positioning of parts at any angle between 0° and 225°, allowing fabricators to achieve complex geometries quickly and accurately. Ideal for advanced fixturing, structural alignment, and prototype work requiring precision and repeatability.
