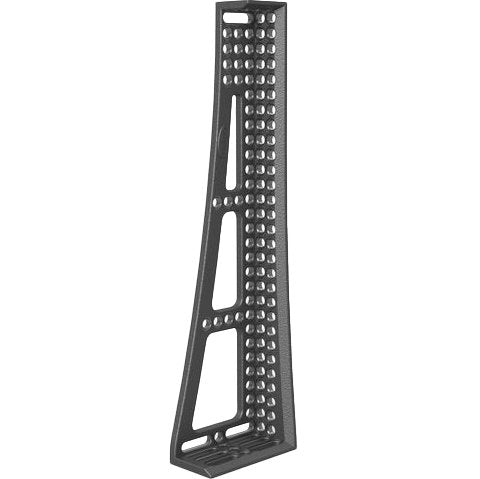

2-160146.N: 750 GK Left Stop and Clamping Square (Nitrided)

2-160146.N: 750 GK Left Stop and Clamping Square (Nitrided)

Availability: In Stock
$490
Successful pre-order.Thanks for contacting us!

The Siegmund 750 GK Left Stop and Clamping Square opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.

Due to the dual bore holes the square can be positioned in a 25mm grid. Therefore the clamping options are doubled.

The threefold, expanded oblong hole increases the stability and precision of clamping.

Specs and Features:
- Item No. 2-160146.N
- Nitrided
- Stop on Left
- Standard mm Fine Scale
- Length: 200mm (7.87'')
- Width: 100mm(3.93'')
- Height: 750mm (29.52'')
- Material Thickness: 14mm (0.55'')
- Weight: 18.3 Ibs.
