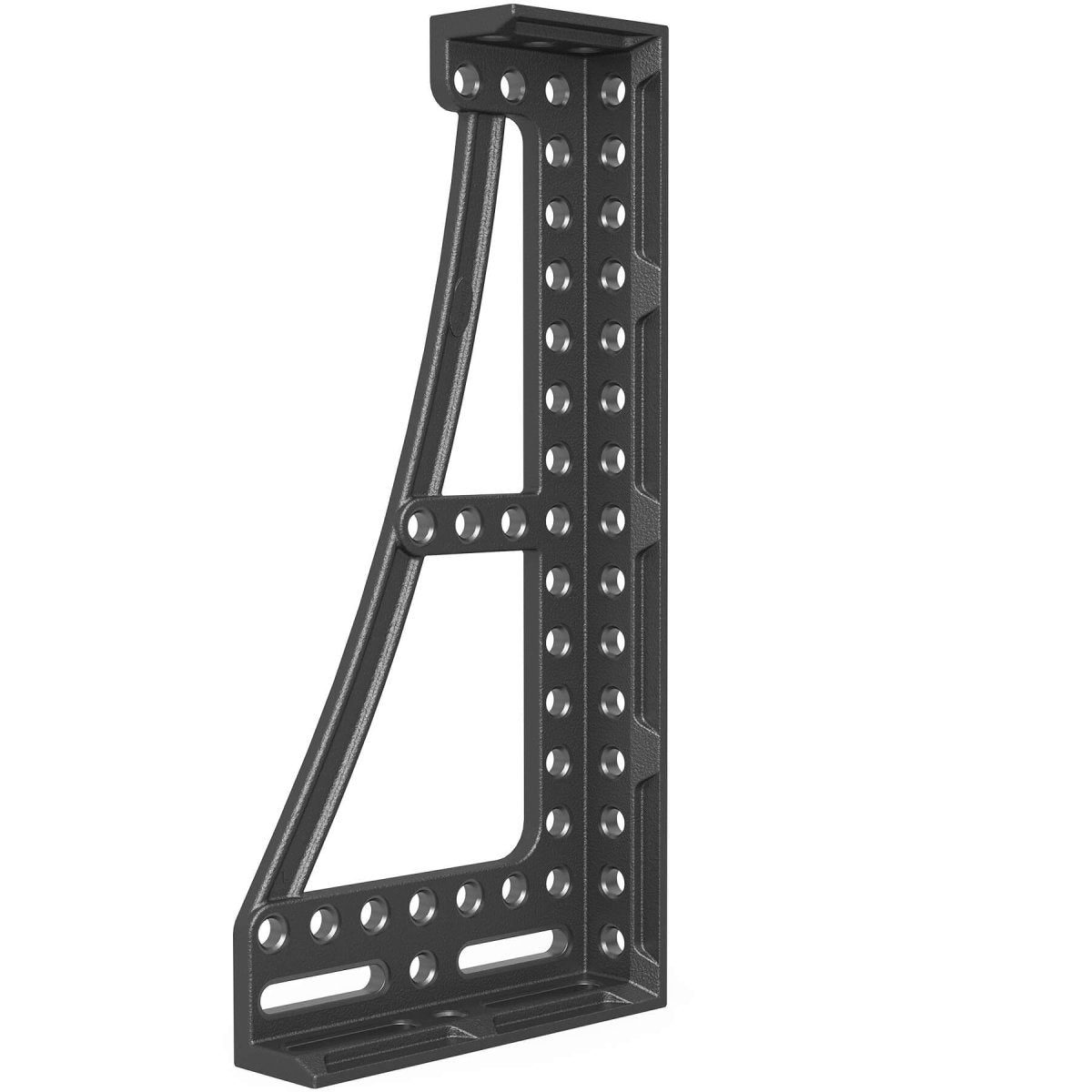

The Siegmund Stop and Clamping Square 800 GK Left Nitrided delivers rigid, high-precision alignment for large and heavy components. Its three-dimensional shape provides unmatched flexibility in positioning and securing workpieces during welding or assembly.
- Manufactured from GGG40 ductile cast iron for maximum durability and vibration resistance.
- Precision nitrided surface resists corrosion and wear for long service life.

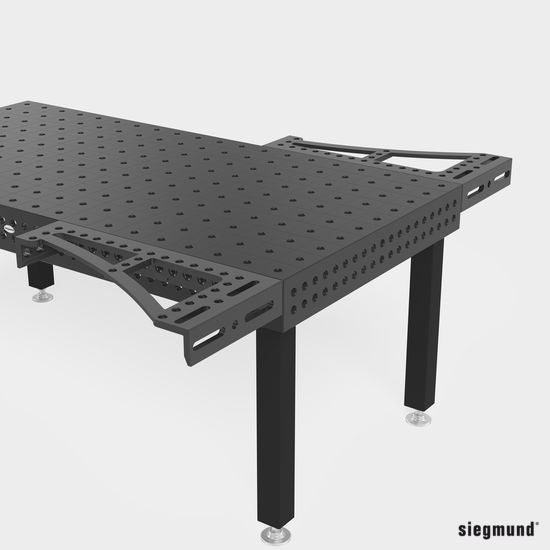

- Functions as both a heavy-duty stop and table extension.
- Features an additional bore row at the stop side for enhanced stability.
- Designed for left-side stop orientation with a standard fine scale for precise setup.

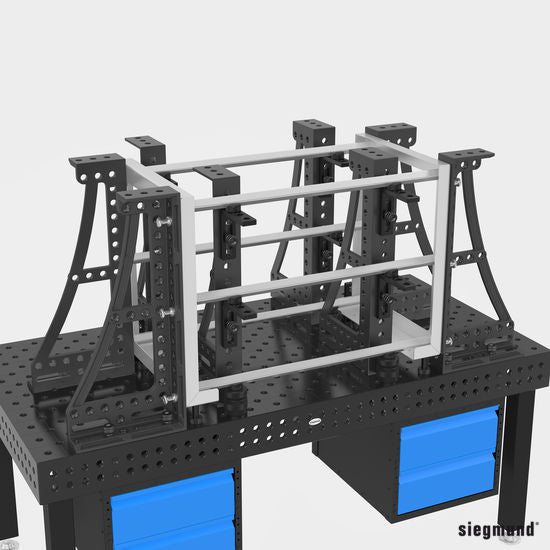

- Ideal for use in pairs to maintain square alignment across large assemblies.
Key Features:
- Three-dimensional design enables multiple clamping positions.
- GGG40 ductile cast iron construction ensures rigidity and strength.
- Nitrided finish protects against corrosion and weld spatter.
- Extra bore row increases stability during setup.
- Optimized for left-hand orientation with integrated fine scale.
- Recommended for use in pairs for symmetrical fixturing.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 373mm (14.69" Inches)
- Width: 95mm (3.74" Inches)
- Height: 800mm (31.50" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
- Weight: 56.88 lbs. (25.8 kg.)
Common Uses:
The Siegmund 2-220144.N Stop and Clamping Square provides a stable reference and mounting surface for large or heavy workpieces. It enables fast, precise 90° alignment when fabricating structural frames, fixtures, or assemblies. Frequently used as both a stop and extension on Siegmund System 22 tables, it ensures consistent accuracy under demanding loads in production or custom welding environments.
