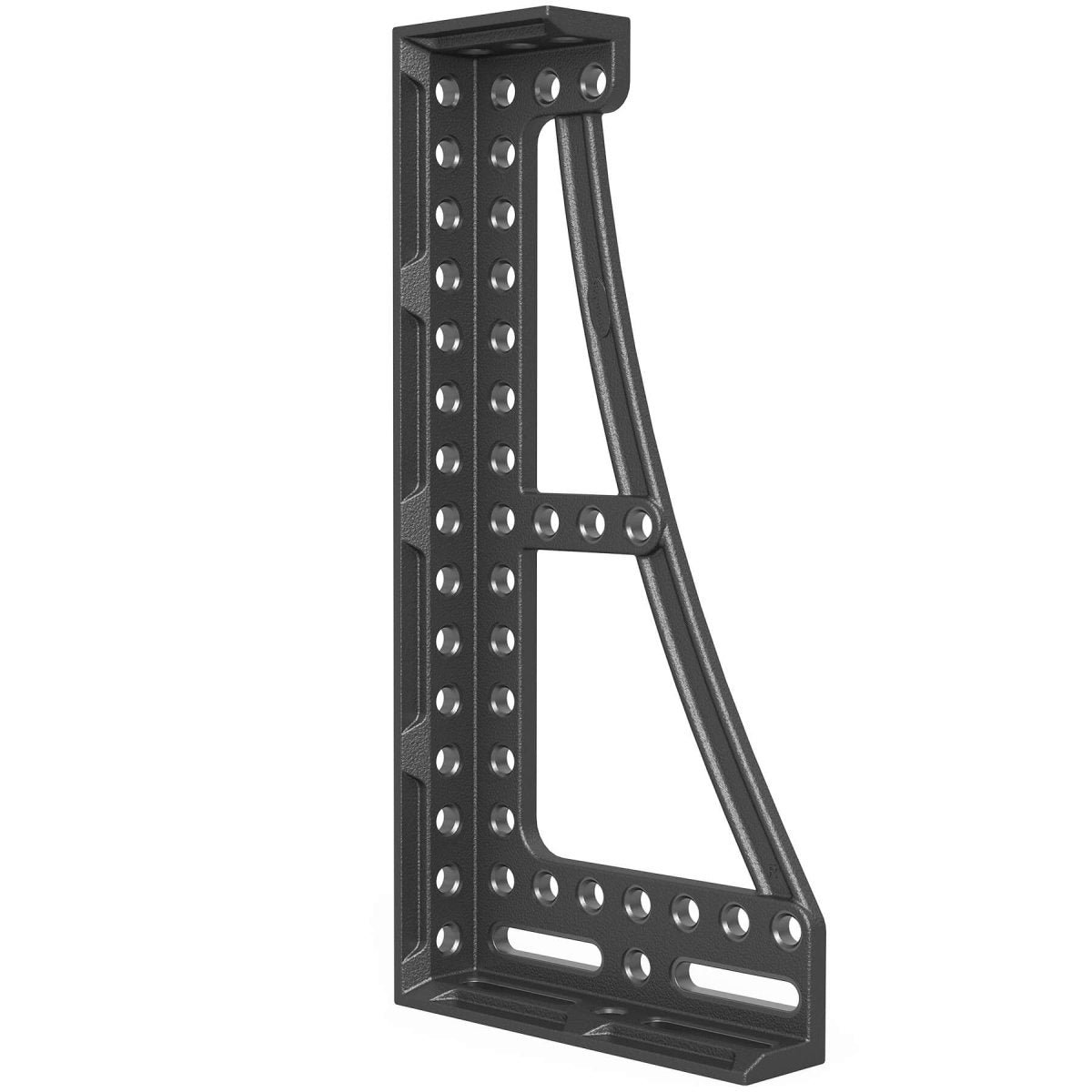

The Siegmund Stop and Clamping Square 800 GK Right Nitrided provides precise 90° positioning and heavy-duty clamping capability for demanding fabrication work. Its three-dimensional design allows flexible use in multiple orientations, maintaining strength and accuracy even under high loads.
- Constructed from GGG40 ductile cast iron for exceptional rigidity and long-term durability.
- Nitrided surface resists wear, corrosion, and weld spatter buildup.

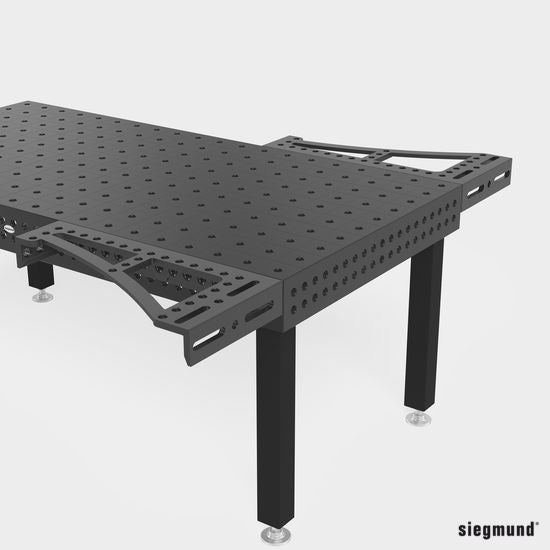

- Functions as both a solid stop and an extended table surface for larger setups.
- Additional bore row at the stop side enhances strength and positioning options.
- Configured for right-side stop orientation with a standard fine scale for exact setup.
- Commonly used in pairs for balanced alignment and greater stability.
Key Features:
- Three-dimensional design supports versatile clamping applications.
- GGG40 ductile cast iron ensures maximum load stability and durability.
- Nitrided surface finish protects against corrosion and wear.
- Extra bore row on the stop side improves strength and flexibility.
- Right-hand configuration with integrated fine scale.
- Recommended for paired use to maintain symmetrical alignment.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 373mm (14.69" Inches)
- Width: 95mm (3.74" Inches)
- Height: 800mm (31.50" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Material: GGG40 Ductile Cast Iron, Plasma Nitrided
- Weight: 56.88 lbs. (25.8 kg.)
Common Uses:

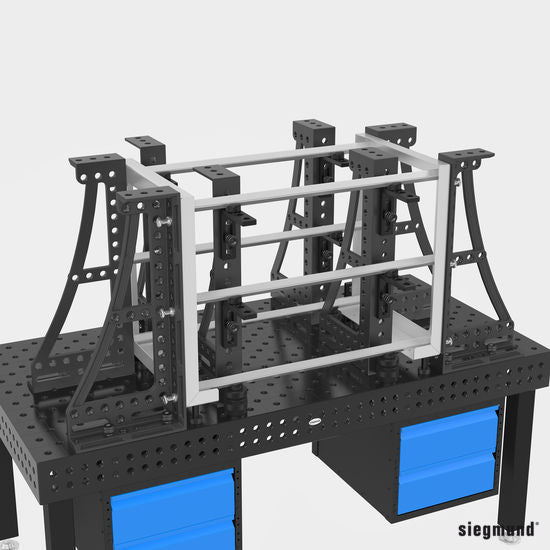

The Siegmund 2-220146.N Stop and Clamping Square delivers precise fixturing for large, heavy components in welding, assembly, and alignment tasks. Used as both a table extension and a clamping reference, it ensures repeatable 90° accuracy and superior rigidity. Ideal for System 22 setups that require right-hand alignment during structural or frame fabrication.
