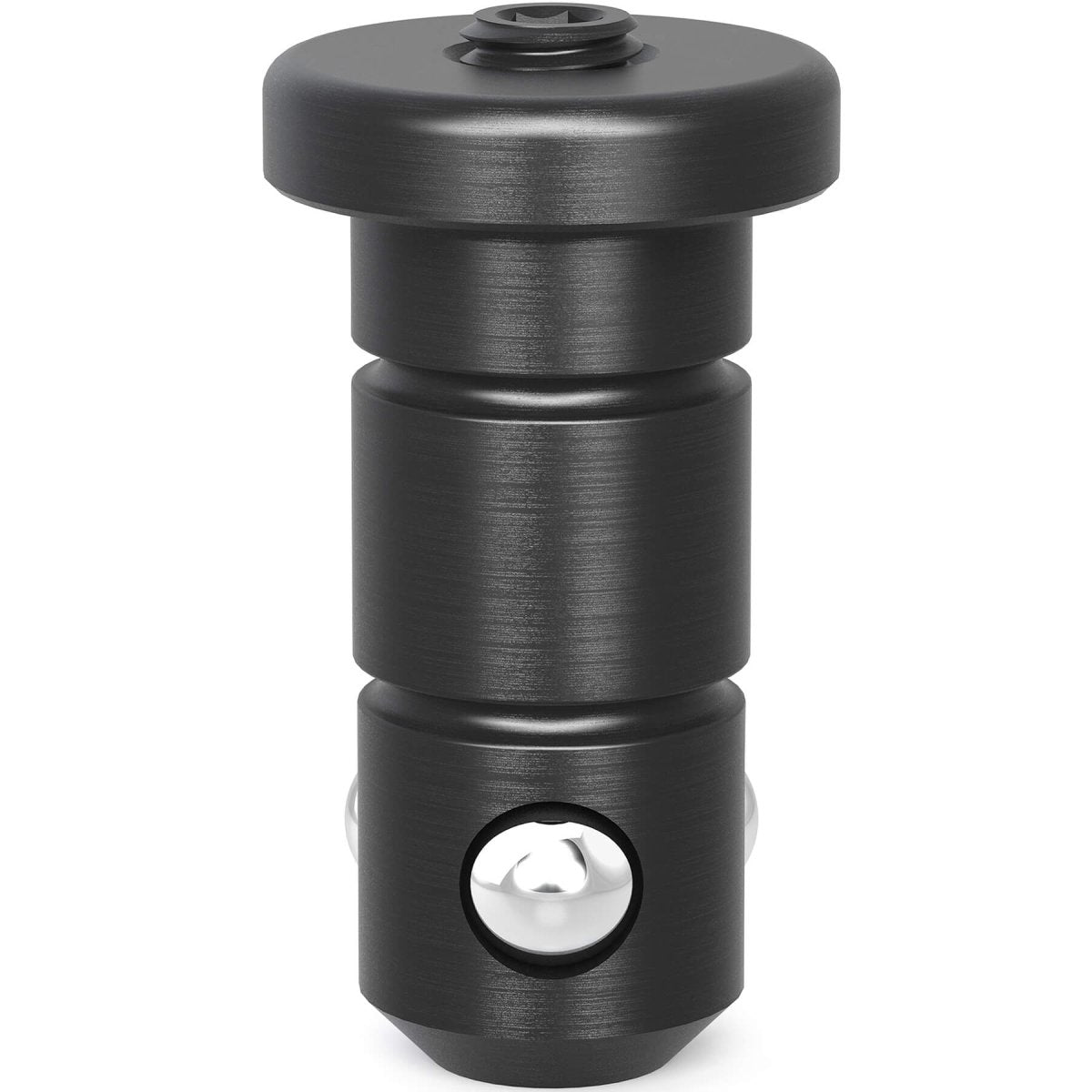

2-220522: Short & Flat Fast Clamping Bolt (Burnished)
2-220522: Short & Flat Fast Clamping Bolt (Burnished)
- Product SKU: 2-220522
- Category: System 22mm Metric Series Welding Tables and Fixturing Accessories
Availability:
In Stock
$51
$63
The Siegmund Short & Flat Burnished Clamping Bolt is mainly used for clamping of oblong holes. Like the countersunk bolt, it reduces protrusion.
Ideal for cordless screwdriver with up to 25 Nm turning moment.
Note: This bolt CANNOT be used for connecting tables and U-shaped squares!
Clamping torque dependent on table type.
Specs and Features:
- Item No. 2-220522
- Burnished
- For Clamping 2 Siegmund Components
- Length: 57mm (2.24'')
- Diameter: 22mm (0.86'')
- Shearing Force: 130 kN
- Tightening Torque Steel: 15 Nm
- Tensile Force: 15 kN
- Weight: 0.33 Ibs.
