US164001: System 16 Workstation Including 2.8'x4' (32"x48") Perforated Plate (Siegmund Imperial Series)

Manufacturer: Siegmund
Part No. (SKU): US164001
Current Availability in the USA: 31 In Stock
Series: System 16 Imperial Series Welding Tables
$1,963
$2,772
$1,963
Subtotal: $1,963

Earn [points_amount] when you buy this item.

10 customers are viewing this product

EXTREMELY FAST SHIPPING

All In-Stock Orders are Now Shipping Out in Just 1 to 3 Business Days

Description

Item No. US164001

The System 16 Welding Workstation is the ideal choice for fine detail applications.

All System 16 Workstations feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

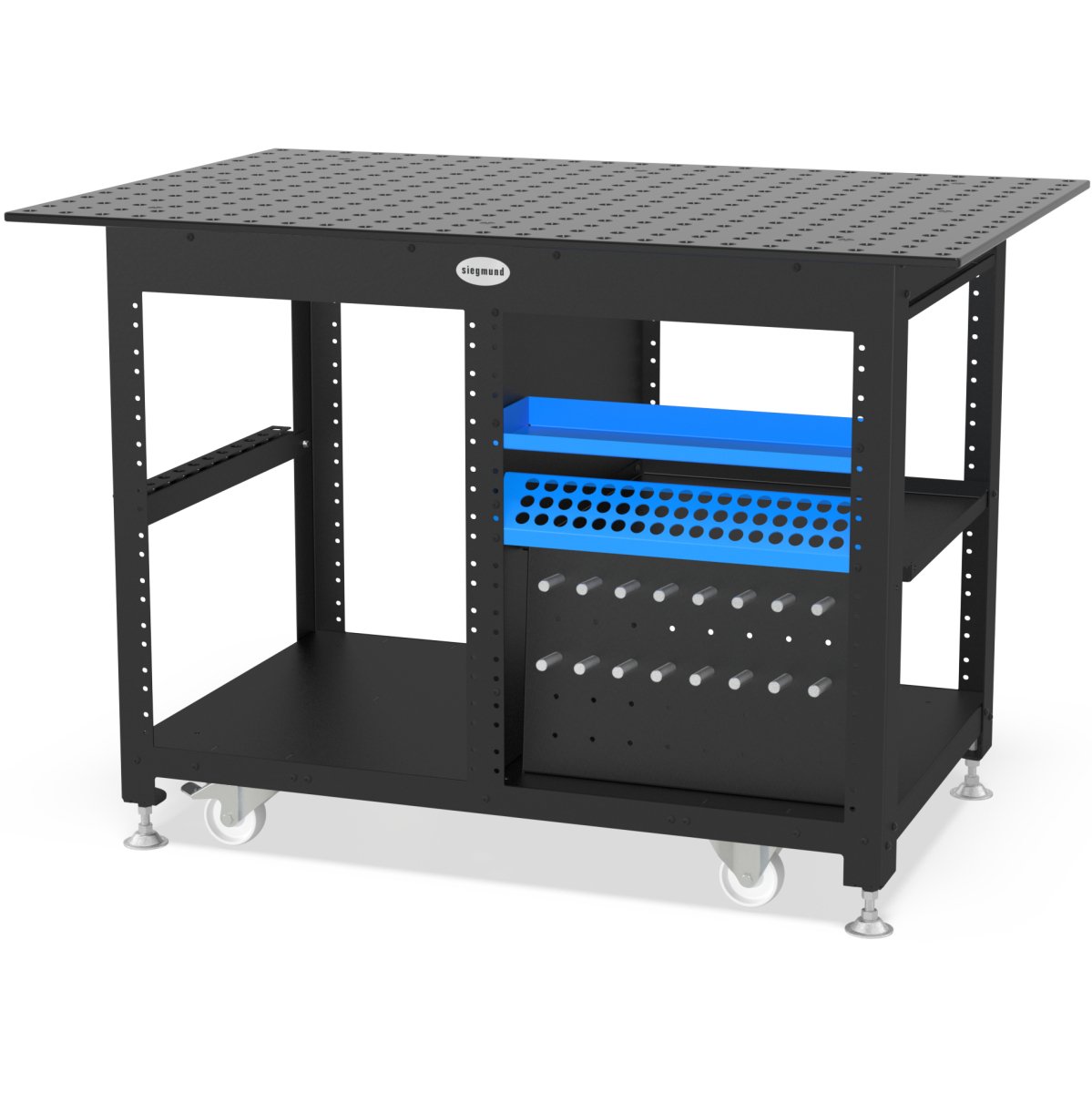

The Siegmund System 16 Workstation

Thanks to the intelligent concept of the Siegmund Workstation, all of your tools are always within reach at your workplace.

The Siegmund Workstation is the perfect welding platform, with more than enough space for all of your accessories.

The Siegmund Welding Workstation is an International Design Excellence Awards (IDEA) Finalist Product. The Siegmund Workstation was designed to be a very flexible system. It functions as a welding table, a workbench or a mobile workshop trolley with optional wheels.

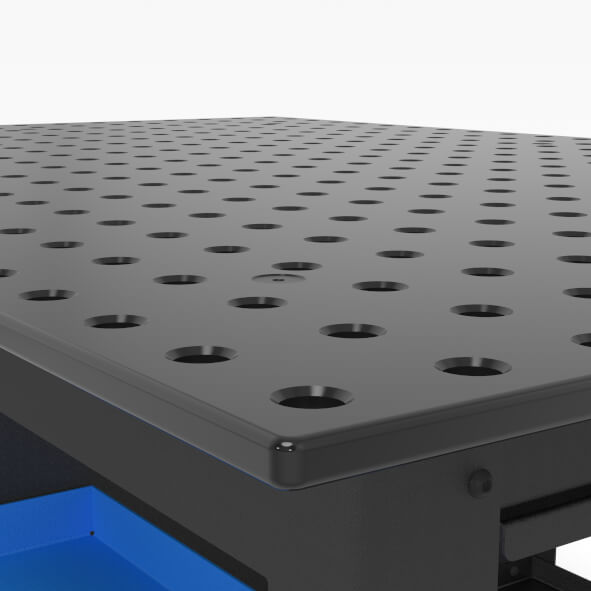

PERFORATED 2.8' x 4' (32" X 48") PLATE

  • Through-Hardened X8.7 Tool Steel + Plasma Nitrided and BAR-Coated
  • 16mm (5/8") Diameter Boreholes on Surface
  • 2" x 2" Center to Center Borehole Grid Distance
  • 7/16" to 1/2" Approximate Material Thickness

WORKSTATION LEGS

  • The combined leg and caster, gives the Siegmund Workstation mobility.
  • Casters are included with this Workstation as a Standard.
  • Base Plates have a "Fine Tune Adjustment" to enable a more precise working surface.

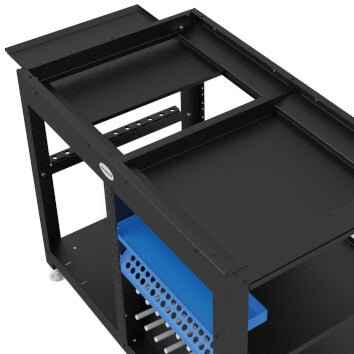

DIRT PROTECTION

  • Two Cover Slides are below the table to protect your tools from Weld Spatter and Dirt.
  • For Cleaning, you can pull out both covers like drawers.

THE WEIGHT BEARING LOAD

  • The Siegmund Workstation with base plate is able to bear a total weight of approximately 2,200 lbs.
  • Please note that when you are using the caster wheels, the overall weight load capacity is reduced to approximately 880 lbs.

MAXIMUM STORAGE

  • The Siegmund Workstation features defined storage for tooling and accessories that can be shelved for easy reach.
  • You can customize, build or retrofit your Workstation with drawers at various height to increase your storage capability.
  • "Upgrading" your workstation with more drawers is possible at any time. On the left and right side, you have 23-5/8" spacing.
  • The maximum weight load capacity per drawer is approximately 110 lbs.
  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.
Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

Specs and Features

of the System 16 Imperial Series Workstation

Item No. US164001

Specs & Features
of the System 16 Imperial Series
Workstations

Welding Table Specs and Features:

  • Overall Tabletop Size: 2.8' x 4' (32" x 48")
  • Overall Height of Workstation: 33"
  • Borehole Diameter: Ø 16mm (5/8")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 7/16" to 1/2"
  • Welding Table Material Type and Finish: Through Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Official Siegmund Welding Table Part No.: US164001
  • Maximum Weight Load Not Using Casters: 2,200 lbs. (Based on Even Distribution)
  • Maximum Weight Load Using Casters: 880 lbs. (Based on Even Distribution)
  • Approximate Workstation Weight: 320 lbs.
  • Boreholes on the Surface: are a 2"x2" Inch Grid Configuration.
