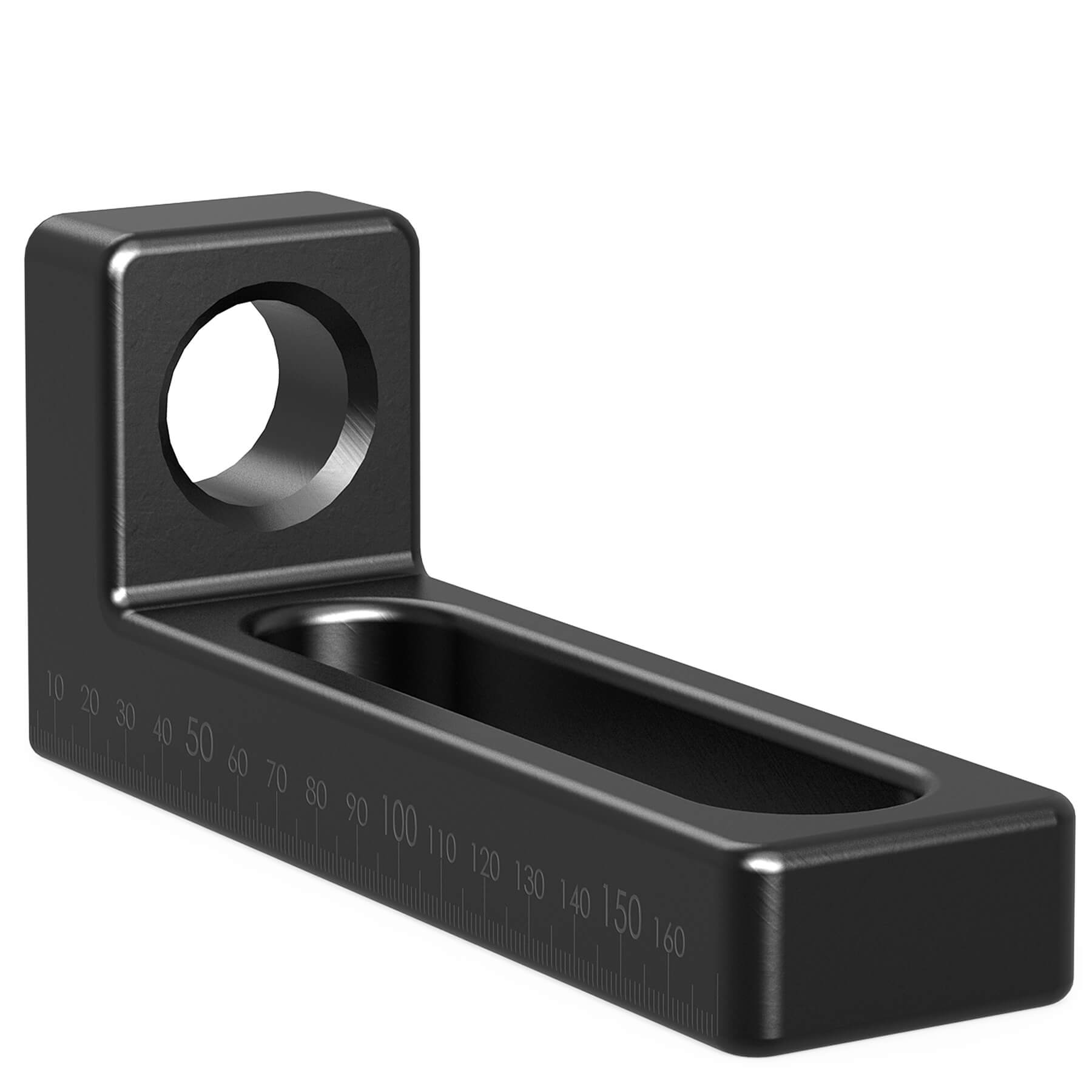

The 175x75mm Stop and Clamping Square SL Nitrided is a versatile fixture that functions as both a stop for large components and a height-adjustable support. Featuring an elongated hole and precise boreholes, it offers flexible positioning and reliable alignment. The nitrided finish ensures resistance to weld spatter, wear, and corrosion for long-term performance.
- Elongated slot allows flexible height adjustment.
- Functions as a stop or clamping square for large workpieces.
- Fine scaling on both sides supports accurate positioning.
- 25mm (0.98" Inches) thickness ensures rigidity under load.
- Weight of 3.09 lbs. (1.4 kg.) balances stability and easy handling.
- Durable nitrided surface provides extended service life.
Key Features:
- Dual-purpose design provides both stop and height-adjustable support.
- Elongated slot and boreholes enable flexible clamping.
- Fine scaling on both sides ensures repeatable accuracy.
- Nitrided finish resists wear, corrosion, and spatter.
- Fully compatible with Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 175mm (6.89" Inches)
- Width: 50mm (1.97" Inches)
- Height: 75mm (2.95" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 3.09 lbs. (1.4 kg.)
Common Uses:

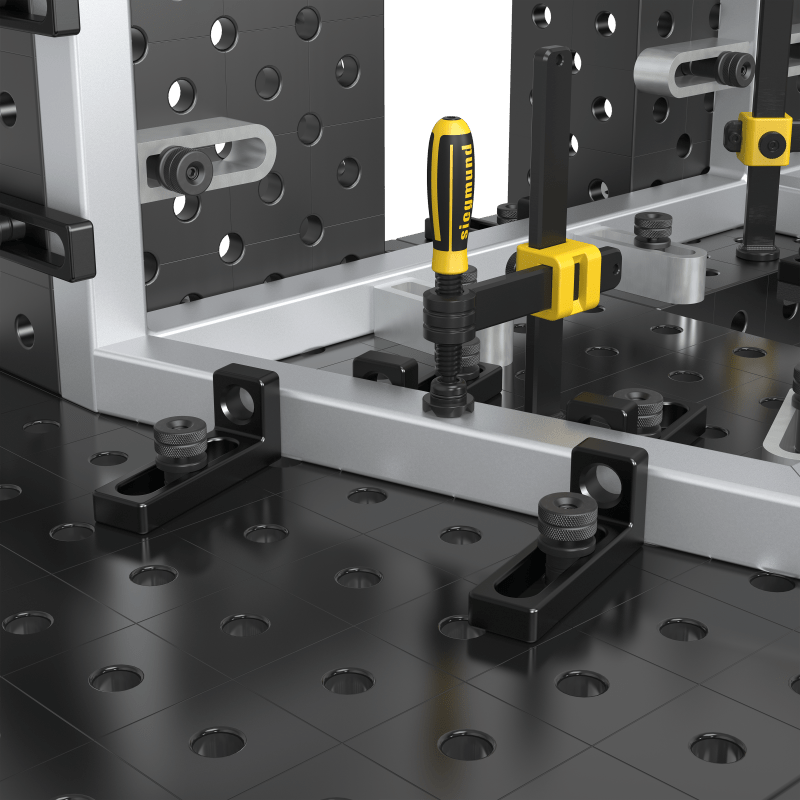

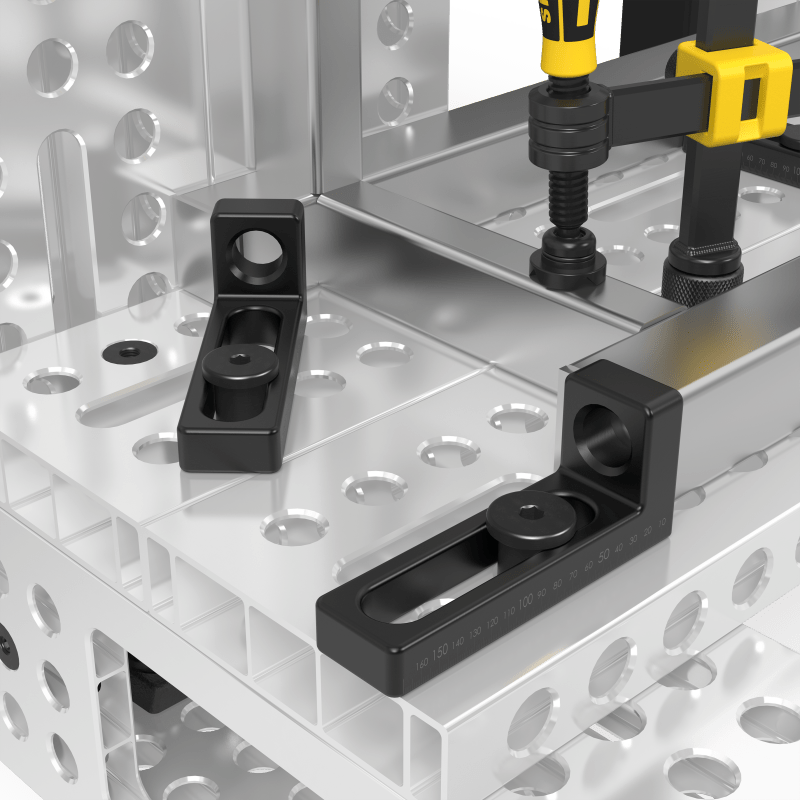

This stop and clamping square provides accurate 90° alignment for large components while also serving as an adjustable support. Its elongated slot enables flexible setups, making it a practical tool for welding, assembly, and fabrication environments where adaptability is essential.
