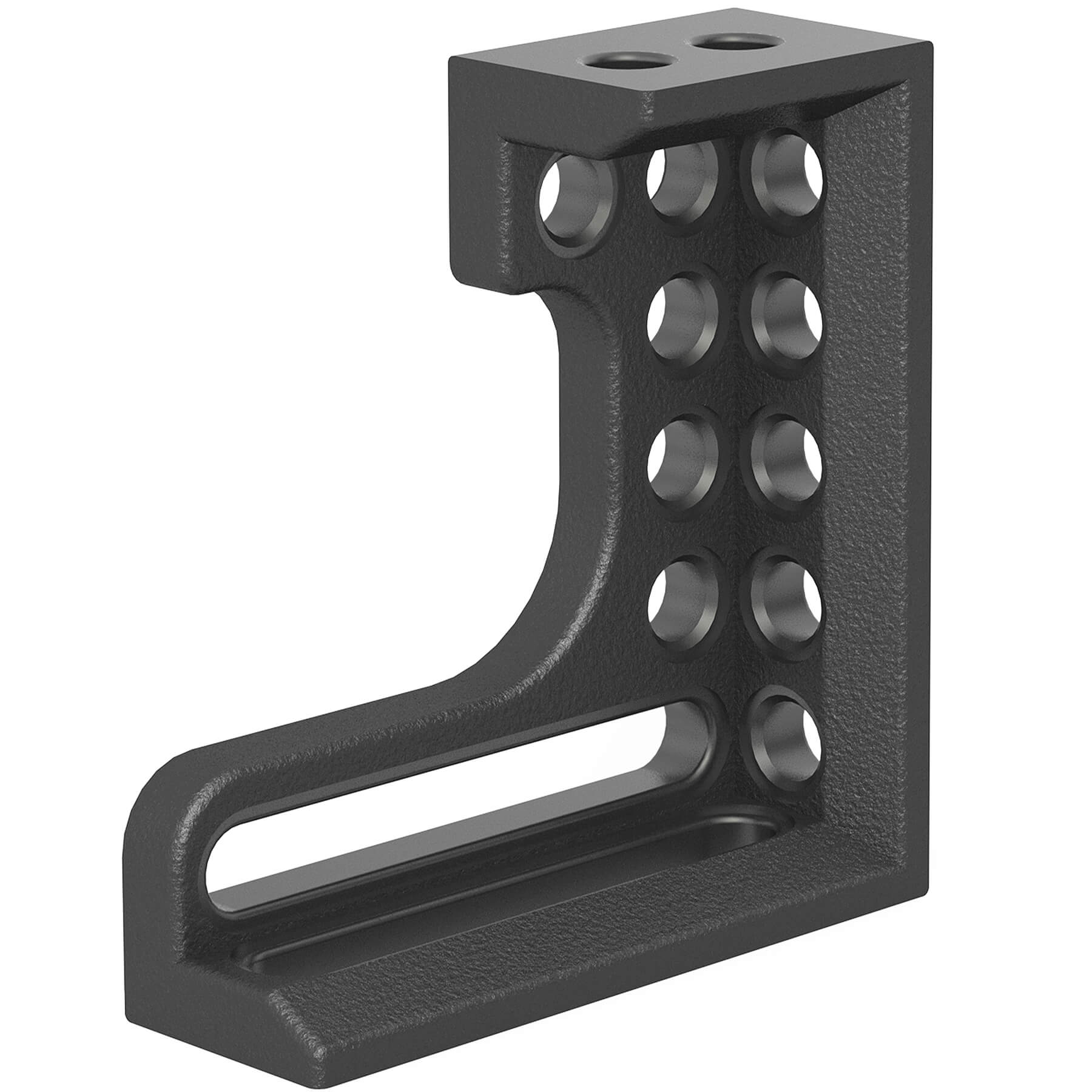

The Siegmund Stop and Clamping Square 300 GK Left is engineered for handling heavy components with precision and strength. Its three-dimensional design allows multiple clamping options, while its nitrided surface enhances durability and resistance against spatter and corrosion. Built from high-quality GGG40 ductile cast iron, it provides maximum stability in demanding shop conditions.
- Three-dimensional shape offers versatile clamping surfaces.
- Designed for heavy components and high-strength applications.
- Functions as both a stop and a table extension.
- Nitrided finish provides wear resistance and long service life.
- Recommended for paired use for balanced fixturing.
Key Features:
- Robust 27mm thickness ensures rigidity under heavy loads.
- Constructed from premium GGG40 ductile cast iron.
- Left-hand configuration for matched use with right-hand version.
- Fine scale standard on both sides for accurate setups.
- Fully compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 28.44 lbs. (12.9 kg.)
- Material: GGG40 Ductile Cast Iron
Common Uses:

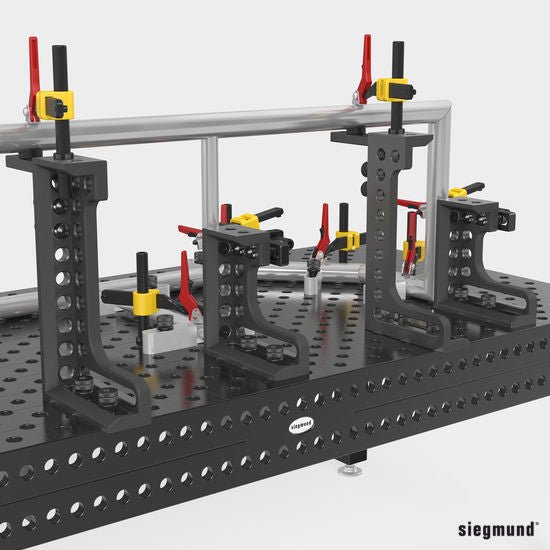

The Stop and Clamping Square 300 GK Left provides secure positioning for heavy-duty welding and fabrication tasks. It functions as a stable right-angle stop, serves as a table extension, and offers multiple clamping surfaces due to its three-dimensional design. Its left-hand orientation is ideal when paired with the right-hand model, ensuring precision and stability when working with large or complex assemblies.
