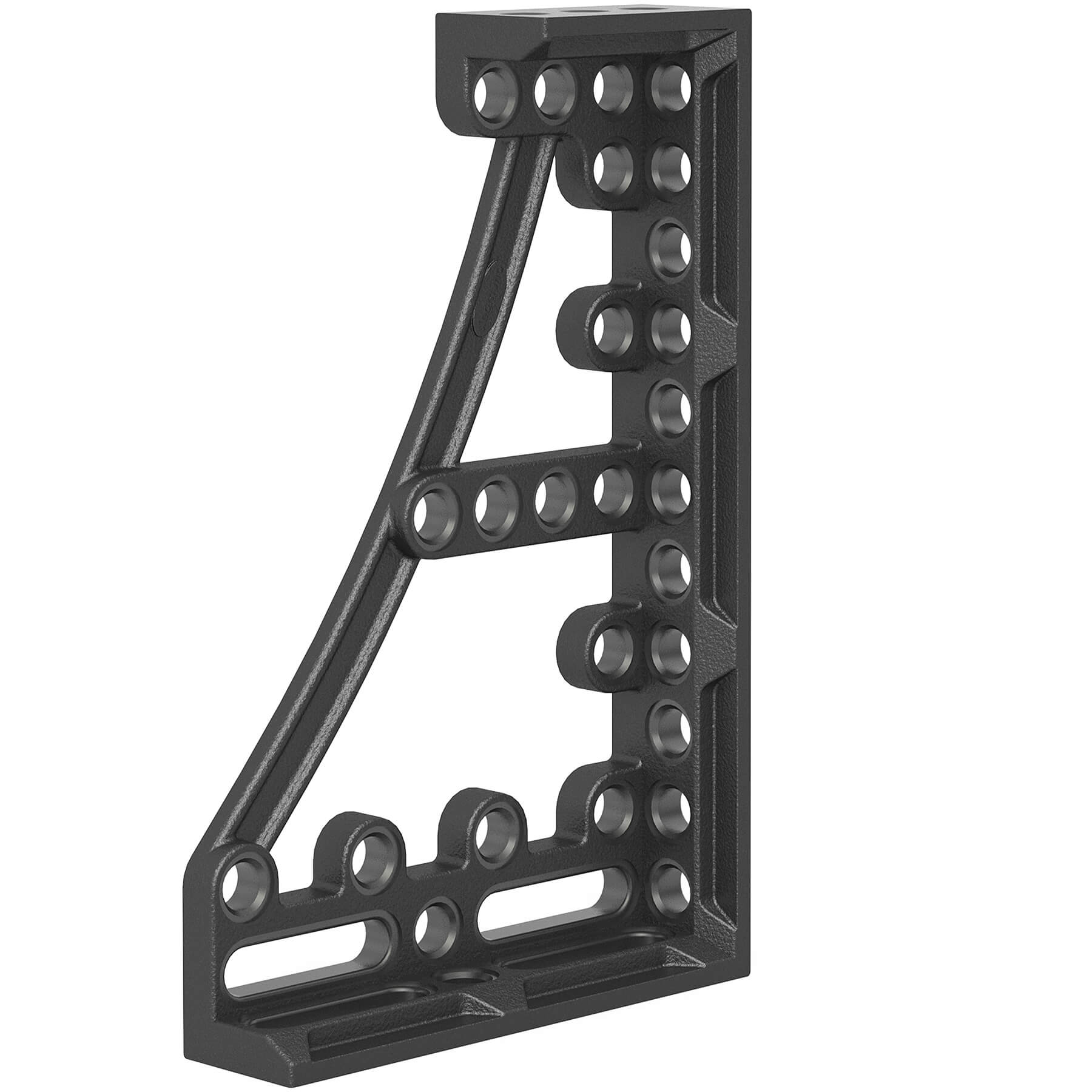

The SiegmundStop and Clamping Square 600 GK Left Nitrided provides superior stability and versatility for large-scale welding and fixturing. Its three-dimensional design expands clamping options while supporting heavy components with precision. Built from GGG40 ductile cast iron and nitrided for durability, it serves both as a stop and a reliable table extension in demanding shop environments.
- Supports three-dimensional clamping for complex setups.
- Functions as both a stop and a table extension.
- Constructed from GGG40 ductile cast iron for strength.
- Nitrided finish increases wear and corrosion resistance.
- Left-side orientation with integrated fine scale.
- Recommended for use in pairs for maximum stability.
Key Features:
- Stable support for heavy and oversized workpieces.
- Durable nitrided finish extends service life.
- Versatile design for stop and extension applications.
- Left-oriented with precise fine scale.
- Engineered for Siegmund System 28 Metric Series compatibility.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 376mm (14.80" Inches)
- Width: 95mm (3.74" Inches)
- Height: 600mm (23.62" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 49.60 lbs. (22.5 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

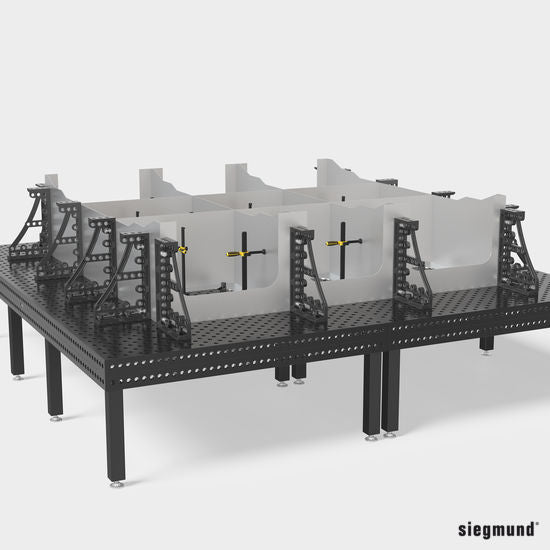

This Stop and Clamping Square is used for holding and aligning large, heavy workpieces during welding and assembly on Siegmund System 28 Metric Series tables. It doubles as a table extension, providing additional surface support while ensuring precise positioning in three-dimensional clamping setups. Its ductile cast iron construction and nitrided finish guarantee reliability in high-demand fabrication environments.
