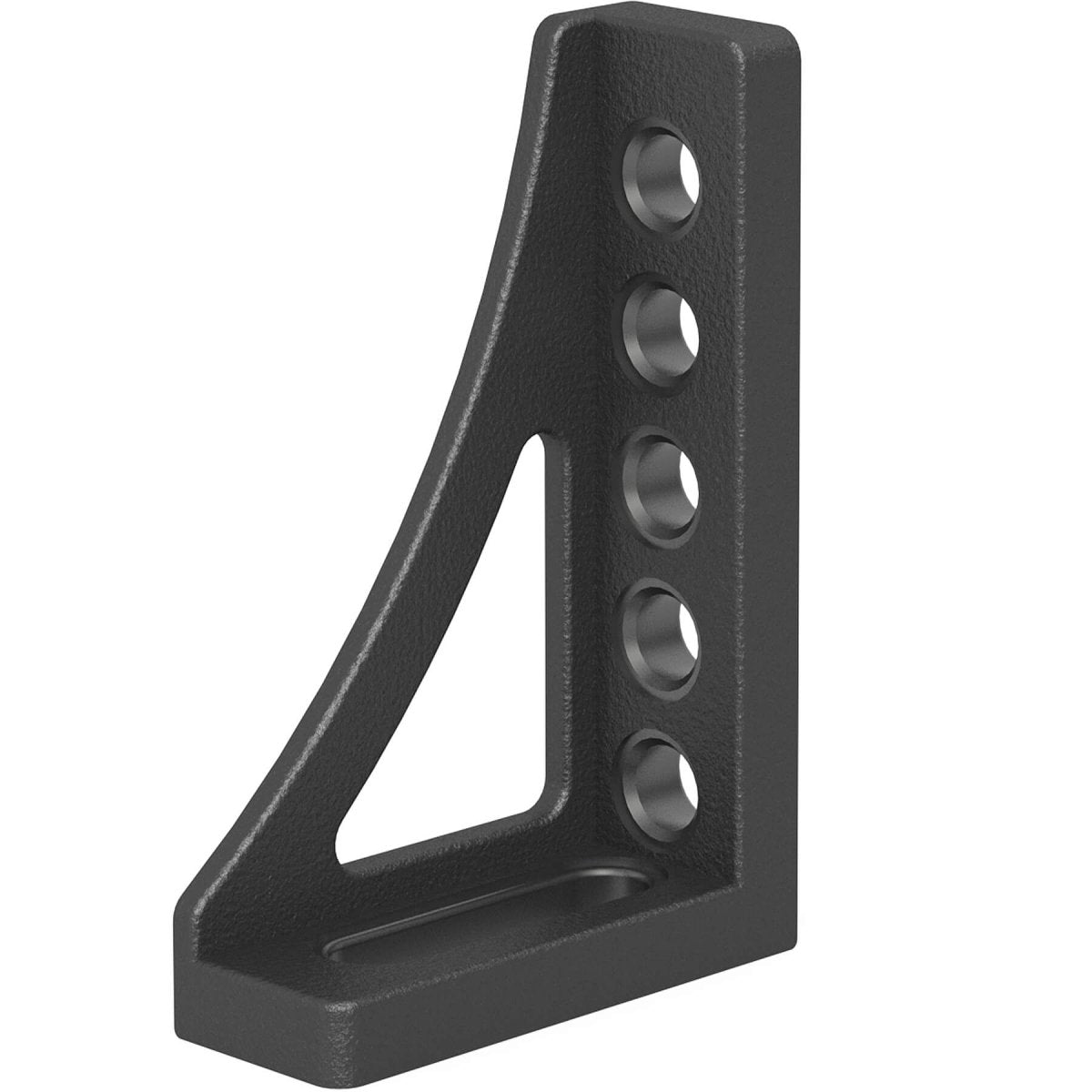

The Siegmund Stop and Clamping Square 300 G is a heavy-duty fixturing element that combines high strength with flexibility in setup. Built from GGG40 ductile cast iron and finished with a nitrided surface, it delivers long-lasting durability and precise alignment in demanding shop conditions.
- Fixed or adjustable use possible with boreholes and elongated slot.
- Robust 27mm material thickness ensures high rigidity.
- Nitrided coating resists welding spatter and corrosion.
- Functions as a table extension or secure right-angle stop.
- Manufactured from premium GGG40 ductile cast iron.
Key Features:
- 300mm height with 200mm length and 75mm width for strong support.
- Combination of boreholes and elongated slot for flexible clamping.
- Nitrided finish improves wear resistance and service life.
- Versatile function as a stop, clamp base, or table extension.
- Optimized for Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 200mm (7.87" Inches)
- Width: 75mm (2.95" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 14.37 lbs. (6.52 kg.)
- Material: GGG40 Ductile Cast Iron
Common Uses:
The Stop and Clamping Square 300 G provides stable positioning for large or heavy components in welding and fabrication. Its strength and accuracy make it effective as both a rigid stop and a flexible adjustment tool, while also serving as a table extension when extra support is needed. This square ensures reliability in precision assembly and production environments.
