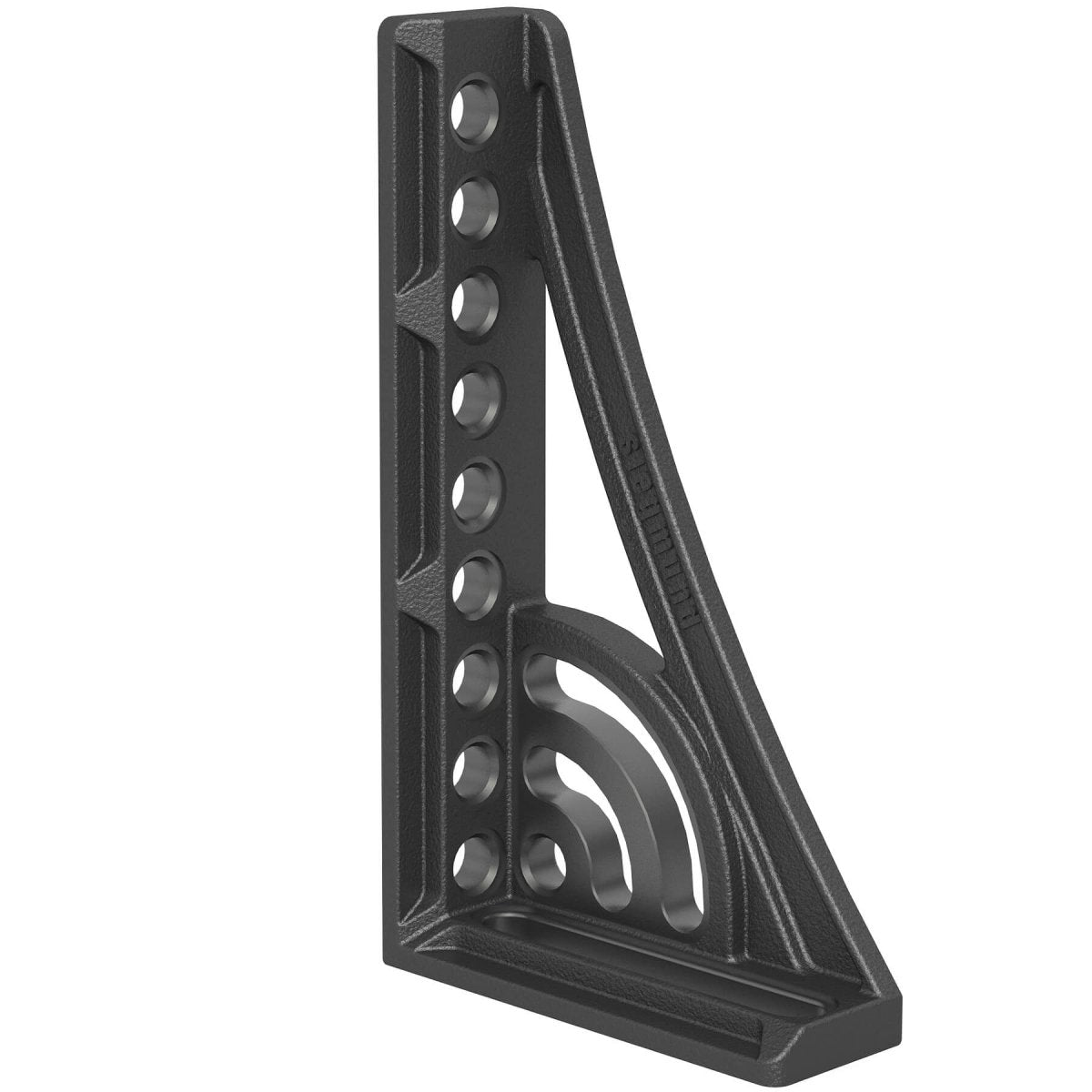

The SiegmundStop and Clamping Square 500 G with Rotation Angle Right Nitrided offers versatile, adjustable positioning for precision welding and fixturing. Its combination of system boreholes and an elongated slot enables variable adjustment, making it suitable for complex setups requiring flexibility and strength. Built from GGG40 ductile cast iron and finished with nitriding, it withstands heavy use while ensuring long service life.
- Supports flexible clamping with boreholes and elongated slot.
- Functions as both a stop and a stable table extension.
- Cast from GGG40 ductile iron for strength and stability.
- Nitrided finish increases wear resistance and durability.
- Right-side orientation with integrated fine scale.
- Recommended for use in pairs for optimal balance.
Key Features:
- Provides adjustable positioning for complex setups.
- Durable cast iron construction with nitrided finish.
- Performs dual roles as stop and table extension.
- Right-oriented stop ensures accurate alignment.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 276mm (10.87" Inches)
- Width: 95mm (3.74" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 27mm (1.06" Inches)
- Weight: 25.35 lbs. (11.5 kg.)
- Material: GGG40 ductile cast iron, nitrided
Common Uses:

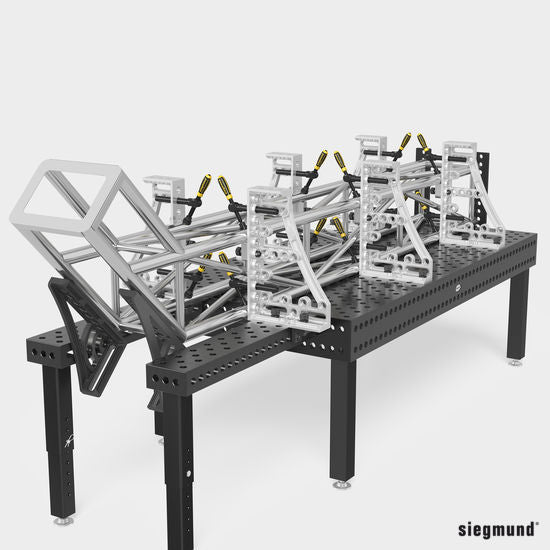

This Stop and Clamping Square provides secure alignment and stable support for heavy components in welding and fabrication setups. Its adjustable boreholes and elongated slot expand clamping flexibility, while the nitrided cast iron body ensures long-term performance. It is widely used in precision applications on Siegmund System 28 Metric Series tables where durability and adaptability are essential.
